15 - Service Point Locations
Introduction
Service Points - Hydraulics

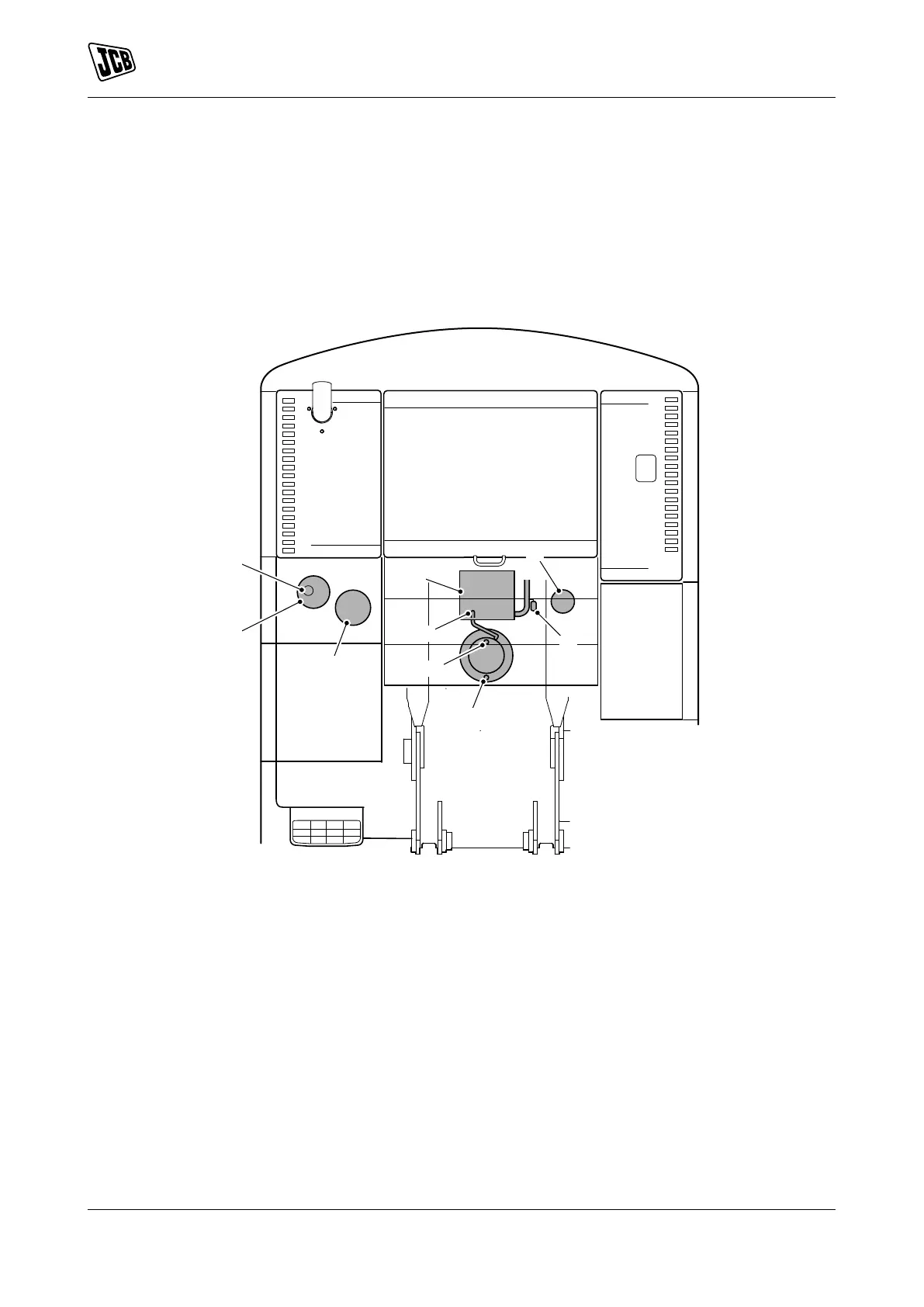

Figure 4. Upper structure
B
A
D
F
E
C
J
G
H
A Breather - hydraulic tank B Cover - suction strainer
C Cover - return filter D Excavator control valve block
E Filter - rockbreaker return line F Filter - in-line (cushion valve)
G Oil level dipstick - slew motor gearbox H Oil filler port - slew motor gearbox
J Oil drain plug - slew motor gearbox (access
from below the machine)
