Service Points - Engine

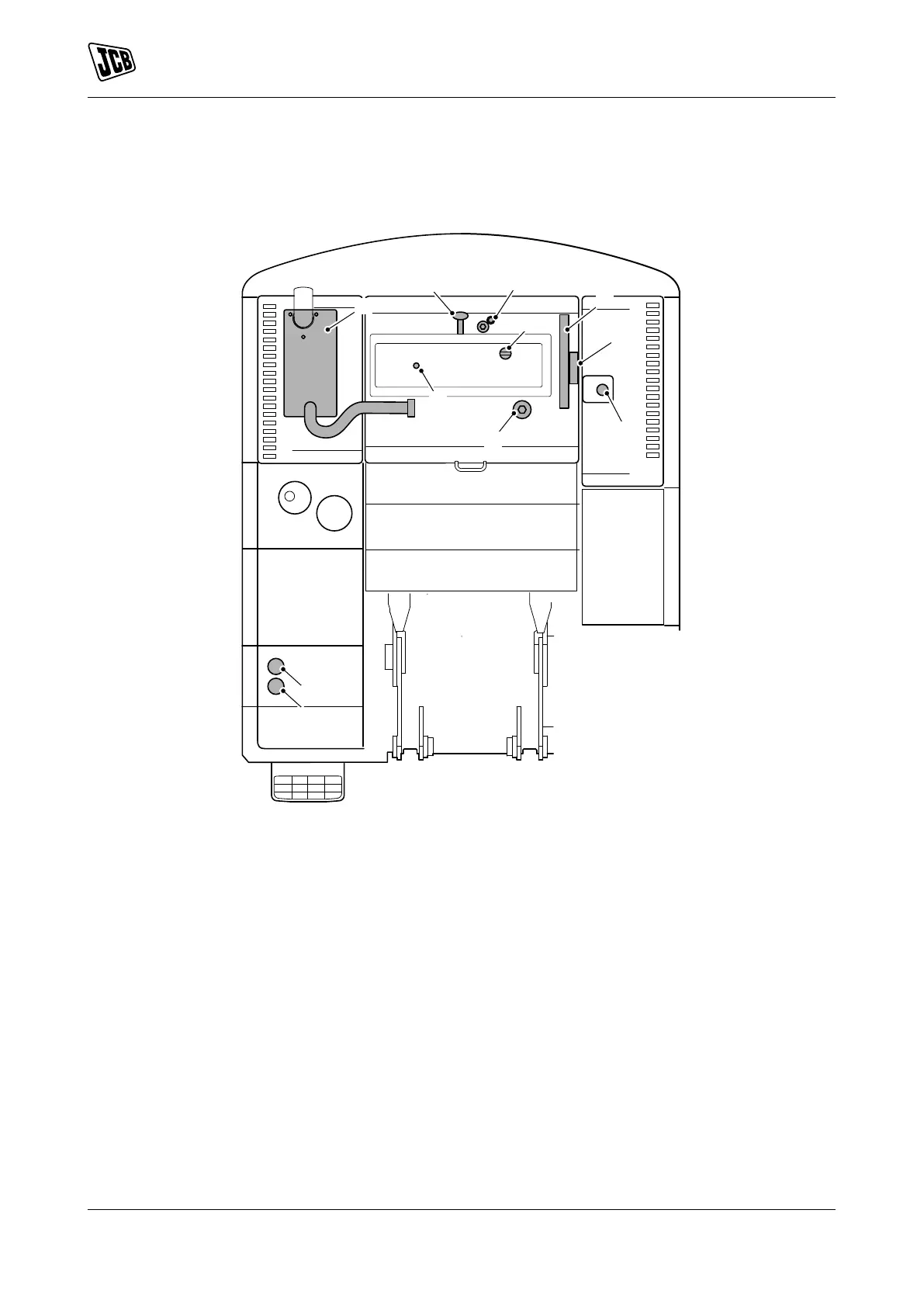

Figure 6. Upper structure
A
D
F
G
C
E
B
H
K
L
J
A Exhaust system B Engine oil level dip stick
C Fuel filters D FEAD (Front End Accessory Drive) belt
E Engine oil filler port F Coolant expansion bottle
G Fan Belt H Engine oil drain point (access from below the
machine)
J Engine oil filter K DEF (Diesel Exhaust Fluid) tank filler
L DEF tank drain point (access from below the
machine)
