About the Product
Description
7
9831/1
100-6
7

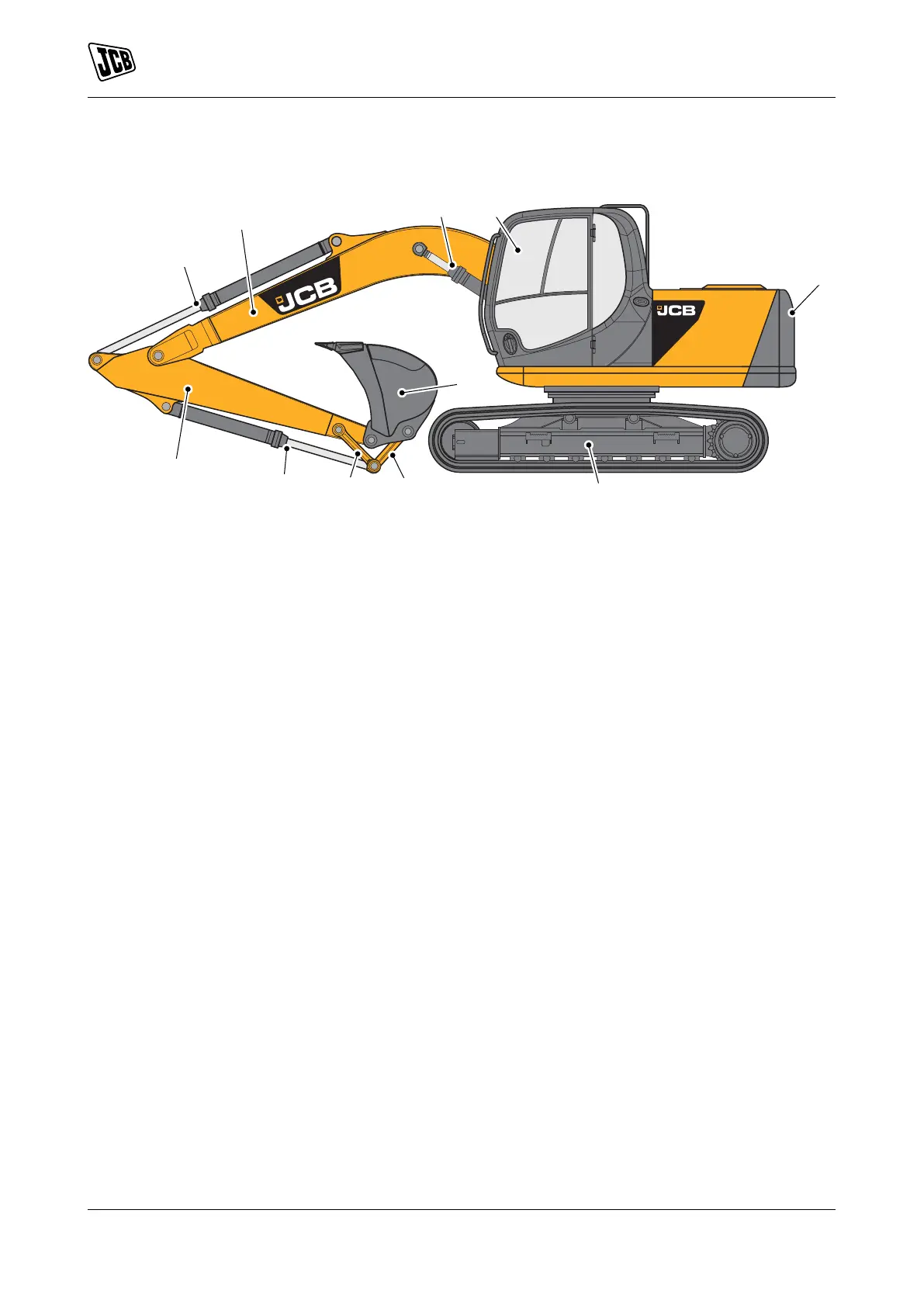

Main Component Locations
Figure 3.
D
C
B
A
E
F
G
H
J
K
L
A
Bucket
B
Bucket link
C
Bucket ram
D
Dipper
E
Dipper link
F
Dipper ram
G
Boom
H
Boom ram
J
Operators cab
K
Counterweight
L
Undercarriage
The boom dipper and bucket are collectively referred to as the excavator end, or dig end.
17
19
Table of Contents
Table of Contents
4
Acronyms Glossary
11
Introduction
12
About this Manual
12
Model and Serial Number
12
Using the Manual
12
Left-Hand Side, Right-Hand Side
12
Cross References
12
Safety
13
Safety - Yours and Others
13
Safety Warnings
13
General Safety
14
Clothing and Personal Protective Equipment (PPE)
15
About the Product
16
Introduction
16
General
16
Name and Address of the Manufacturer
16
Product Compliance
16
Description
17
General
17
Intended Use
17
Log Moving/Object Handling
17
Optional Equipment and Attachments
17
Danger Zone
17
Main Component Locations
18
Product and Component Identification
19
Machine
19
Engine
20
Operator Protective Structure
21
Safety Labels
23
General
23
Safety Label Identification
23
Operator Station
26
Component Locations
26
Interior Switches
27
Ignition Switch
27
Cab Interior Light
27
Console Switches
29
General
29
Work Lights
29
Beacon
29
Seat Heater
29
Seat Ventilation
30
Control Locks
30
Excavator Arm Quickhitch
30
Radio Mute
30
Engine Stop Switch
30
Manual Regeneration
30
Slew Lock
30
