4
ELECTRICAL SAFETY
Warning: Read these safety instructions carefully
before connecting the jigsaw to the mains supply.
Make sure that the voltage of the electricity supply
is the same as that indicated on the rating plate on
the jigsaw.
Warning: No connection should be made to the Earth
terminal of the plug. A 5 amp fuse must be fitted.
This jigsaw is designed to operate on 230VAC 50 Hz.
Connecting it to any other power source may cause
damage to the tool. Do not allow this jigsaw to be
exposed to rain, or moisture.

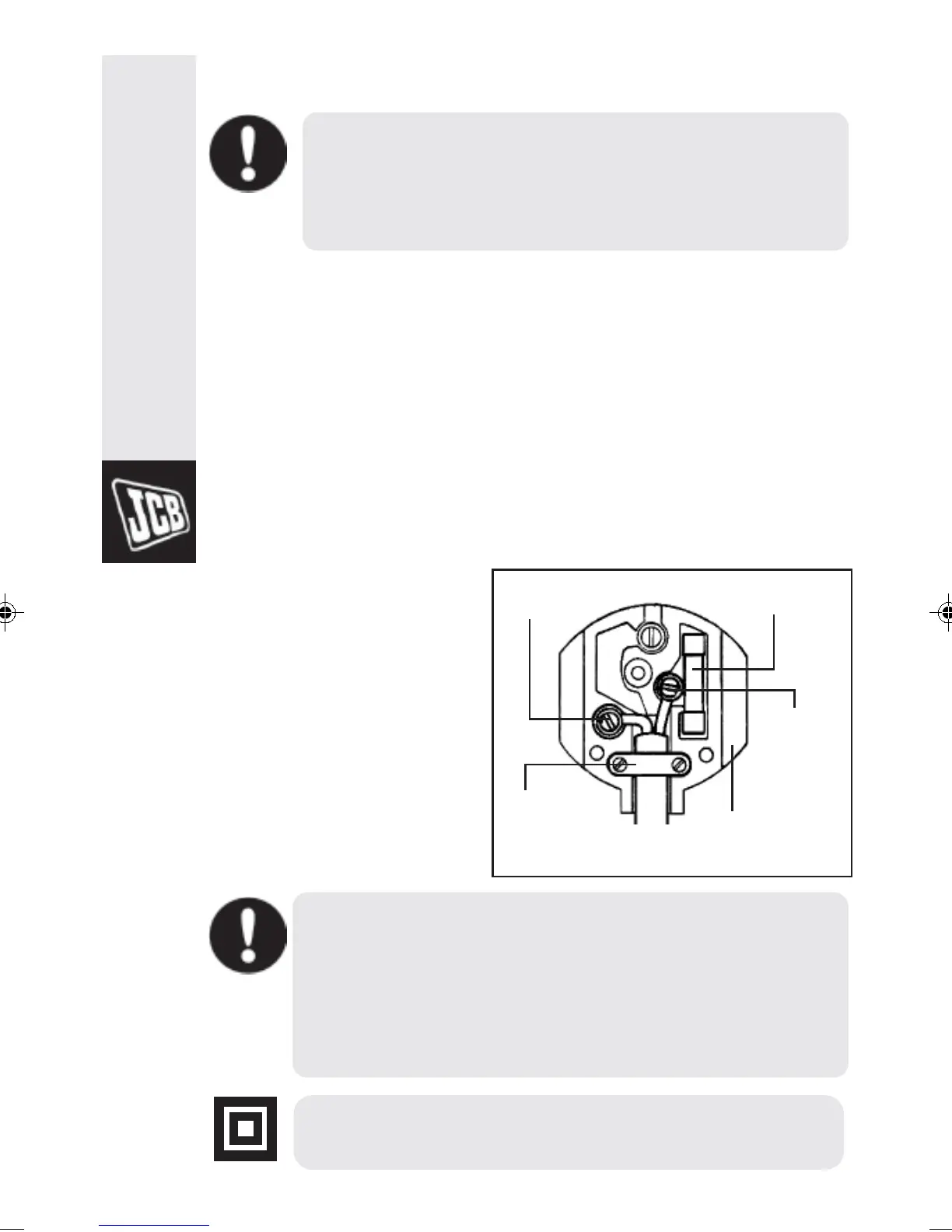

This symbol indicates that this tool is Double
Insulated and does not require an Earth connection.
Connect Blue
to N (neutral)
Fit the
recommended
fuse
Make sure that
the outer sheath
of the cable is
held by the clamp
Connect
Brown to
L (live)
Mains plug made
to BS1363/A
requirements
This jigsaw may be fitted with a non-rewireable plug. If it becomes
necessary to change the fuse in the plug, the fuse cover must be
refitted. If the fuse cover is lost or damaged, the plug must not be
used until a suitable replacement is fitted. If the plug has to be
changed because it is not suitable for your socket, or becomes
damaged, it should be cut off and an appropriate plug fitted,
following the wiring instructions shown below. The plug that is
removed must be disposed of safely. Insertion into a 13 amp socket
could cause an electrical hazard.
The wires in the mains lead are coloured in accordance with
the following code:- Blue = neutral; Brown = live.
If the colours of the wires in
the mains lead of the jigsaw,
do not correspond with the
markings on the terminals
of your plug, proceed as
follows.
The blue wire must be
connected to the terminal
marked N, or coloured black.
The brown wire must be
connected to the terminal
marked L, or coloured red.
