Section 1 - General Information
Service Tools
Tool Detail Reference Section B - Body and Framework
1 - 12
9803-6530
1 - 12

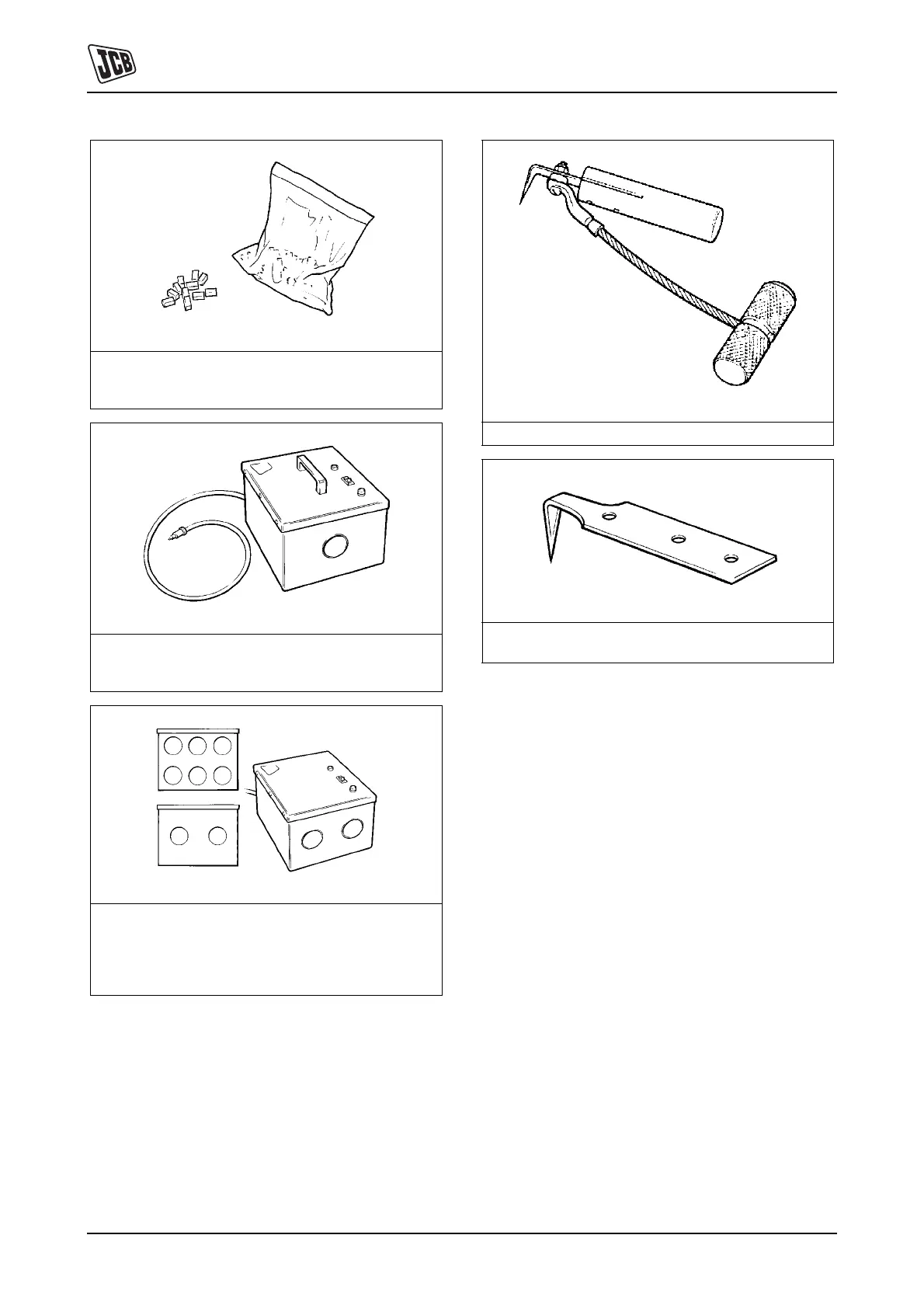

Fig 11. 926/15500
Note: - (unit quantity = 500 off) used to provide the
correct set clearance between glass edge and cab
frame.
Fig 12. 992/12300
Note: - 1 cartridge capacity - required to pre-heat
adhesive prior to use. It is fitted with a male plug (703/
23201) which fits into a female socket (715/04300).
Fig 13.
Note: -available with 2 or 6 cartridge capacity ( 992/
12400 - 2 Cartridge x 240V, 992/12600 - 6 Cartridge x
240V) - required to pre-heat adhesive prior to use. No
plug supplied. 110V models available upon request -
contact JCB Technical Service.
Fig 14. 992/12800
Note: - used to remove broken glass.
Fig 15. 992/12801
Note: - (unit quantity = 5 off) 25 mm (1 in) cut -
replacement blades for cut-out knife (above)..
