Section 1 - General Information
Service Tools
Tool Detail Reference Section E- Hydraulics
1 - 20
9803-6530
1 - 20

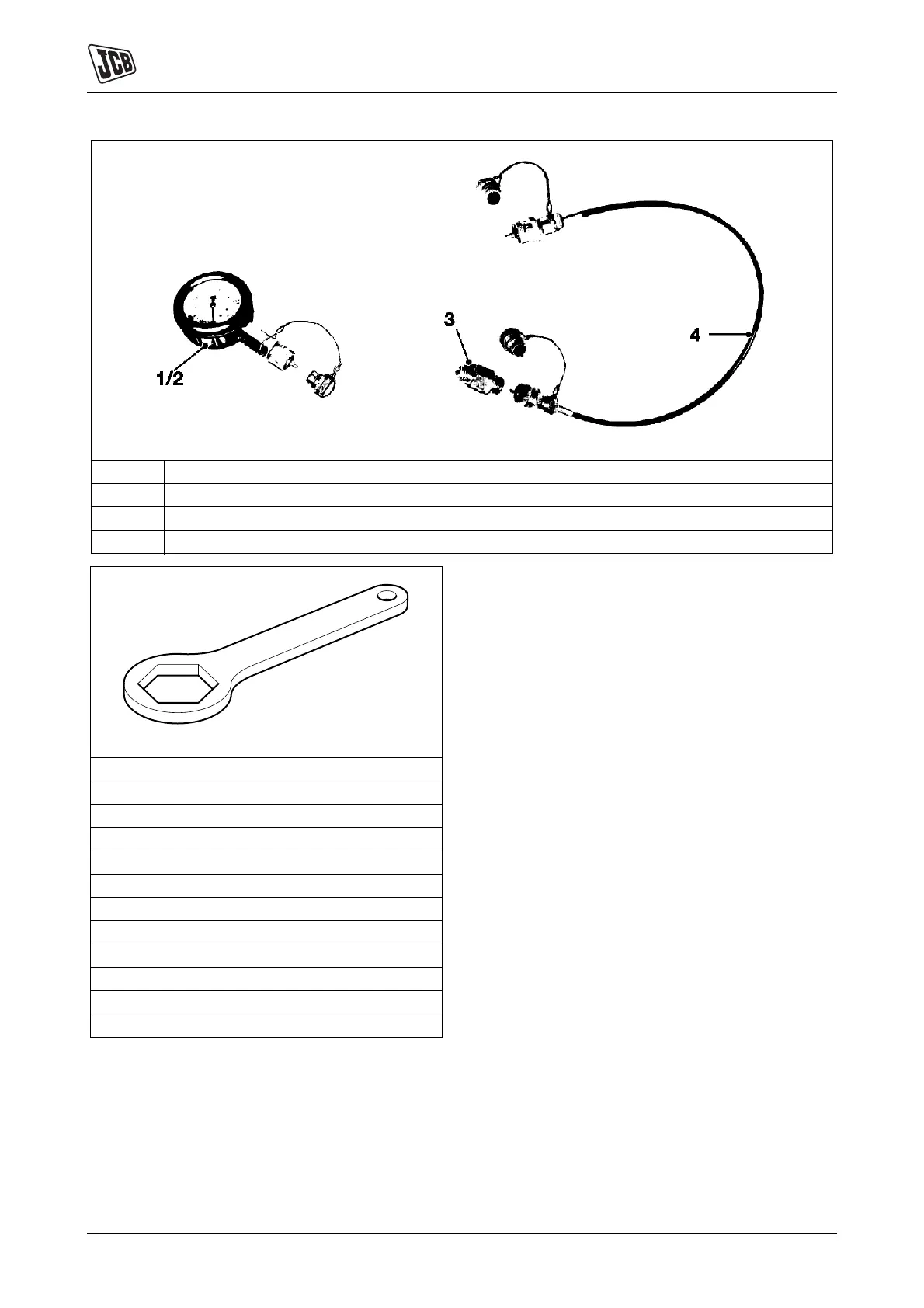

Fig 27. Hydraulic Pressure Test Gauges and Connections
1 892/00279 Pressure Gauge 0-400 bar (0-6000 lbf/in2)
2 892/00346 Pressure Gauge 0-70 bar (0-1000 lbf/in2)
3 892/00347 Connector
4 892/00254 Hose
Fig 28. Ram Piston Nut Removal/Fitting Spanner
993/99512Spanner 55 mm A/F
993/99513Spanner 60 mm A/F
993/99514Spanner 65 mm A/F
993/99515Spanner 70 mm A/F
993/99516Spanner 75 mm A/F
993/99517Spanner 85 mm A/F
993/99518Spanner 90 mm A/F
993/99519Spanner 100 mm A/F
993/99520Spanner 110 mm A/F
993/99521Spanner 115 mm A/F
SSP0046Spanner 80 mm A/F
SSP0047Spanner 95 mm A/F
JS07050
