Section 1 - General Information
Service Tools
Tool Detail Reference Section E- Hydraulics
1 - 19
9803-6530
1 - 19

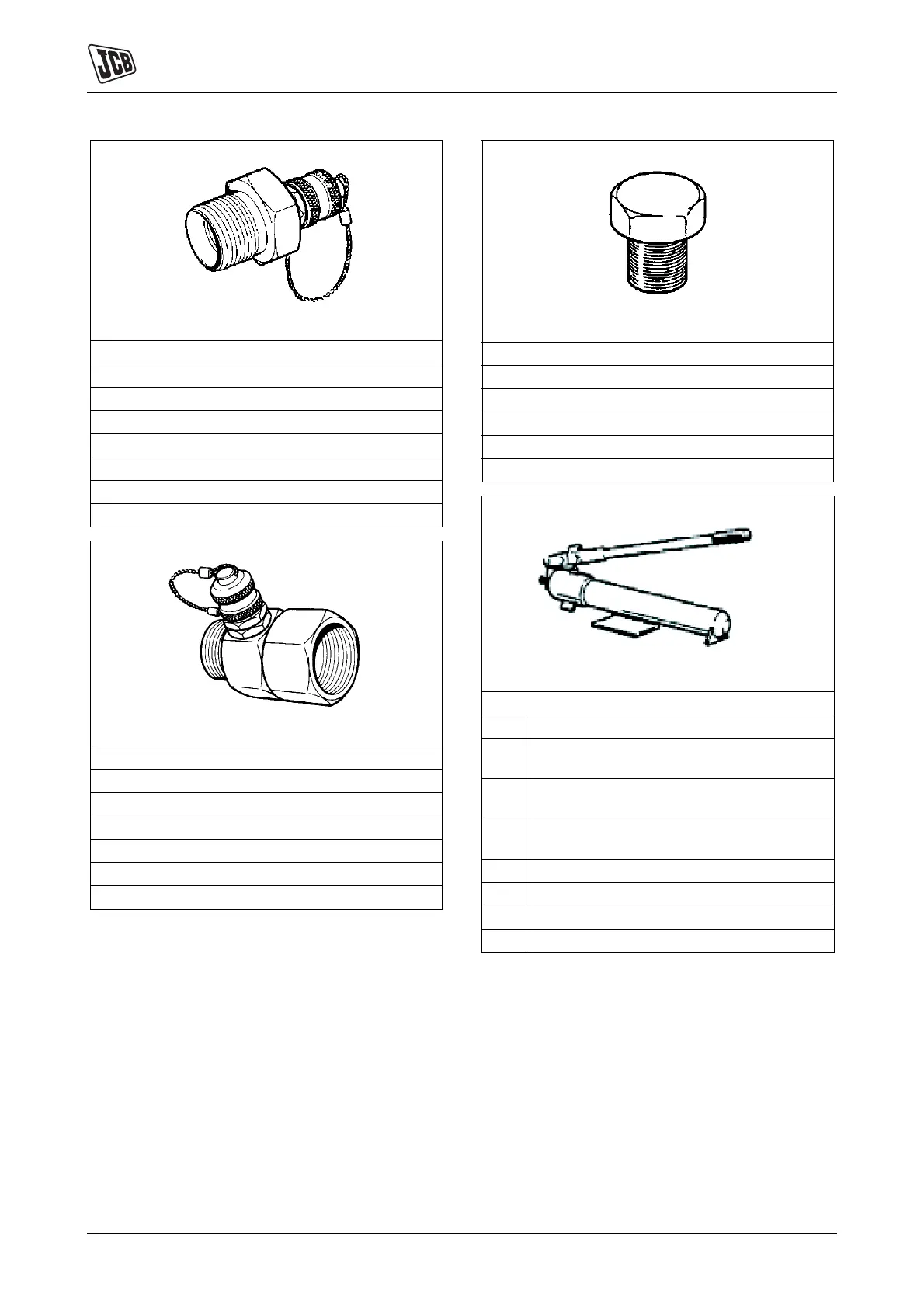

Fig 23. Pressure Test Adapters
892/00255 1/4 in BSP x Test Point
892/00256 3/8 in BSP x Test Point
892/00257 1/2 in BSP x Test Point
892/00258 5/8 in BSP x Test Point
816/15118 3/4 in BSP x Test Point
892/00259 1 in BSP x Test Point
892/00260 1,1/4 in BSP x Test Point
892/00261 5/8 in UNF x Test Point
Fig 24. Pressure Test ‘T’ Adapters
892/00262 1/4 in BSP x 1/4 in F BSP x Test Point
816/55040 1/2 in BSP x 1/2 in F BSP x Test Point
892/00263 5/8 in BSP x 5/8 in F BSP x Test Point
892/00264 3/4 in BSP x 3/4 in F BSP x Test Point
892/00265 1 in M BSP x 1 in F BSP x Test Point
892/00266 1,1/4 in M BSP x 1,1/4 in F BSP x Test Point
892/00267 1,1/2 in M BSP x 1,1/2 in F BSP x Test Point
Fig 25. Female Cone Blanking Plug
892/00055 - 1/4 in BSP
892/00056 - 3/8 in BSP
892/00057 - 1/2 in BSP
892/00058 - 5/8 in BSP
892/00059 - 3/4 in BSP
892/00060 - 1 in BSP
Fig 26. 892/00223
Note: Components listed below also required
Item Description
1 892/00137 Micro-bore Hose 1/4 in BSP x 5
metres
2 892/00274 Adapter 1/4 in M BSP x 3/8 in M BSP
Tap e r
3 892/00262 1/4 in M BSP x 1/4 in F BSP x Test
Point
4 892/00706 Test Probe
5 892/00278 Gauge 0 - 40 bar (0 - 600 lb/in2)
6 892/00279 Gauge 0 - 400 bar (0 - 6000 lb/in2)
7 892/00280 Gauge 0 - 600 bar (0 - 8500 lb/in2)
