jcb JZ140 ZT

Section 1 - General Information
Service Tools
Tool Detail Reference Section E- Hydraulics
1 - 18
9803-6530
1 - 18
Tool Detail Reference Section E- Hydraulics
Note: Not all service tools are illustrated. Illustrations are
shown in tool number order.

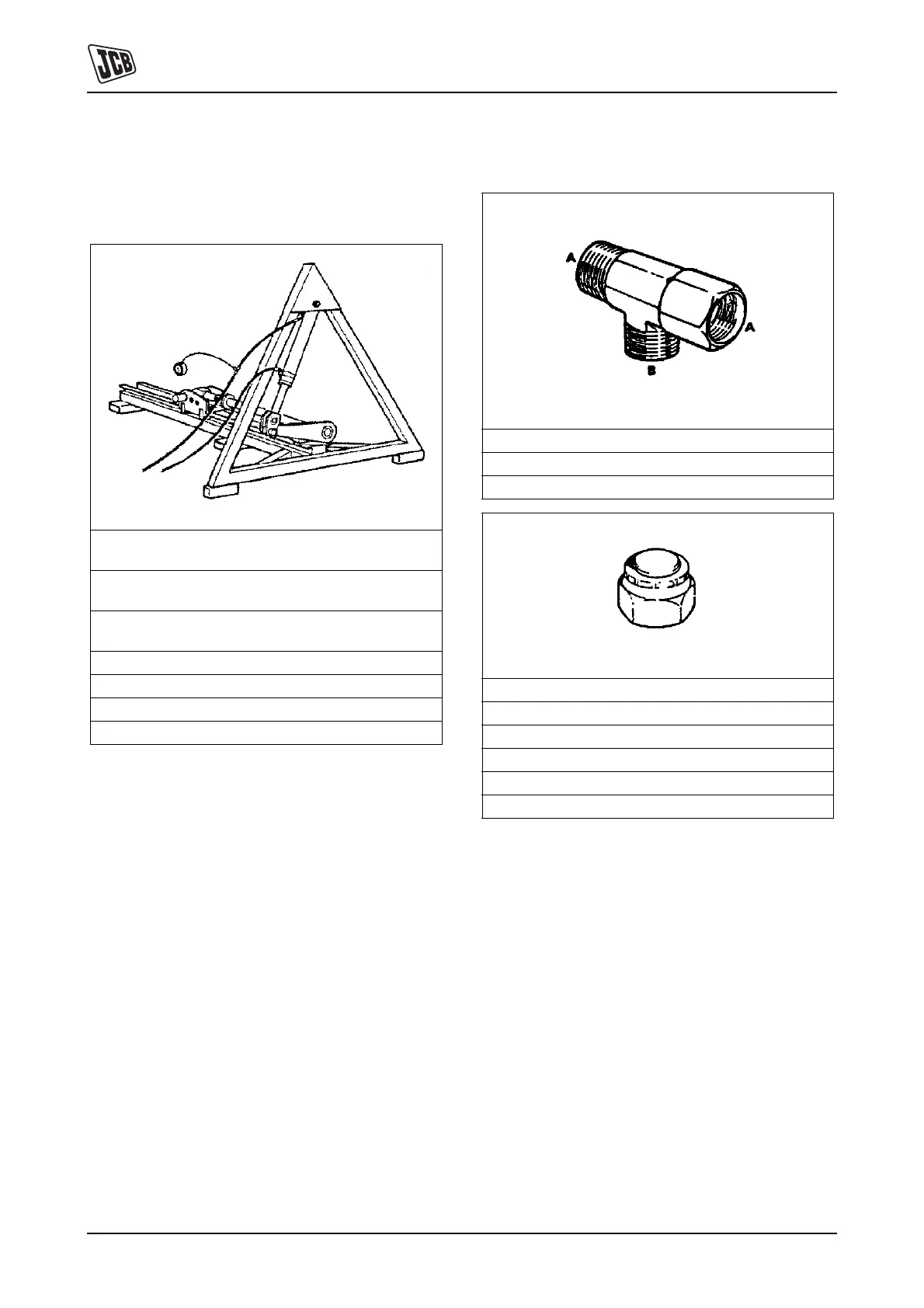

Fig 20. Ram Piston Nut Removal/Fitting Rig
993/99525 Rig Assembly (not including spanners and
ram)
993/99522 Anchor Side Plate (supplied loose
unwelded)
993/99523 Anchor Cross Member (supplied loose
unwelded)
993/99524 Ram Eye End Modification Plate Assembly
556/43400 Lift Ram
545/18000 Lynch Pin
811/50232 1,1/4” Pivot Pin
Fig 21. ‘T’ Adapter
816/50005 ‘T’ adapter 1/2 in BSP (A) x 1/2 in BSP (B)
816/60096 ‘T’ adapter 3/4 in BSP (A) x 3/4 in BSP (B)
816/00018 ‘T’ adapter 1 in BSP (A) x 1 in BSP (B)
Fig 22. Male Cone Blanking Plug
816/00294 - 1/4 in BSP
816/00189 - 3/8 in BSP
816/00190 - 1/2 in BSP
816/00197 - 5/8 in BSP
816/00196 - 3/4 in BSP
816/00193 - 1 in BSP
