Section 1 - General Information
Torque Settings
Zinc Plated Fasteners (golden finish)
1 - 7
9803-6530
1 - 7
Metric - All Internal Hexagon Headed
Cap Screws

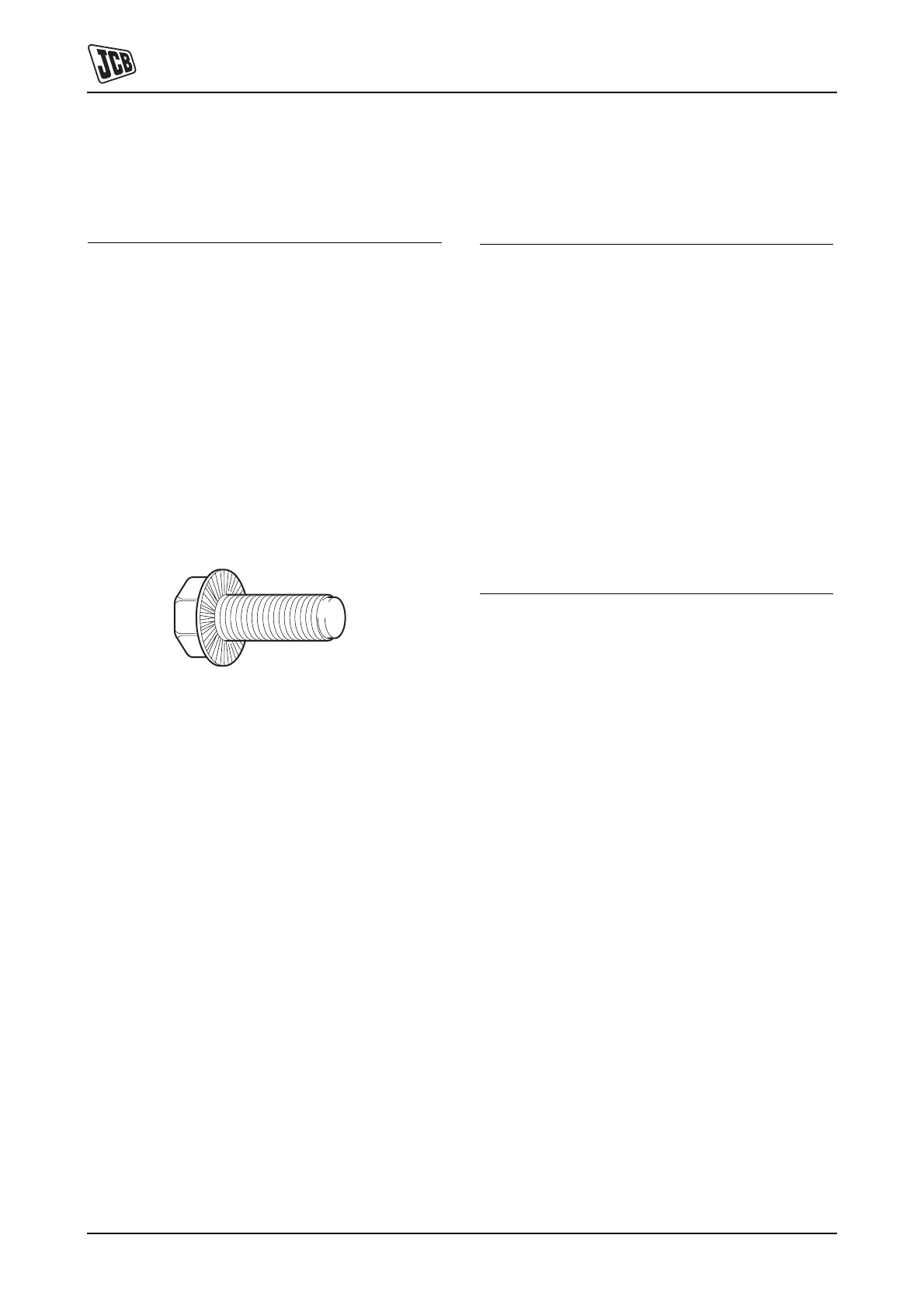

Verbs Ripp Bolts
Fig 1.
Torque settings for these bolts are determined by the
application. Refer to the relevant procedure for the
required settings.
Hydraulic Hose to Adapter Connections
Hydraulic Adapter into Component
Connections with bonded washers
Diameter Torque Settings
mm Nm kgf m lbf ft
M3 2 0.2 1.5
M4 6 0.6 4.5
M5 11 1.1 8
M6 19 1.9 14
M8 46 4.7 34
M10 91 9.3 67
M12 159 16.2 117
M16 395 40 292
M18 550 56 406
M20 770 79 568
M24 1332 136 983
A34378
BSP Size Nm kgf m lbf ft
(inches)
1/8 14 1.4 10
1/4 24 2.5 18
3/8 33 3.3 24
1/2 44 4.8 35
5/8 58 6.0 43
3/4 84 8.6 62
1 115 11.8 85
1 1/2 244 24.9 180
BSP Size Nm kgf m lbf ft
(inches)
1/8 20 2.1 15
1/4 34 3.4 25
3/8 75 7.6 55
1/2 102 10.3 75
5/8 122 12.4 90
3/4 183 18.7 135
1 203 20.7 150
1 1/2 305 31 225
