Operation
Working with the Platform
36 9831/3200-3 36

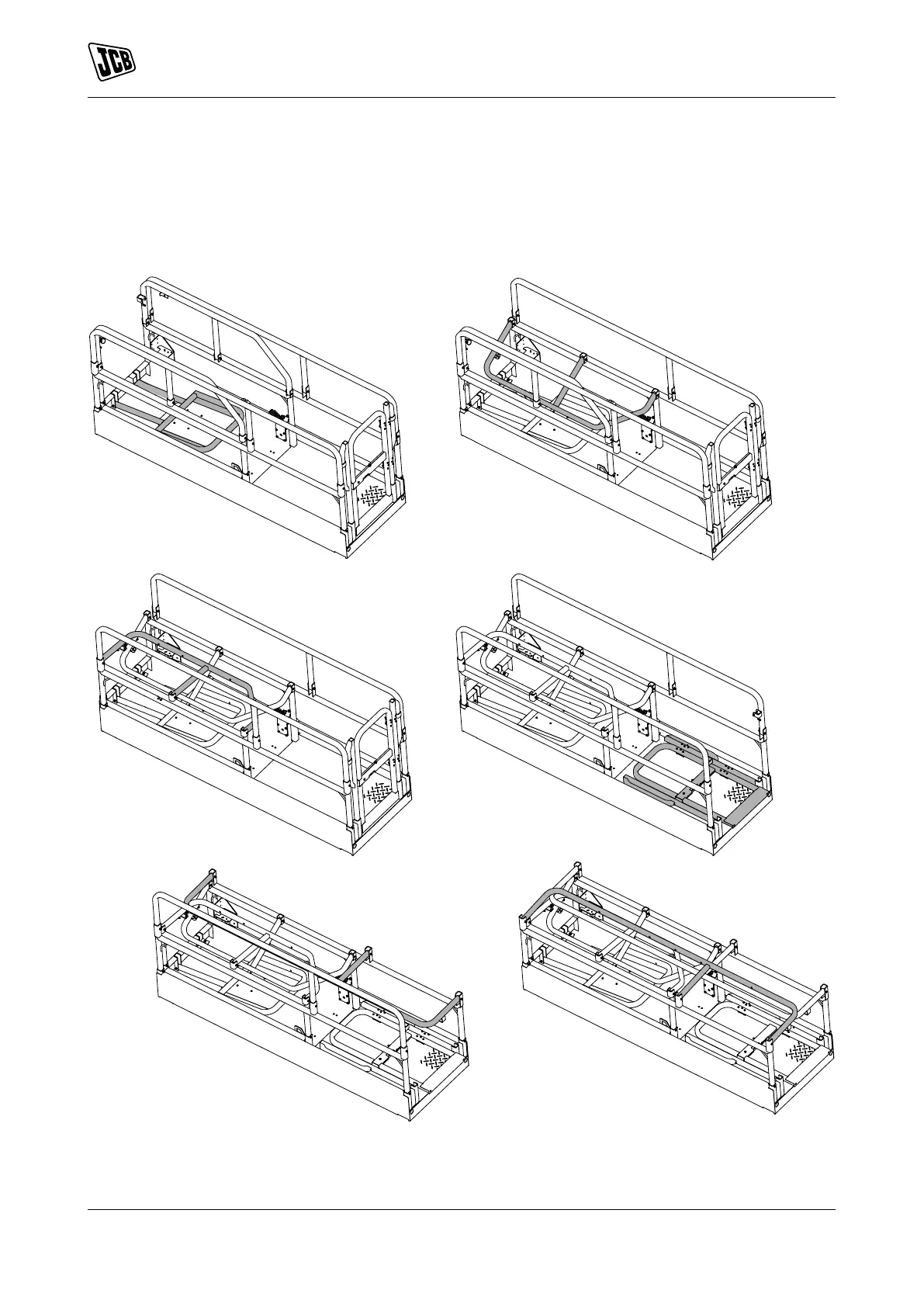

2. Take a firm hold on the top of the guardrail, carefully lower it until it is fully folded. Follow the sequence
of folding order
For unfolding the guardrails, follow the reverse sequence of folding order. Make sure that each lock pin is
installed when guardrails are unfolded.
Figure 26.
1
2
3
4
5
6
