About the Product
Product and Component Identification
12 9821/9300-4 12
• Type and model number
• Serial number
• Direction of rotation.

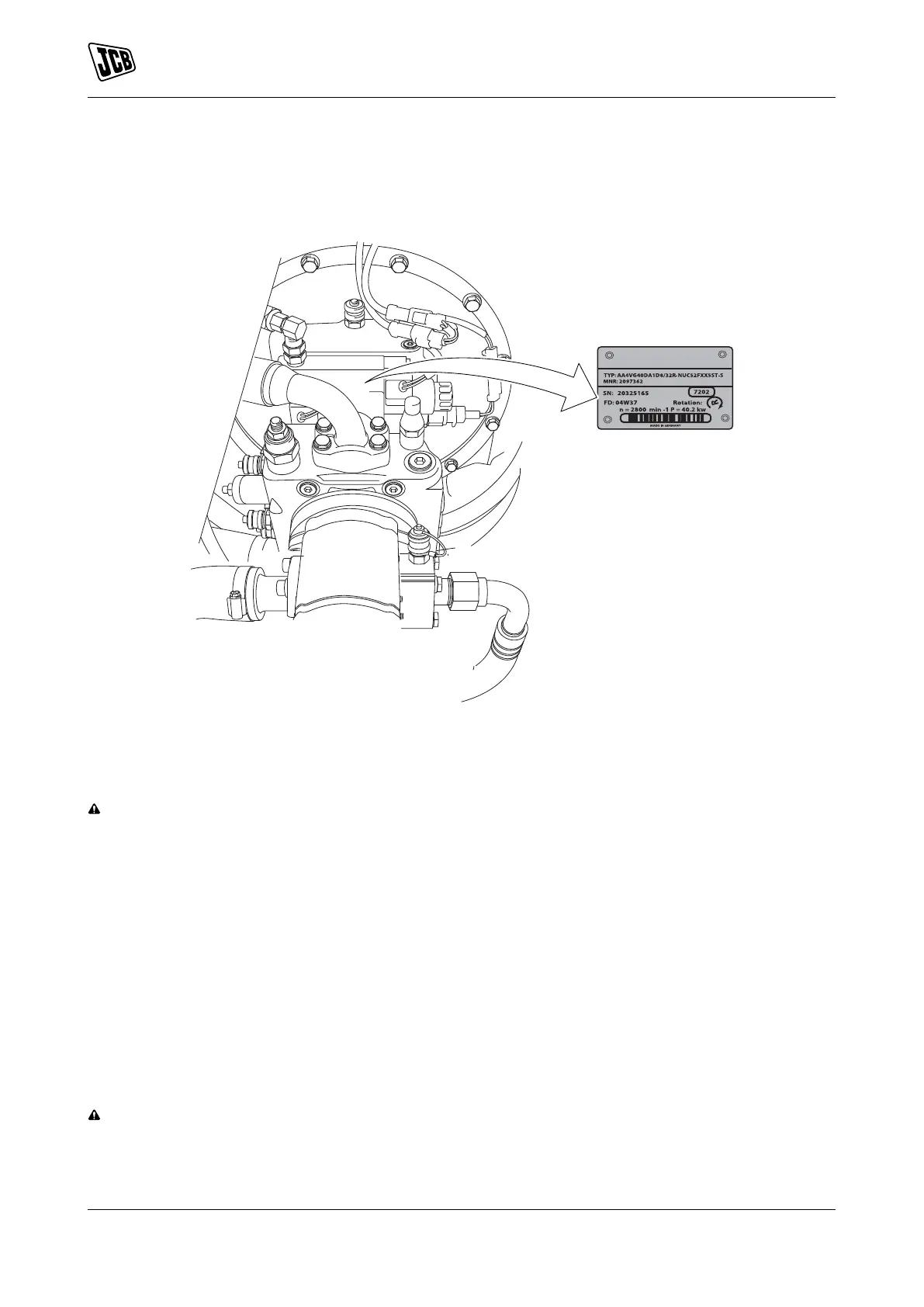

Figure 7. Transmission identification plate
Operator Protective Structure
FOPS Data Plate
WARNING Do not use the machine if the falling objects protection level provided by the structure is not
sufficient for the application. Falling objects can cause serious injury.
If the machine is used in any application where there is a risk of falling objects then a FOPS (Falling Object
Protective Structure) must be installed. For further information contact your JCB Dealer
The FOPS is fitted with a data plate. The data plate indicates what level protection the structure provides.
There are two levels of FOPS
• Level I Impact Protection - impact strength for protection from small falling objects (e.g. bricks, small
concrete blocks, hand tools) encountered in operations such as highway maintenance, landscaping and
other construction site services.
• Level II Impact Protection - impact strength for protection from heavy falling objects (e.g. trees, rocks) for
machines involved in site clearing, overhead demolition or forestry. Refer to Figure 8.
ROPS Data Plate
WARNING You could be killed or seriously injured if you operate a machine with a damaged or missing
ROPS/FOPS/FOGS. If the ROPS/FOPS/FOGS has been in an accident, do not use the machine until the
structure has been renewed. Modifications and repairs that are not approved by the manufacturer may be
dangerous and will invalidate the ROPS/FOPS/FOGS certification.
