JCM EBA-30 User Manual

7 - 25
PC
EBA-32/33
Only
EBA
ON/OFF Switch
To AC power
To serial port
DIP Switch 1 Setting
OFF
12345678
DIP Switch of VM-30
ON
1-ON
2-ON
12
WHEN TO WRITE SERIAL NUMBER
- When you replace the current CPU board with a new EBA-32/33 CPU board, and then install new
ccTalk interface software
(No need to write Serial Number when replacing with EBA-30/31 CPU board, or installing other
interface software)
Note:
* Write your serial number to EEPROM before downloading/installing software, otherwise
communication with host machine cannot be established.
* In case of exchanging the lower sensor board, you do not need to write Serial Number.
* After calibration, you do not need to write Serial Number as the serial number is saved in
Acceptor's memory.
TOOLS NEEDED:
- PC (with serial port)
- VM-30 I/F Test Bench
- Programs:
E10S-100exe and Dosvga.bgi (MS-DOS/Windows98/2000/ME/XP)
(Note: save these two files in the same directory, otherwise E10S-100.exe cannot be started.)
AdjMenu.exe (Windows98/2000/XP)

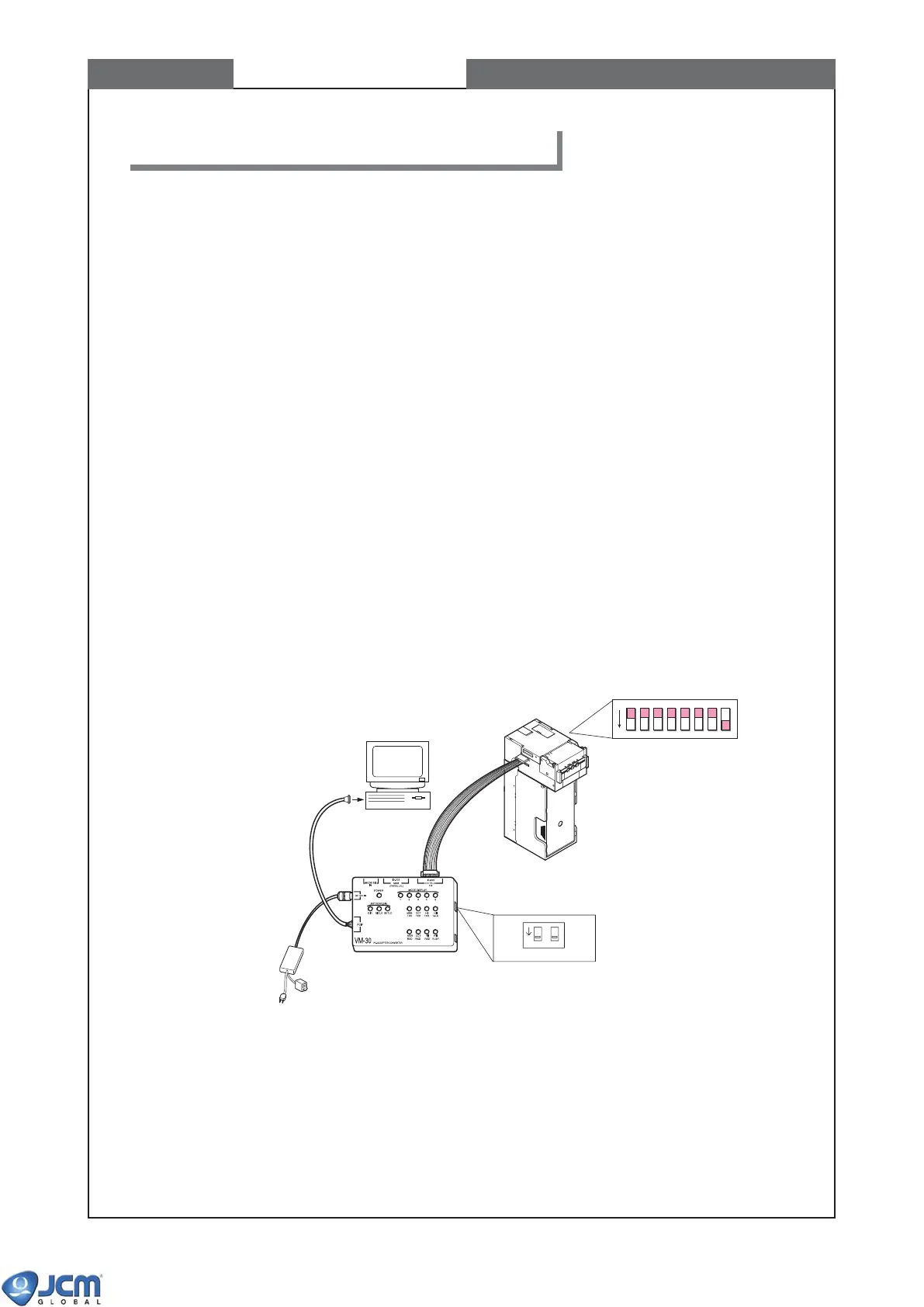

Fig-49
CHAPTER 7 Writing Serial Number
4. Writing Serial Number (for ID-0E3 only)
