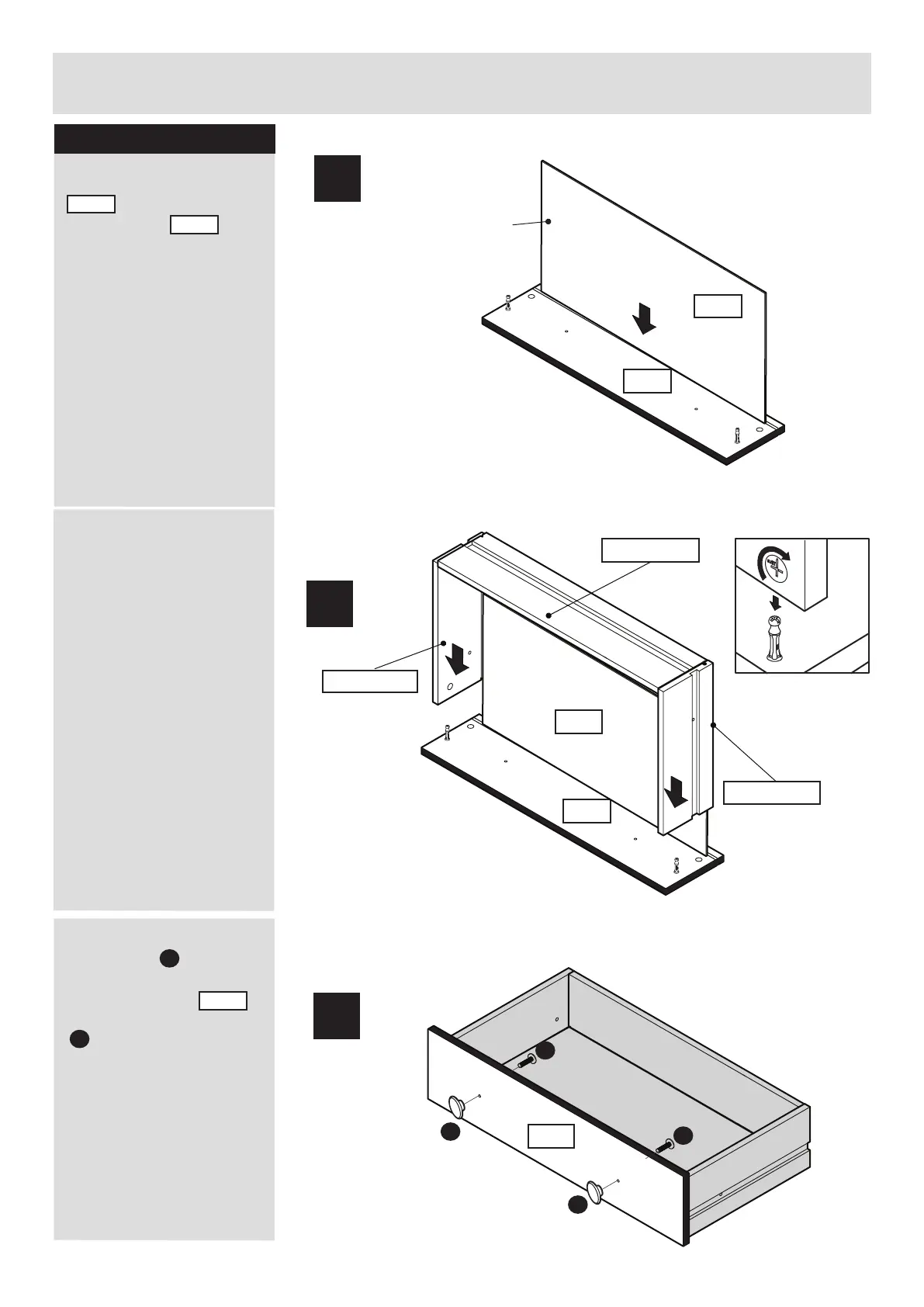

JD Williams Aspen - Drawer Assembly Step 5 (Part 2); Step 5 C: Insert Drawer Bottom; Step 5 D: Connect Drawer Sides and Lock Cams; Step 5 E: Attach Drawer Handles

4717
Assembly Instructions
8
E
E:
M
P
Fit bolts through
the pre-drilled holes in
the drawer front
and connect to the handles
.
Repeat on the remaining
drawers.
M
P
4717
4717
C
C: Sit drawer bottom
into groove on
drawer front .
Ensure foil on the drawer
bottom is facing upwards.
624xx7010
Foil surface facing upwards.
Plain chipboard surface
to underside.
D: Locate grooves in left
and right drawer sides
around the drawer bottom
and slide down, locating
cams already inserted in
left and right drawer sides
onto dowels in drawer
front.
Turn cams 180 degrees
to lock.
D
622xx7002
623xx7002
5671
4717
4717
5671
5671
Step 5 - Continued
M
P
