Jeanneau 57 - General Information

94/148
GENERAL INFORMATION

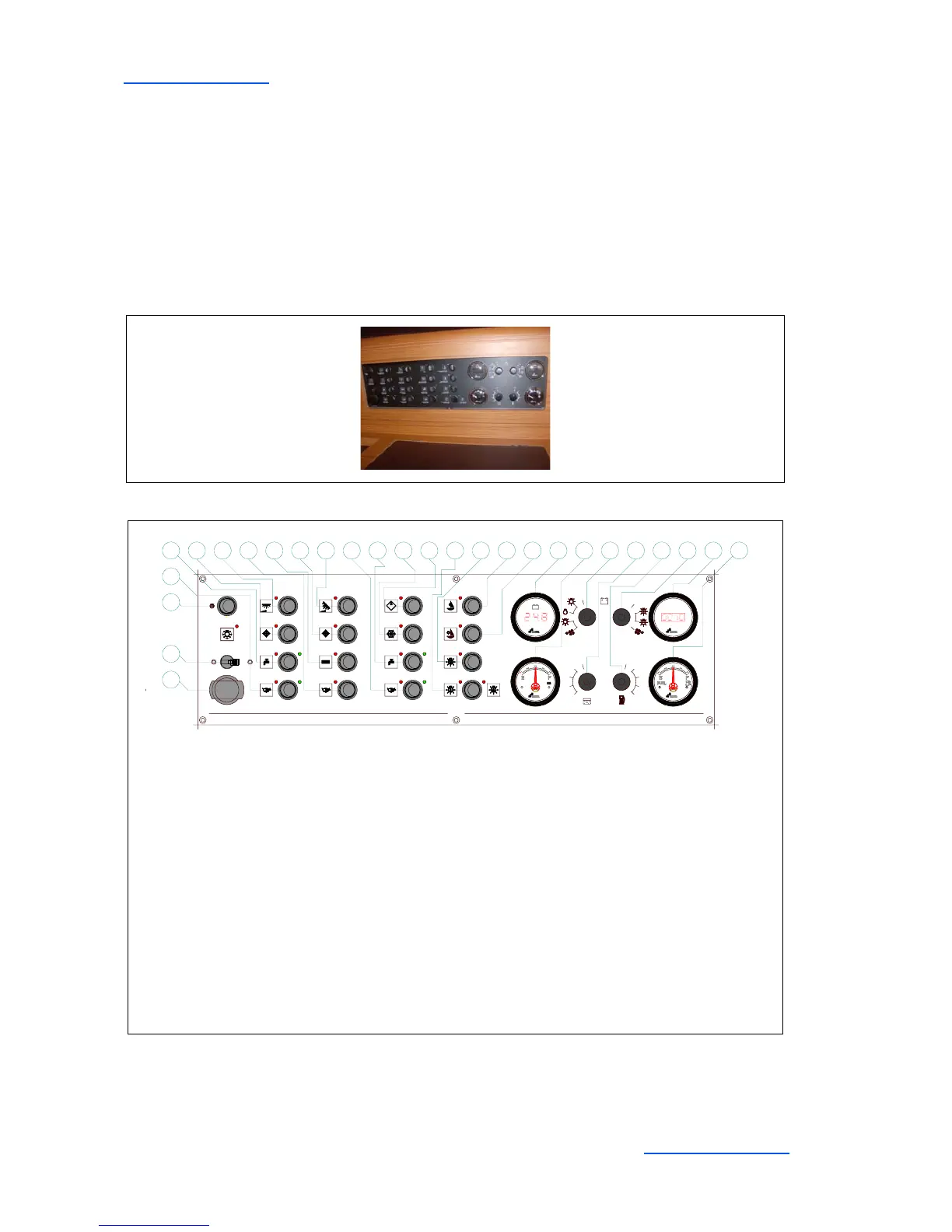

ELECTRICAL PANEL
The electrical switchboard does not require any routine maintenance
. In case an electric
appliance is not energized, check:
- The main power supply (batteries, battery switches).
- The switches and circuit breakers on the line.
- the relevant electrical unit.
1. 12V socket
2. "Interior lighting" general circuit-breaker
3. Switch - Backlighting - Panel
4. Control - Forward bilge pump
5. Control - Water unit
6. Control - Fridge - Galley
7. Control - Saloon lighting 1
8. Control - Bilge pump - Saloon - Auxiliary
9. Control - Freezer - Galley
10. Control - Fridge - Chart table
11. Control - Saloon lighting 2
12. Control - Bilge pump - Principal -
Saloon
13. Control - Pump for deck washing
14. Control - Navigation electronics
15. Control - Solenoid - Gas
16. Control - Navigation lights & Mooring
light
17. Forcing - Steaming light
18. Control - Projector boom bar
19. Control - Deck searchlight
20. Indicator - Voltage
21. Indicator - Water level
22. Master switch - Measurement - Voltage
23. Master switch - Water level measure
24. Master switch - Measurement - Level
Fuel
25. Master switch - Current measurement
26. Display - Current measurement
27. Display - Measurement - Level Fuel
AMP
-
+
V
WATER
2 3
2
1
1
GAS
EXTINT
1
O
F
F
24V
12V
O
F
F
2
3
4
2
3
4
1
OFF
VOLTS
AMPS
O
F
F
AUTO
ON
ON
Scheiber
ON
DC
ON
DC - 1 0AMAX
AUTO
1
2
3
4
5678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
