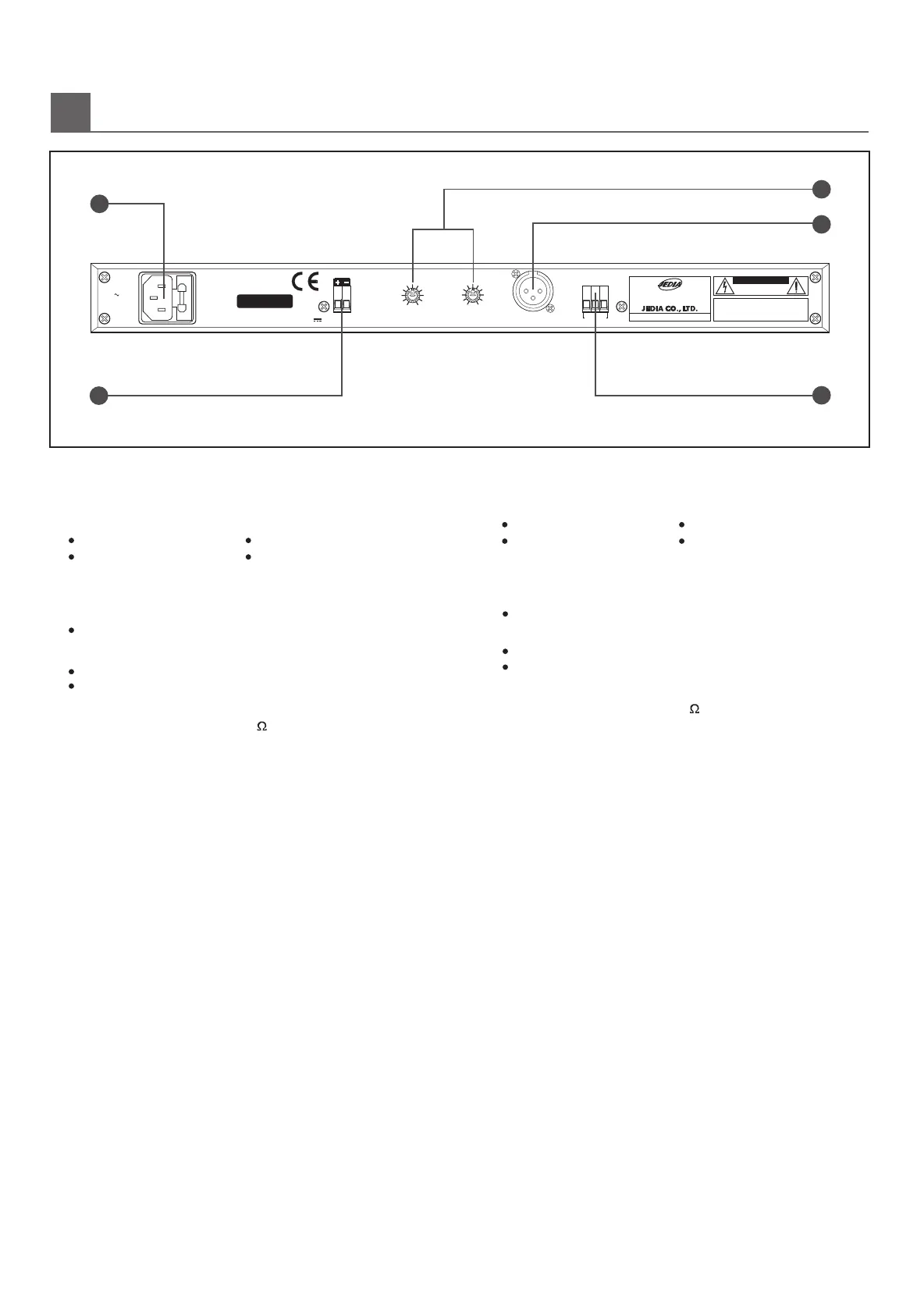

Jedia JCS-110A - Rear Panel Controls

3
1.󰼿AC󰼿INLET
휴즈전원󰼿공습󰼿소켓으로󰼿교류전원󰼿코드를󰼿안전하게󰼿끼운후󰼿전원󰼿스위치를󰼿
켜십시오.
2.󰼿직류전원󰼿입력단자
정전시󰼿비상󰼿전원으로󰼿제품을󰼿운용할󰼿경우󰼿직류󰼿24V전원󰼿단자로󰼿연결할󰼿
󰼿+,-󰼿극성에󰼿주의하십시오.󰼿
챠임,󰼿사이렌󰼿출력󰼿잭으로서󰼿부하󰼿600󰼿󰼿󰼿󰼿이상󰼿사용가능한󰼿바란스󰼿형태이며
신호극성은󰼿2󰼿:󰼿+,󰼿3󰼿:󰼿-,󰼿1󰼿:󰼿GND.󰼿󰼿
3.󰼿음량󰼿조절기
4.󰼿신호󰼿출력󰼿잭
원거리에서󰼿챠임󰼿멜로디를󰼿제어할󰼿수󰼿있는󰼿연결단자󰼿입니다.
5.󰼿챠임󰼿원격제어󰼿단자
1. AC INLET
The ac inlet is the socket to supply the ac power.
You turn on the power switch after plugging the ac cord.
The fuse is built in the socket.
2. DC 24V TERMINAL
This terminal is for connecting the battery input, please confirm the
polarity before connecting.
Signal output jack balanced is 600 load over balanced and signal
polarity is TIP : +, RING : -, SLEEVE : GND.
120V : F0.5AL 250V
4. SIGNAL OUTPUT JACK
You can control chime melody by this terminal from long distance.
5. CHIME REMOTE CONTROL TERMINALS
3. VOLUME CONTROLLERS
R
EAR PANEL CONTROLS (후면기능)
220V : F0.2AL 250V
230V : F0.2AL 250V
FUSE : T1AH 250V
FUSE󰼿:󰼿T1AH󰼿250V
사이렌󰼿:󰼿사이렌󰼿출력󰼿경보음을󰼿조절합니다.
챠󰼿󰼿󰼿임󰼿:󰼿챠임󰼿멜로디󰼿출력음을󰼿조절합니다.
230V : F0.2AL 250V
120V󰼿:󰼿F0.5AL󰼿250V 220V󰼿:󰼿F0.2AL󰼿250V
230V󰼿:󰼿F0.2AL󰼿250V 230V󰼿:󰼿F0.2AL󰼿250V
SIREN : You can adjust siren output by volume controller.
CHIME : You can adjust chime output by volume controller.
CHIME
REMOTE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CHIME & SIREN
MADE IN KOREA
MODEL NO.: JCS-110A
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
CAUTION
010
010
24V MAX 0.08A
CHIME
UP
DOWN
GND
SERIAL NO.:
CAUTION: TO REDUCE THE RISK OF
FIRE REPLACE ONLY WITH SAME TYPE FUSE.
BAL OUTPUT
0.245V 600W
SIREN
DC POWER
230V / 50Hz
MAX 3.5W
FUSE RATING
F0.2AL 250V
USE ONLY WITH A 250V FUSE
1
2
24V MAX 0.08A
3
5
CHIME
REMOTE
4
