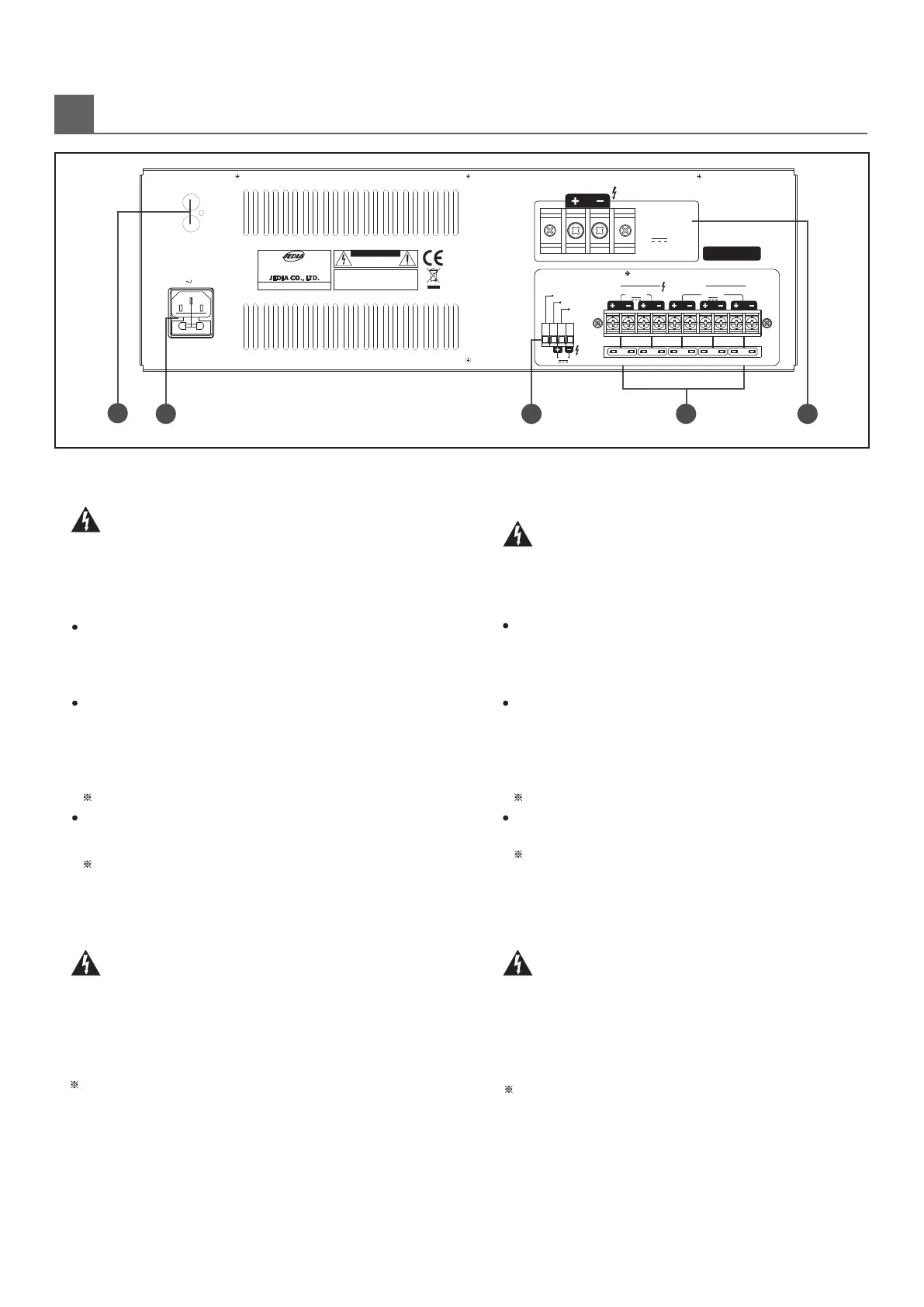

1. AC POWER INLET
교류전원󰼿공급용󰼿소켓이며󰼿전면의󰼿파워󰼿스위치가󰼿"OFF"된󰼿상태에서󰼿전원󰼿
코드를󰼿끼워주십시오.
2. SWITCHED, UNSWITCHED POWER CONTROL
POWER󰼿DISTRIBUTOR(JPD-322AU,JPD-322A)와󰼿연결󰼿하십시오.
3. DC OUTPUTS(1~5)
정전시󰼿배터리전압이󰼿출력되는󰼿터미널입니다.
연결시󰼿+,-극성이󰼿바뀌지󰼿않도록󰼿주의하십시오.󰼿DC󰼿OUTPUT의󰼿1,2는
4CH󰼿P.A󰼿AMP공급용󰼿전원으로󰼿사용하십시오.
4. EXTERNAL BATTERY TERMINAL
렉󰼿시스템󰼿설치시󰼿내부배터리를󰼿사용하지󰼿않을󰼿경우󰼿외부󰼿배터리를󰼿연결
하는󰼿터미널입니다.
1. AC POWER INLET
This is AC inlet connector plug in under switched "OFF".
2. SWITCHED, UNSWITCHED POWER CONTROL
Connect to power distributor(JPD-322AU, JPD-322A)
3. DC OUTPUTS(1~5)
This is DC output terminal of battery when AC power failure.
Please note +,- polarity.
Use DC output 1,2 only for 4CH P.A amplifier.
This is terminal for external battry not using of internal battery.
4. EXTERNAL BATTERY TERMINAL
R
EAR PANEL CONTROLS (후면기능)
SWITCHED OUT
Unexpected ACpower failure, DC power of battery is supplied to
power distributor (JPD-322AU, JPD-322A) to operate relay group
(JRG-220AU, JRG-220A) rack system.
(power control out should be connected to JPD-322AU, JPD-322A
SWITCHED OUT
정전시󰼿배터리󰼿전압이󰼿POWER󰼿DISTRIBUTOR󰼿(JPD-322AU,JPD-322A)
에󰼿공급되어󰼿RELAT󰼿GROUP(JRG-220AU,󰼿JRG-220A)과󰼿렉󰼿시스템의
󰼿DC동작전용󰼿제품에󰼿공급되도록󰼿분배됩니다.󰼿(POWER󰼿CONTROL󰼿OUT
󰼿콘넥터가󰼿JPD-322AU,󰼿JPD-322A와󰼿연결된󰼿상태에서󰼿전원󰼿공급이󰼿가능)
UNSWITCHED OUTPUT
This is power terminal for supplying of battery and supply power
to the remote AMP(JRA-051A) and emergency speaker selector
(JES-120AU, JES-120A) for emergency announcement.
(When emergency announcement, power will be remote
automatically.)
Be sure connect with JPD-322AU, JPD-322A.
UNSWITCHED OUT
배터리󰼿전원이󰼿항상󰼿공급되는󰼿단자로서󰼿POWER󰼿DISTRIBUTOR가󰼿OFF
된󰼿상태에서󰼿REMOTE󰼿AMP(JRA-051A)와󰼿EMERGENCY󰼿SPEAKER󰼿
SELECTOR(JES-120AU,󰼿JES-120A)에󰼿전원을󰼿공급하여󰼿긴급방송
󰼿또는󰼿비상󰼿(화재발화)방송이󰼿가능하도록󰼿합니다.
(방송이󰼿선택되면󰼿자동으로󰼿파워󰼿리모트󰼿콘드롤이󰼿됨)
반드시󰼿JPD-322AU,󰼿JPD-322A와󰼿연결하십시오.󰼿
반드시󰼿JPD-322AU,󰼿JPD-322A와󰼿연결하십시오.󰼿
운용시󰼿반드시󰼿내부󰼿배터리와󰼿외부󰼿배터리를󰼿같이󰼿연결하여󰼿사용하지
마십시오.
POWER CONTROL OUT
정전시󰼿배터리󰼿전압이󰼿공급되도록󰼿하는󰼿파워리모트󰼿콘트롤󰼿터미널입니다.
POWER CONTROL OUT
This is for remote control of power when unexpexted AC power
failure.
Be sure connect with JPD-322AU, JPD-322A.
Be sure not to use internal battery and external battery sametime.
IMPORTANT NOTICE : When fuse blown-out, it should be replaced
whit the same type just like following table. If it replacing fuse and
refer servicing to qualified person.
FUSE : 120VAC→T4AH(55T),󰼿230V~240→T2AH(55T)
IMPORTANT NOTICE : When fuse blown-out, it should be replaced
with the same type just like following table.
If it continues to blown-out, stop replacing fuse and refer servicing
to qualified person. Capacity of internal battery is 24AH 5hours for
power supply in signal sound.
중요사항󰼿:󰼿휴즈를󰼿교체시에는󰼿반드시󰼿규정된󰼿정격󰼿휴즈를󰼿사용하
며자격이󰼿있는󰼿사람이󰼿휴즈를󰼿교체하십시오.
FUSE󰼿:󰼿120VAC→T4AH(55T),󰼿230V󰾝240VAC→T2AH(55T)
중요사항󰼿:󰼿휴즈를󰼿교체시에는󰼿반드시󰼿규정된󰼿정격󰼿휴즈를󰼿사용하
며󰼿자격이󰼿있는󰼿사람이󰼿휴즈를󰼿교체하십시오.
내부󰼿배터리는󰼿24AH󰼿용량이며󰼿앰프󰼿동작을󰼿음성신호로󰼿운용시󰼿배
터리는󰼿약󰼿5시간󰼿사용이󰼿가능합니다.
5
21 3 4
DC OUTPUTS
T40AL 32V T40AL 32V T20AL 32V T20AL 32V T20AL 32V
CAUTION : IN CASE OF USING EXTERNAL
EXTERNAL
BATTERY
24V
CAUTION: TO REDUCE THE RISK OF
FIRE REPLACE ONLY WITH SAME TYPE FUSE.
SERIAL NO.:
UNSWITCHED OUT
1 2 3 4 5
EMERGENCY POWER SUPPLY
MADE IN KOREA
MODEL NO.: JEP-352U
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
24V
SWITCHED OUT
PWR CONTROL OUT
(FROM JPD-322A)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
FUSE RATING
T2AH 250V
AC 230V 50Hz 105W
BATTERY, INTERNAL BATTERY IS NOT AVAILABLE.
BE SURE NOT TO EXCEED 24A OF DC OUTPUTS
FOR USING OF INTERNAL BATTERY.
EACH
24V/32A
EACH
24V/16A
POWER
CHECK
AKU 40%
CHECK
(NON PULSE)
(NON-PULSE)
USE ONLY WITH A 250V FUSE
4040 20 20 20
5.󰼿주요기능󰼿상태출력󰼿단자
본장비의󰼿주요기능을󰼿검출하여󰼿본사의󰼿JCU-160의󰼿입력단자에󰼿
연결하는󰼿출력단자입니다.
JCU-160입력단자와󰼿연결시󰼿JCU-160의󰼿CHECK󰼿SIGNAL󰼿선택스위치를󰼿
출력펄스와󰼿같게󰼿설정하여󰼿주십시요.
(CHECK󰼿SIGNAL선택스위치󰼿설정󰼿방법은󰼿JCU-160메뉴얼󰼿참조.)
5. OUT TERMINAL FOR THE STATUS OF MAJOR FEATURE
This is output terminal to be connected with input terminal of JCU-160
in order to report the status of major features of equipment it self.
when connecting to JCU-160, please set "check signal" switch of
JCU-160 to be matched with output pulse of this equipment.
( Please refer to the setting method of check signal switch in the
operating manual of JCU-160)
