Underhood Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the engine compartment near the
battery. This power center houses plug-in “Cartridge”
fuses, ISO relays, and Mini (Micro) fuses.
A label inside the latching cover of the center identifies
each component for ease of replacement, if necessary.
Cartridge and mini (micro) fuses can be obtained from
your authorized dealer.
Cavity Fuse/Color Description
1 40 Amp Green HEVAC
2 40 Amp Green HBL (Rear Window Defroster)
3 40 Amp Green Exterior Lighting
4 40 Amp Green Radiator Fan
5 20 Amp Yellow Transmission
6 30 Amp Pink Starter
7 Open
8 40 Amp Green ABS Motor
9 20 Amp Yellow ASD
10 40 Amp Green HD/LP
11 Open IOD Storage
12 30 Amp Pink ABS Valve

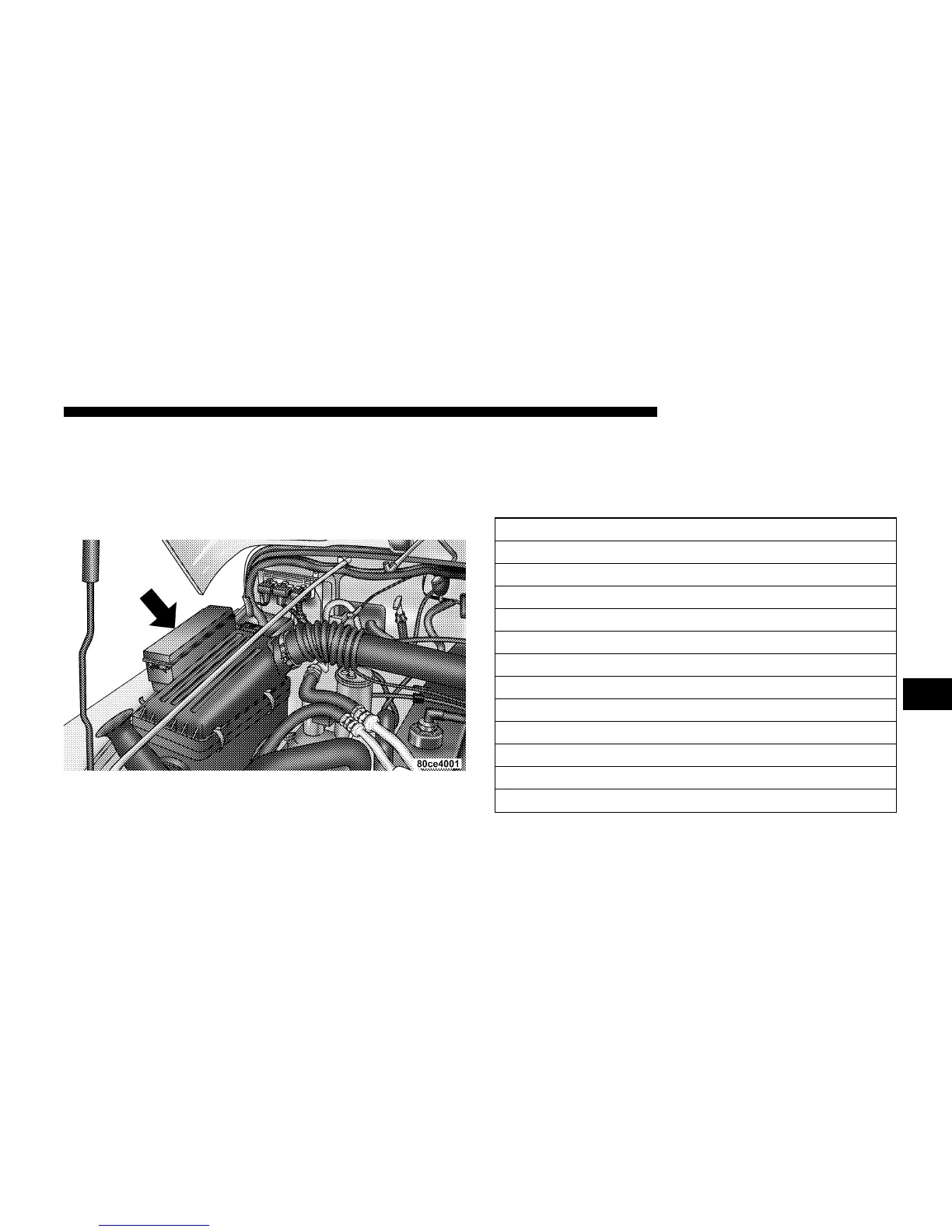

Power Distribution Center
MAINTAINING YOUR VEHICLE 307
7
