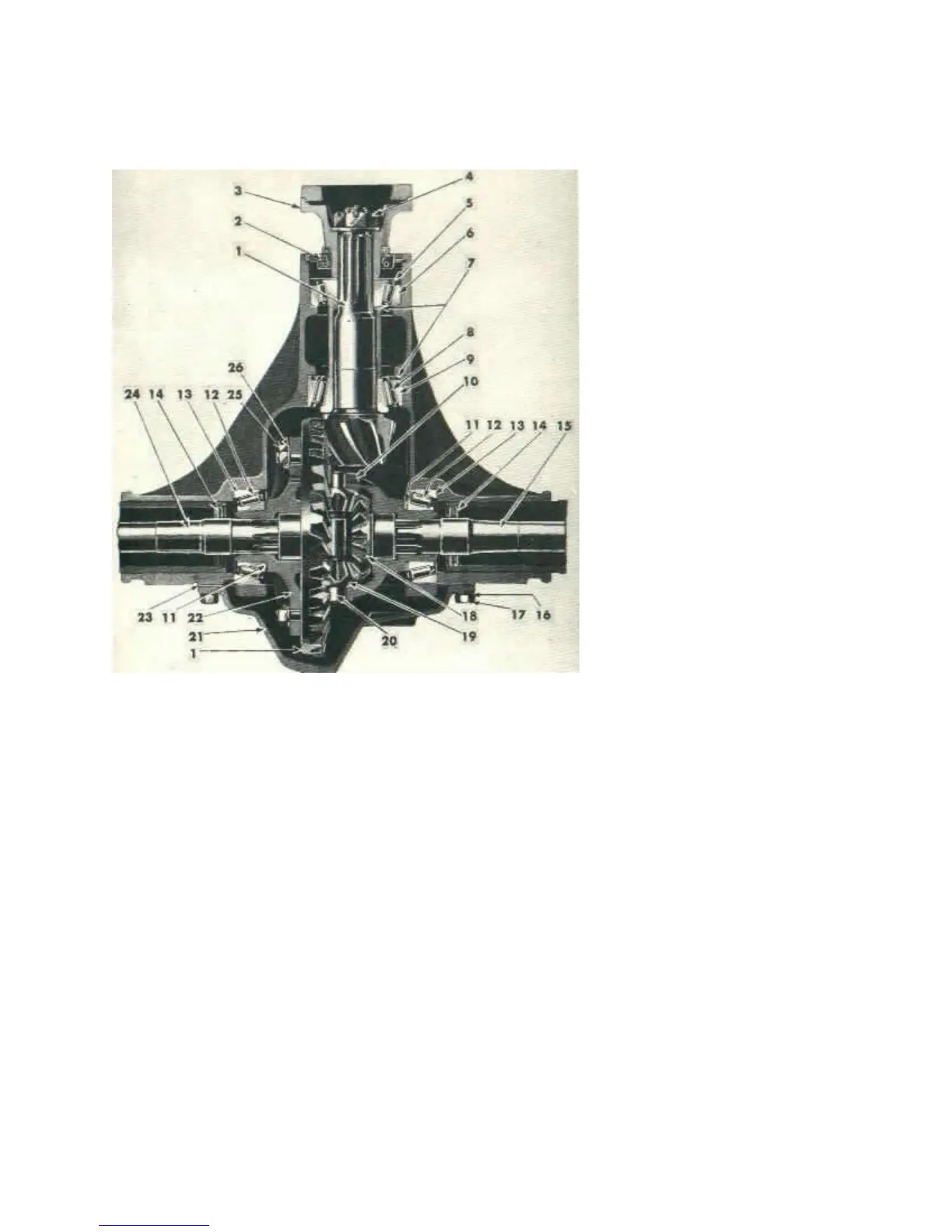

FIG. 26—FRONT AXLE
DIFFERENTIAL
1—Hypoid Bevel Drive Gear and Pinion Set (Matched)
2—Drive Pinion Oil Seal3—Universal Joint End Yoke Assembly
4—Drive Pinion Nut5—Pinion Shaft Bearing Cone and Rollers (Outer)
6—Pinion Shaft Bearing Cup7—Pinion Bearing Adjusting Shims (Front and Rear)
8—Drive Pinion Bearing Cone and Rollers (Rear)9—Drive Pinion Bearing Cup (Rear)
10—Differential Bevel Pinion Mate Shaft Lock Pin11—Differential Adjusting Shims
12—Differential Bearing Cone and Rollers13—Differential Bearing Cup
14—Oil Seal Differential End15—Axle Shaft (Left)
16—Gear Cover Screw Lockwasher17—Gear Cover Screw
18—Differential Bevel Side Gear19—Differential Pinion Mate
20—Differential Bevel Pinion Mate Shaft21—Gear Carrier Cover
22—Differential Case23—Gear Carrier Cover Gasket
24—Axle Shaft (Right)25—Hypoid Bevel Drive Gear Screw
26—Drive Gear Screw Locking Strap
