47

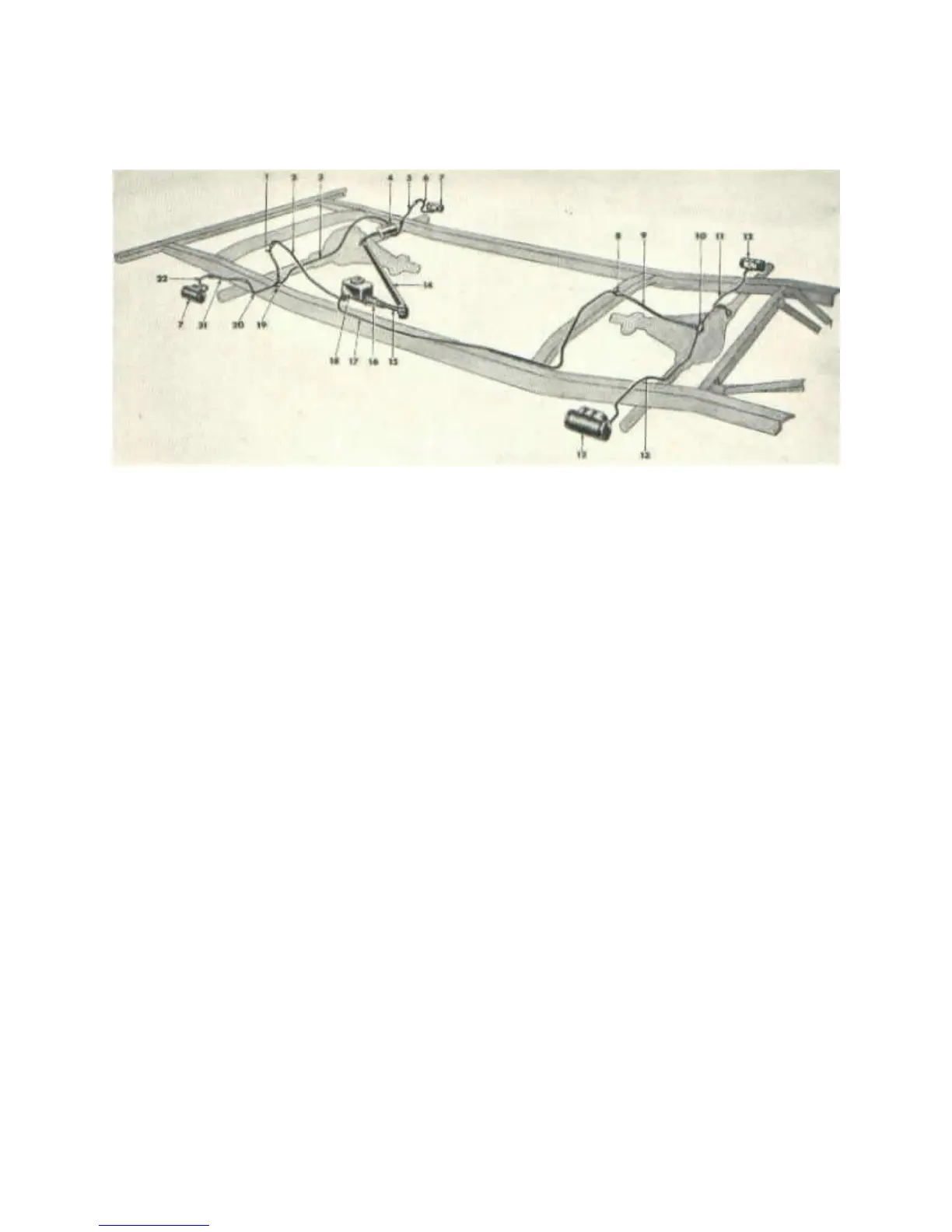

FIG. 29—HYDRAULIC BRAKE SYSTEM
1—Brake Hose—Front Axle to Frame
2—Brake Tube—Master Cylinder to Front Hose
3—Brake Tube—Tee to Frr,nt Brake Hose Right
4—Brake Pedal
5—Brake Hose—Front Axle
6—Brake Tube—Wheel Cylinder to Hose
7—Wheel Brake Cylinder—Front
8—Brake Hose Spring Lock Clip
9—Brake Hose Assembly
10—Rear Axle Tee
11— Brake Tube—Rear Axle Tee to Right Rear Brake
12—Wheel Brake Cylinder Rear
13—Brake Tube Rear A.~le Tee to Left Rear Brake
14—Brake Pedal Shaft
15—Master Cylinder Eye Bolt
16—Master Cylinder Boot
17—Brake Tube—Master Cylinder to Rear Hose
18—Brake Master Cylinder
19 —Front Axle Tee
20—Brake Tube—Tee to Left Front Brake Hose
21—Brake Hose—Front Axle
22—Brake Tube Wheel Cylinder to Hose
