GETTING TO KNOW YOUR VEHICLE 69
NOTE:
The liftgate unlock feature is built into the elec-
tronic liftgate release.
CARGO AREA FEATURES
Removable Rear Shelf — If Equipped
To remove rear shelf, proceed as follows:

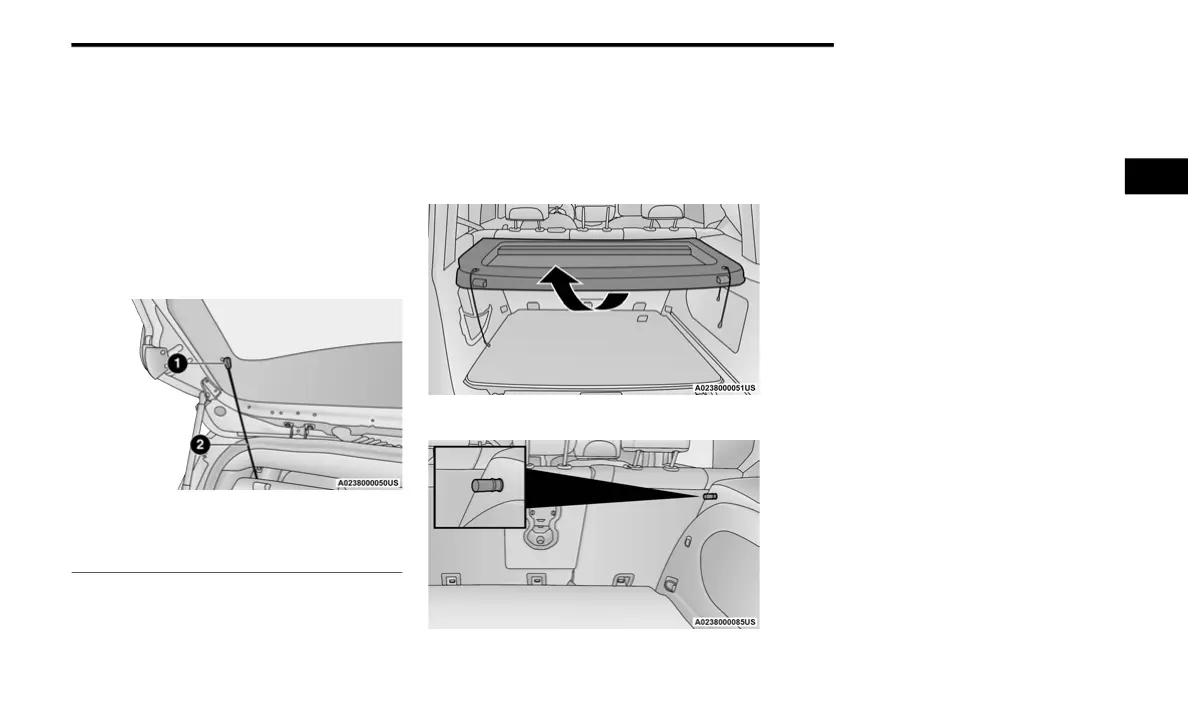

1. Disconnect the two links that support the
shelf at the eyelets.
Rear Shelf Support Links
2. Lift the rear part of the overhead luggage
shelf.
3. Clear the pins placed outside of the shelf,
and then remove the rear shelf pulling it
upwards.
4. The rear shelf can be stored in the cargo
area, or behind the front seatbacks.
Adjusting The Rear Shelf
Rear Shelf Pin
Cargo Load Floor
The vehicle is equipped with a load floor that
can be adjusted as needed.
Position 1 (Lowered Position):
This position allows you to make the load floor
flat for ease of loading/unloading objects from
the cargo area. This position also makes it
possible to use the space below as another
compartment for storing fragile or smaller
objects.
Position 2 (Elevated Position):
When the rear seatbacks and front passenger
seat are folded flat, it creates space for objects
of long dimensions. This position is
recommended only when transporting objects,
then move the load floor back to position 1.
Table Tilt Load
In addition to the two positions described above,
the load floor can also be placed in a tilted
position, slanted toward the rear seatbacks as to
ease the access to the underlying zone of the
luggage compartment (e.g. to pick up the spare
tire or the Tire Service Kit).
Place the load floor in a way that it rests at the
supports 1 and 2 on the sides of the cargo area.
1 — Eyelets
2 — Links
2
