8

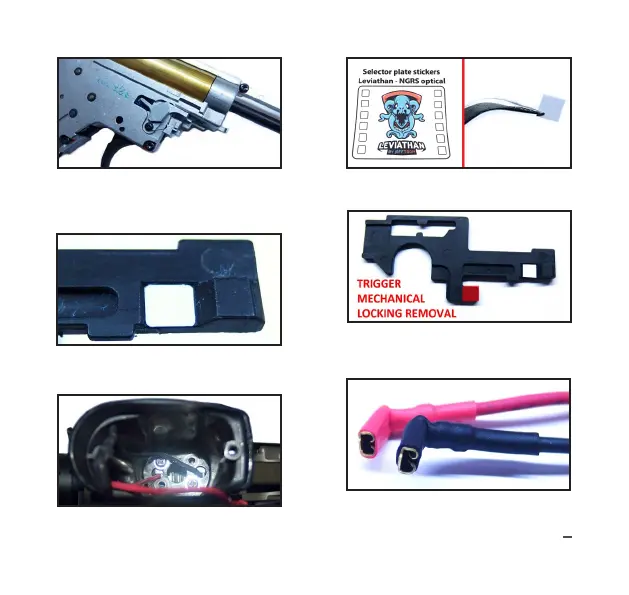

22. Assemble empty magazine
detection system and check its right
interaction with micro switch.
25. If you want functions on SAFE posi-
tion, cut the selector plate in red area.
Mechanical locking will be disabled.
23. Take out one of 12 stickers by pliers.
Do not touch the sticker by hand!
24. Clean selector plate by degreaser
and place sticker the to the white area.
26. Black wire bends back at the
bottom and lead both wires back.
27. Bend both motor connectors
exactly like on the picture.
Do not bend it to the other site!
