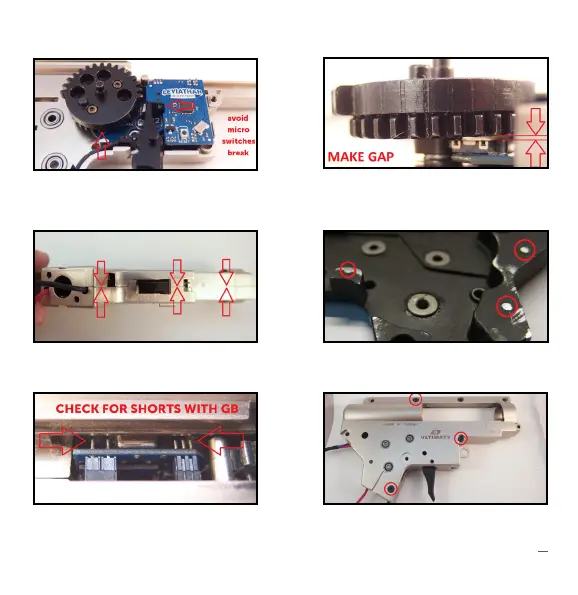

19. Secure the gearbox by 3 screws for
microswitch testing.
18. Check if the top board ts in the
gearbox without any problems.
14. Insert into the gearbox sector gear
and trigger from Leviathan package.
(avoid micro switches break).
15. Make sure the gear does not touch
micro switch body. Spin the gear slowly
to check right Cycle detection in the app
16. Put together the gearbox shell.
Check if it t together perfectly.
17. Grind pins in red circles to t wires
into the gearbox.
