5

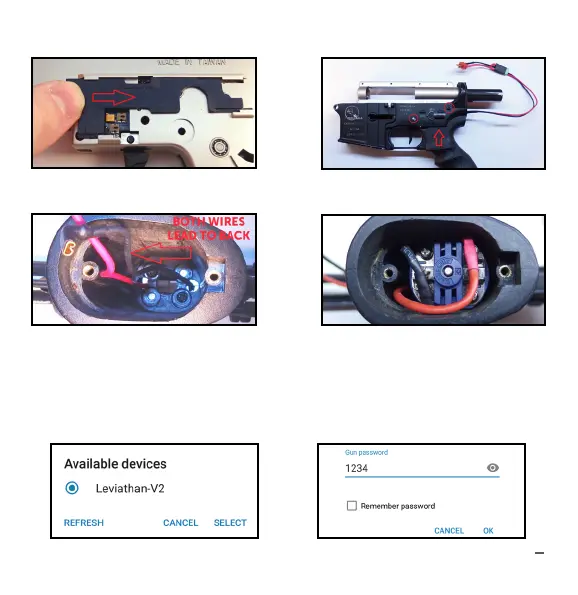

21. Put the gearbox into lower receiver,
secure its position by pins and screws.
20. Insert selector plate, move it from
front to back (avoid micro switch break)
Testing micro switches
1. Install „Leviathan by JeTron“app from iOS store or Google play into your smartphone.
You can also use link https://www.jetron.net/application
2. Connect battery to Leviathan - V2 and pair smartphone with the password 1234“.
23. Connect the black wire rst. Keep
in mind right motor polarity.
22. Black wire bends back at the bottom
and lead both wires back in the grip.
