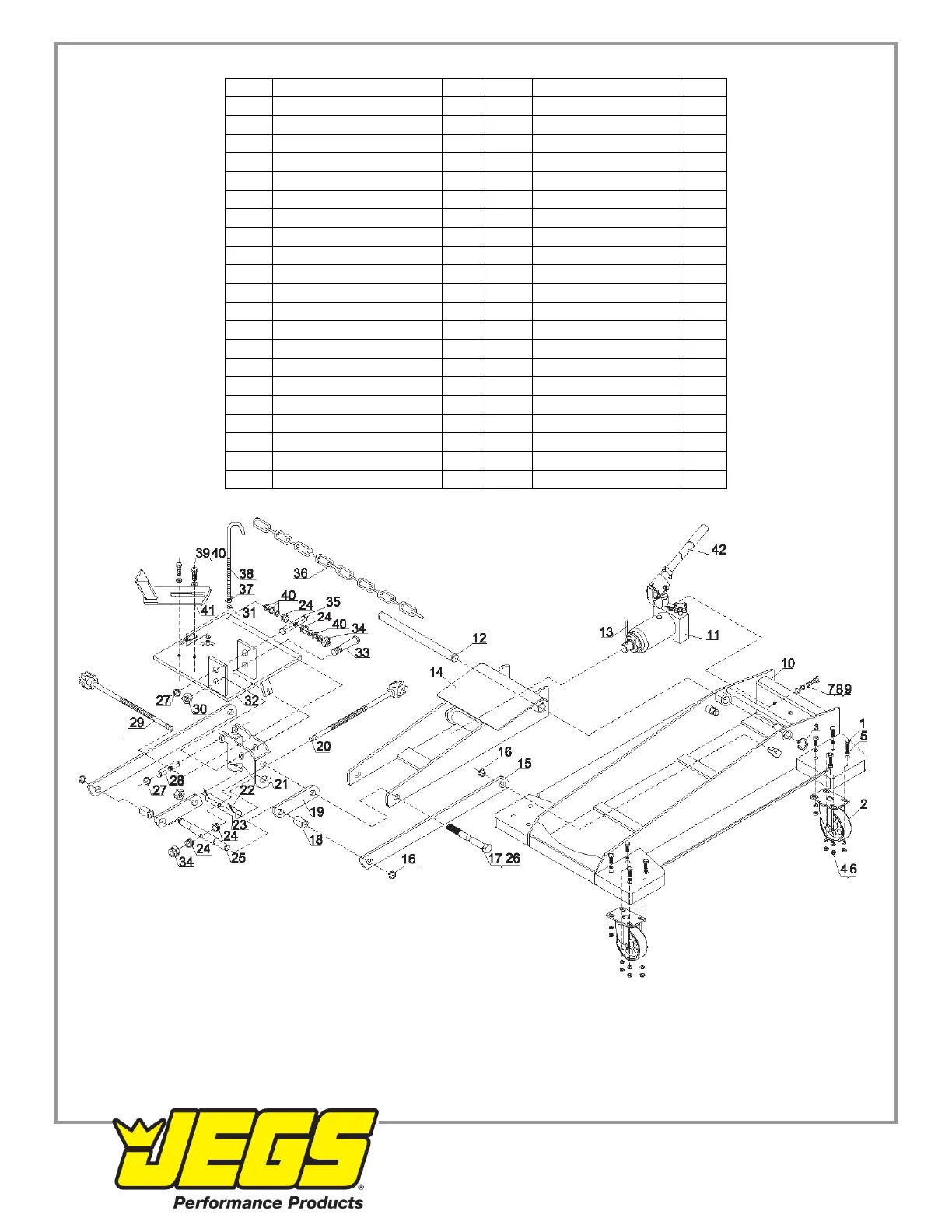

Parts List and Diagram
Description
Qty
Part
Description
Qty
Bolt M6x16
16
22
Spring Pin Ø4.5x25
2
Caster
4
23
Shaft
1
Snap Ring C Ø22
2
24
Bearing
4
Washer Ø6
18
25
Shaft
1
Lock Washer Ø6
16
26
Nut M10
2
Nut M6
16
27
Snap Ring c Ø18
4
Hex Bolt M8x20
2
28
Shaft
1
Lock Washer Ø8
2
29
Short Screw Rod
1
Washer Ø8
2
30
Nut M12
1
Base Assembly
1
31
Washer Ø12
3
Hydraulic Pump Unit
1
32
Support
1
Long Shaft
1
33
Shaft
1
Split Pin 6x45
1
34
Tight Nut M10
1
Lifting Arm Assembly
1
35
Shaft
1
Long Connecting Rod
2
36
Chain
1
Snap Ring c Ø16
6
37
Wing Nut M6
2
Shaft
1
38
Hook
1
Shaft Sleeve
2
39
Bolt M10x16
8
Short Connecting Rod
2
40
Washer Ø10
14
Long Screw Rod
1
41
Shifting Stand
4
Turning Plate
1
42
Handle Assembly
1
