Installation
4
Back of Base
Front of Base
Step 1 Step 2

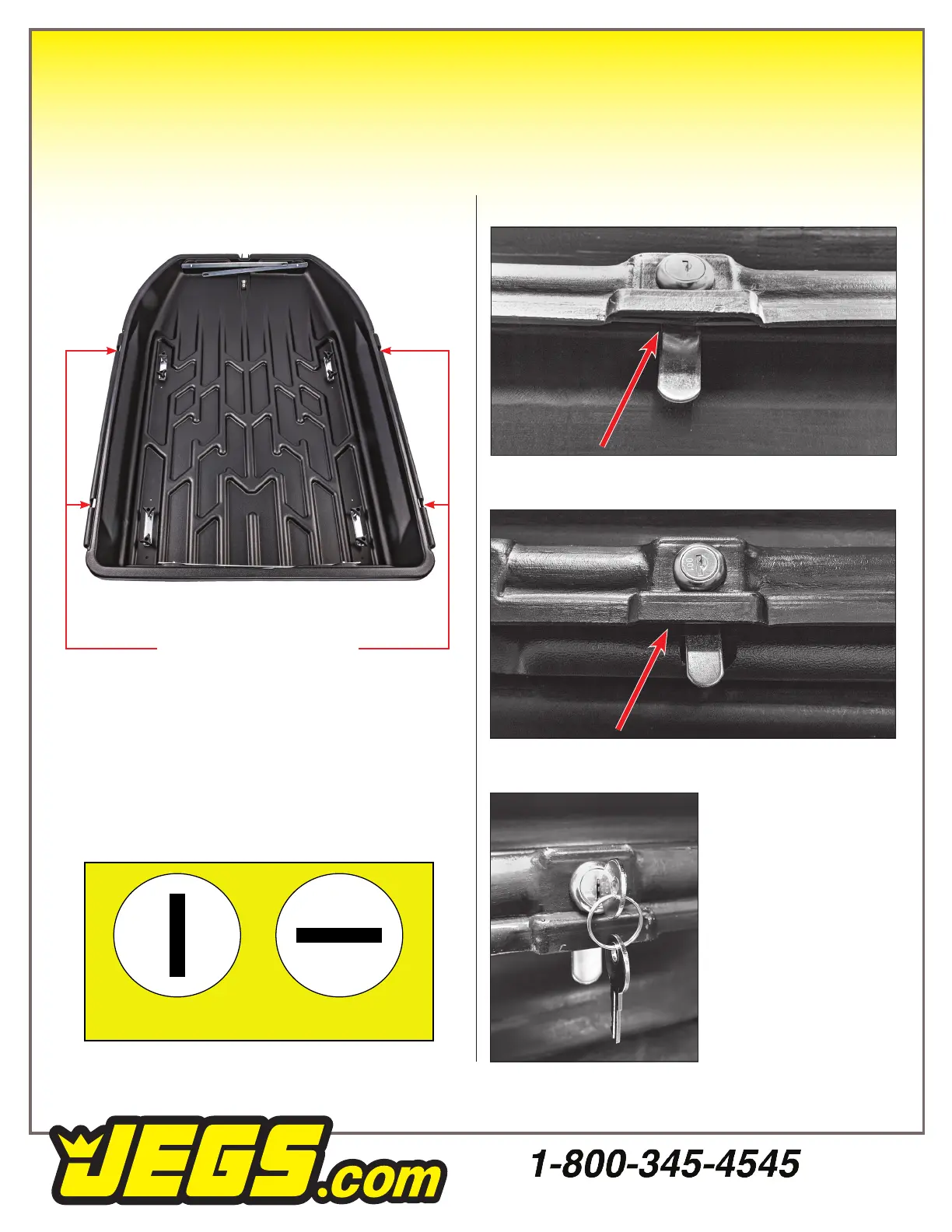

Place and align top shell on bottom, make sure all
four lock cams are in the unlocked position and
corresponding slot
Lock cam is in slot behind the bottom shell.
Lock cam is not in slot and not behind bottom shell.
Unlocked Locked
On top shell make sure
all four cams are in the
unlocked position and
in their slots.
Lock orientation
