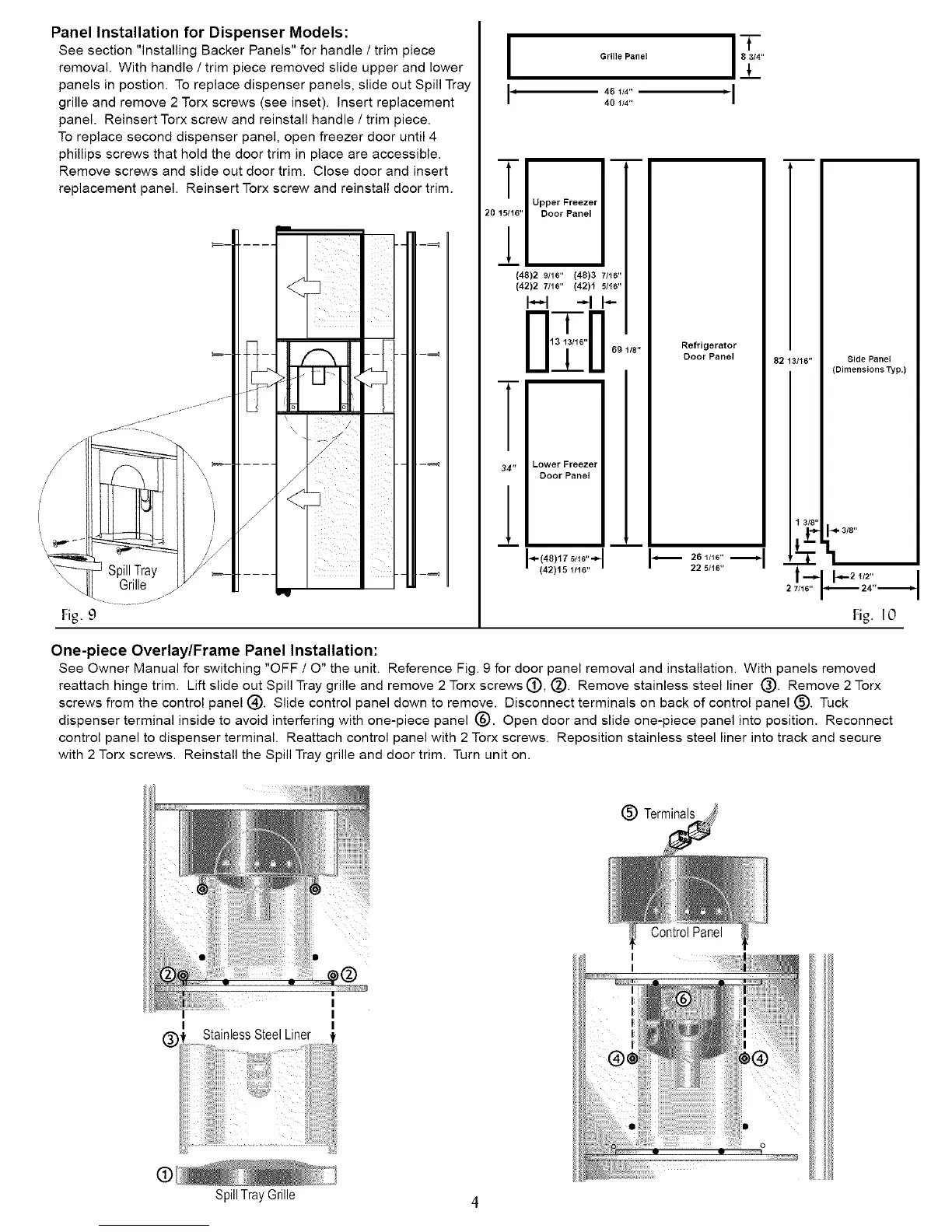

Panel Installation for Dispenser Models:
See section "installing Backer Panels" for handle / trim piece
removal. With handle / trim piece removed slide upper and lower
panels in post!on. To replace dispenser panels, slide out Spill Tray
grille and remove 2 Torx screws (see inset). Insert replacement
panel. Reinsert Torx screw and reinstall handle / trim piece.
To replace second dispenser panel, open freezer door until 4
phillips screws that hold the door trim in place are accessible.
Remove screws and slide out door trim. Close door and insert
replacement panel. Reinsert Torx screw and reinstall door trim.
Spill Tray
Grille
/
J
Fig.
iiil
I Grille Pane! I 8T43/4 ''
I [ 461/4" I I
40 1/4"
T I Upper Freezer
20T" I Door Panel
(48)2 9/16" (48)3 7/16"
(42)2 7/16" (42)1 5/16"
b-..t -I F.-
34" Lower Freezer
Door Panel
_-(48)f7 5/16"-_ I
(42)15 1/16"--
Refrigerator
Door Panel
/
26 1/16"
/
22 5116"
Side Pane!
(Dimensions Typ.)
I_' 3/8"
'-H t.-21t2,,
27/16" I'1_ 24"u
Fi_. I0
One-piece Overlay/Frame Panel Installation:
See Owner Manual for switching "OFF O" the unit. Reference Fig. 9 for door panel removal and installation. With panels removed
reattach hinge trim. Lift slide out Spill Tray grille and remove 2 Torx screws (]), (_). Remove stainless steel liner I_). Remove 2 Torx
screws from the control panel (_). Slide control panel down to remove. Disconnect terminals on back of control panel 1_). Tuck
dispenser terminal inside to avoid interfering with one-piece panel I_). Open door and slide one-piece panel into position. Reconnect
control panel to dispenser terminal. Reattach control panel with 2 Torx screws. Reposition stainless steel liner into track and secure
with 2 Torx screws. Reinstall the Spill Tray grille and door trim. Turn unit on.
O
I
Stainless Steel Liner
I
I
I
1_) Terminals
Control Panel
I
I
SpillTrayGrille 4
