Jenn-Air JS48PPDBDA - Page 5

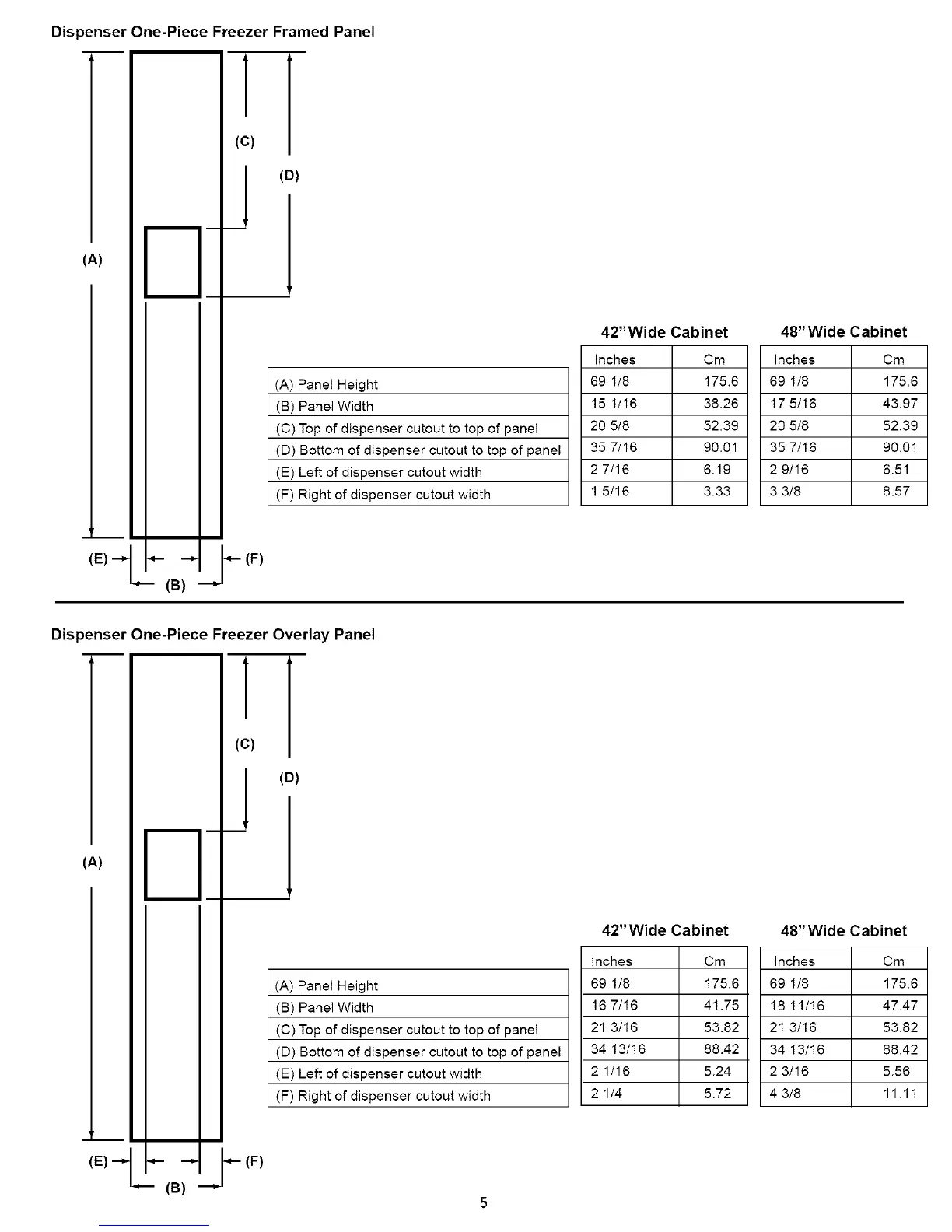

Dispenser One-Piece Freezer Framed Panel
(A)
(B)
,!,1
I (D)
(A) Panel Height
(B) Panel Width
(C) Top of dispenser cutout to top of panel
(D) Bottom of dispenser cutout to top of panel
(E) Left of dispenser cutout width
(F) Right of dispenser cutout width
,,.-(F)
42"Wide Cabinet
Inches
69 1/8
15 1/16
20 5/8
35 7/16
2 7/16
1 5/16
Cm
175.6
38.26
52.39
90.01
6.19
3.33
48" Wide Cabinet
Inches Cm
69 1/8 175.6
17 5/16 43.97
20 5/8 52.39
35 7/16 90.01
2 9/16 6.51
3 3/8 8.57
Dispenser One-Piece Freezer Overlay Panel
(A)
(D)
(A) Panel Height
(B) Panel Width
(C) Top of dispenser cutout to top of panel
(D) Bottom of dispenser cutout to top of panel
(E) Left of dispenser cutout width
(F) Right of dispenser cutout width
42" Wide Cabinet
inches Cm
69 1/8 175.6
16 7/16 41.75
21 3/16 53.82
34 13/16 88.42
2 1/16 5.24
2 1/4 5.72
48" Wide Cabinet
Inches
69 1/8
18 11/16
21 3/16
34 13/16
2 3/16
4 3/8
Cm
175.6
47.47
53.82
88.42
5.56
11.11
