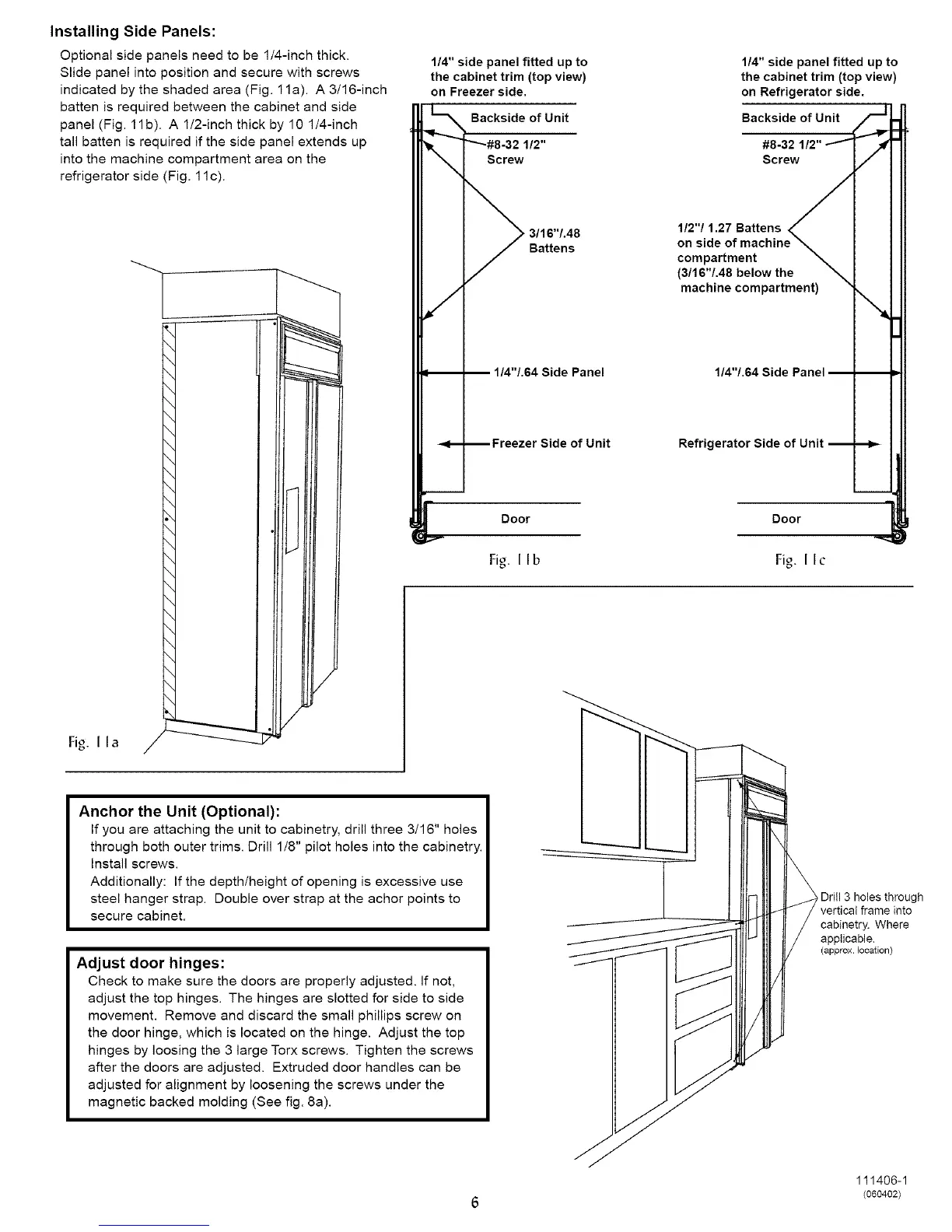

Installing Side Panels:
Optional side panels need to be 1/4-inch thick.
Slide panel into position and secure with screws
indicated by the shaded area (Fig. 1 la). A 3/16-inch
batten is required between the cabinet and side
panel (Fig. 11 b). A 1/2-inch thick by 10 1/4-inch
tall batten is required if the side panel extends up
into the machine compartment area on the
refrigerator side (Fig. 1lc).
1/4" side panel fitted up to
the cabinet trim (top view)
on Freezer side,
Backside of Unit
1/2"
Screw
1/4" side panel fitted up to
the cabinet trim (top view)
on Refrigerator side.
Backside of Unit
#8-32
Screw
Fig. I la
b----...
J
Anchor the Unit (Optional):
If you are attaching the unit to cabinetry, drill three 3/16" holes
through both outer trims. Drill 1/8" pilot holes into the cabinetry.
Install screws.
Additionally: If the depth/height of opening is excessive use
steel hanger strap. Double over strap at the achor points to
secure cabinet.
Adjust door hinges:
Check to make sure the doors are properly adjusted. If not,
adjust the top hinges. The hinges are slotted for side to side
movement. Remove and discard the small phillips screw on
the door hinge, which is located on the hinge. Adjust the top
hinges by loosing the 3 large Torx screws. Tighten the screws
after the doors are adjusted. Extruded door handles can be
adjusted for alignment by loosening the screws under the
magnetic backed molding (See fig. 8a).
> 3/16"/.48
Battens
112"11.27 Battens
on side of
compartment
(3/16"/,48 below the
machine compartment)
1/4"/.64 Side Panel 1/4"/.64
of Unit
Refrigerator Side of Unit
Door Door
Fig. lib Fig. I I c
, Drill 3 holes through
vertical frame into
cabinetry. Where
applicable.
(approx.location)
111406-1
6 (060402)
