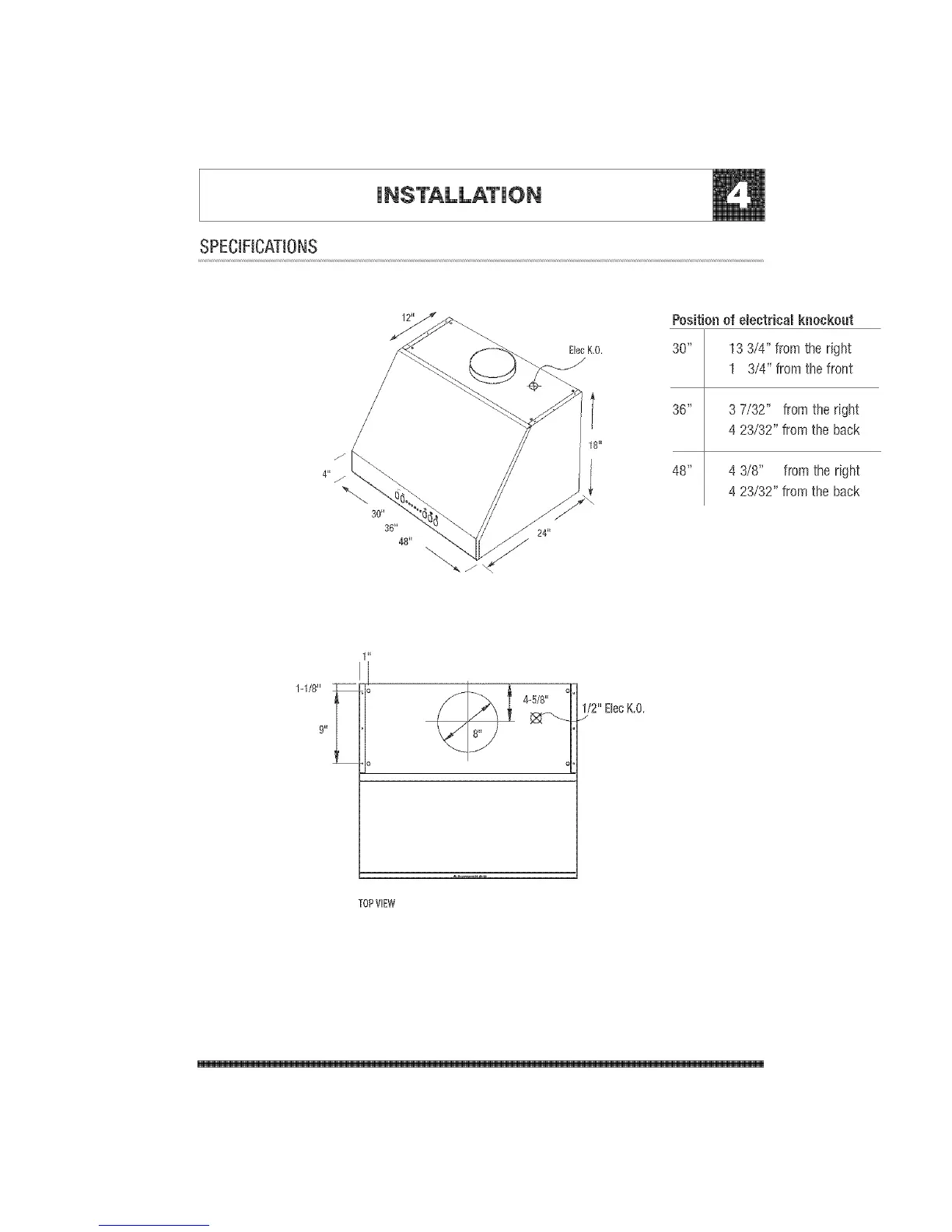

SPECIFICATIONS
Position of electrical knockout
30" 13 3/4" from the right
1 3/4" from the front
36" 3 7/32" from the right
4 23/32" from the back
48" 4 3/8" from the right
4 23/32" from the back
o
4-5/8"
o
TOPVIEW
1/2"ElecK,0.
