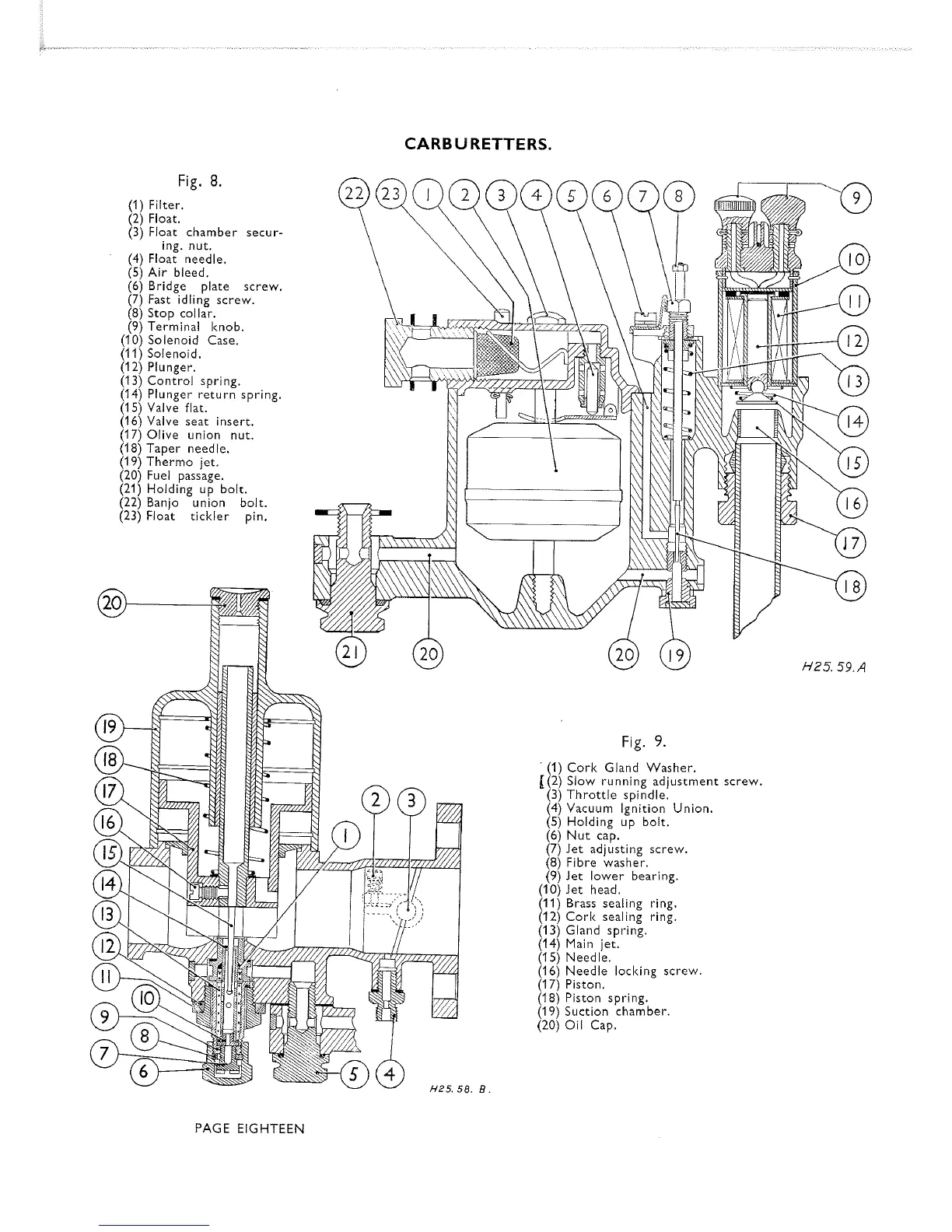

CARBURETTERS.
Fig. 8.
(1) Filter.
(2) Float.
(3) Float chamber secur-
ing. nut.
(4) Float needle.
(5) Air bleed.
(6) Bridge plate screw.
(7) Fast idling screw.
(8) Stop collar.
(9) Terminal Itnob.
(10) Solenoid Case.
(11) Solenoid.
(12) Plunger.
(1 3) Control spring.
(14) Plunger return spring.
(15) Valve flat.
(16) Valve seat insert.
(17) Olive union nut.
(18) Taper needle.
(19) Therrno jet.
(20) Fuel passage.
(21) Holding up bolt.
(22) Banjo union bolt.
(23) Float tickler pin.
Fig. 9.
' (1) Cork Gland Washer.
K(2) Slow running adjustment screw.
(3) Throttle spindle.
(4) Vacuum Ignition Union.
(5) Holding up bolt.
(6) Nut cap.
(7) Jet adjusting screw.
(8) Fibre washer.
(9) Jet lower bearing.
(10) Jet head.
(11) Brass sealing ring.
(12) Cork sealing ring.
(13) Gland spring.
(14) Main jet.
(15) Needle.
(16) Needle
loclting screw.
(17) Piston.
(18) Piston spring.
(19) Suction chamber.
(20) Oil Cap,
PAGE EIGHTEEN
