Jensen 541 - Instruments and Controls

1. Window Winder.
2. Door Handle.
3. Demister Duct.
4. Grab Ra~l.
5. Ash Tube.
6. Overdrive Switch.
7. Trafficator Switch.
8. Starter Sw~tch.
9. Fuel Gauge.
10. Choke.
11. Speedometer.
12. lgnition Warning Light.
13. Traffic Warn~ng Light.
14. Rev. Counter.
15. Demister Duct.
16. Panel Switch.
17. Oil and Water Gauge.
18. Wiper Switch.
19. Reserve Warning light.
20. Reserve Petrol Switch.
21. Screenwasher.
22. Reverse Light Switch.
23. Ignition and Lamp Switch.
24. Heater Switch.
25. Horn Push.
26. Steering wheel Adiustment.
27. Gear Control Lever.
28. Handbrake Lever.
29. Dipswitch.
30. Clutch Pedal.
31. Brake Pedal.
32. Radiator Flap Shutter

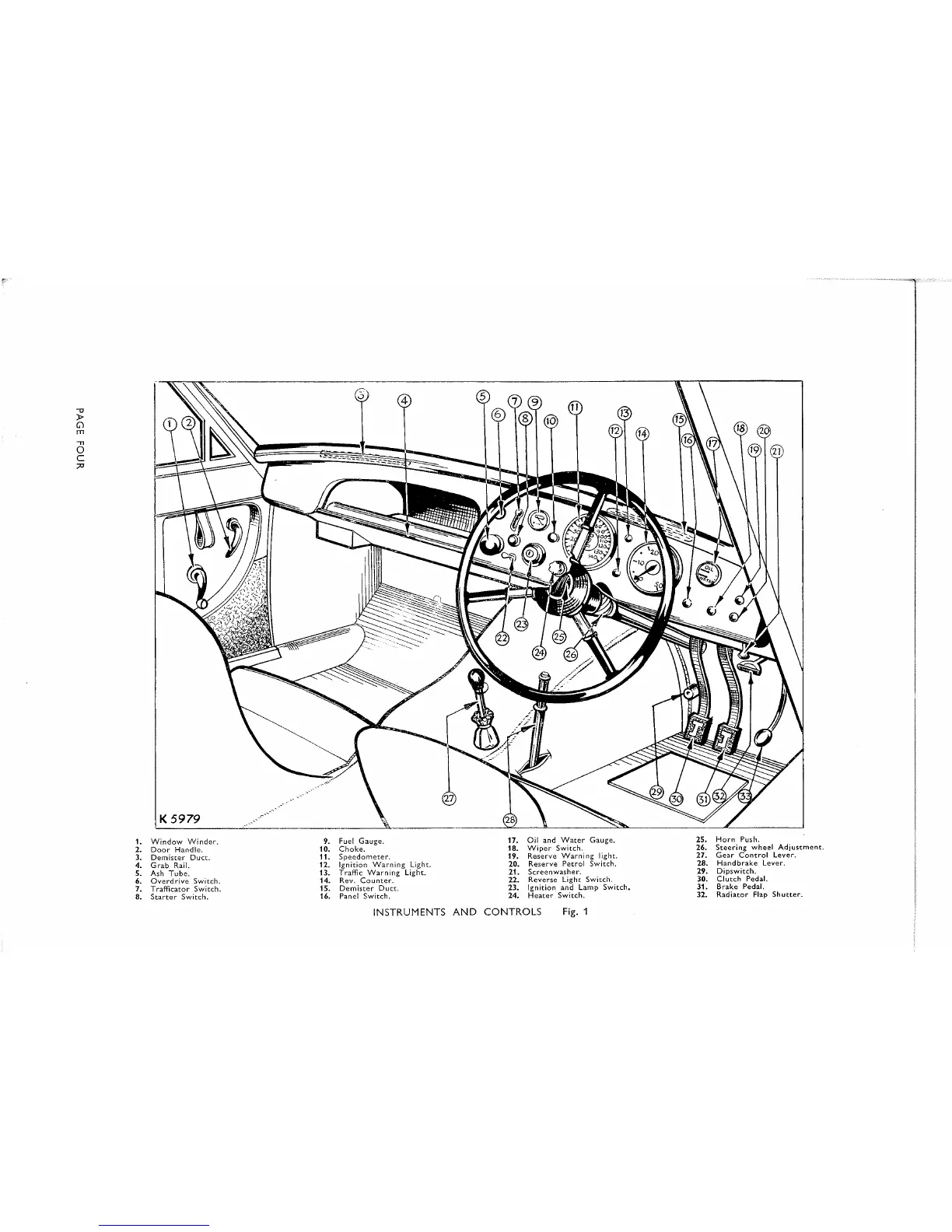

INSTRUMENTS AND CONTROLS Fig. 1
