J12W
8

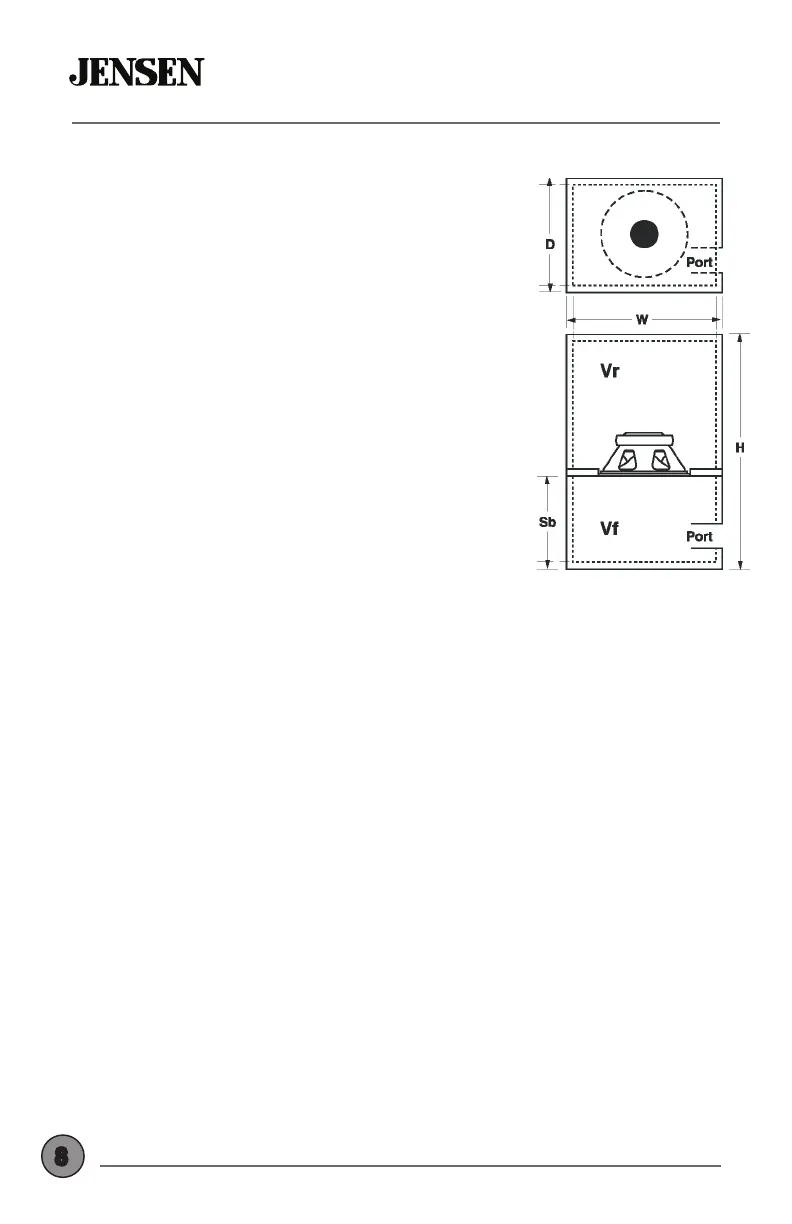

Bandpass Enclosure
Good Bass Performance/Mini-Enclosure
(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .47 Cu. Ft.
(P) Port 4" ID x 1.0" Long
(Sb) Speaker baffle location/outside front: 9.25"
Example Dimensions: 15" W x 16.5" H x 15" D
Better Bass Performance/Small Enclosure
(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .69 Cu. Ft.
(P) Port 4" ID x 2.625" Long
(Sb) Speaker baffle location/outside front: 9.25"
Example Dimensions: 15" W x 18.5" H x 15" D
Best Bass Performance/Medium Enclosure
(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .91 Cu. Ft.
(P) Port 4" ID x 4.25" Long
(Sb) Speaker baffle location/outside front: 9.25"
Example Dimensions: 15" W x 20.75" H x 15" D
Attention/Notice:
Dimensions are external
