17

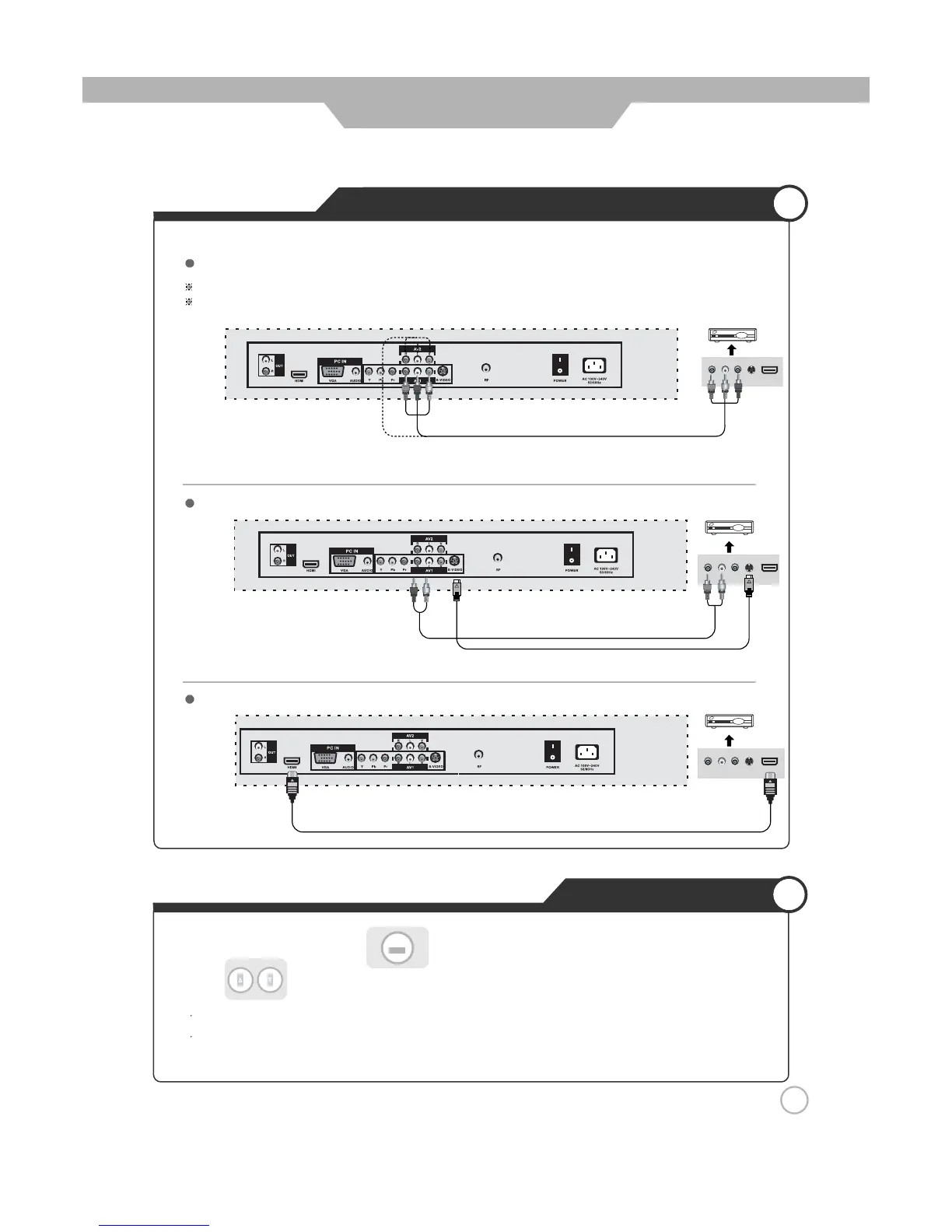

Satellite/ Cable TV Set-Top Box Connections
Connection
1. Turn on the LCD TV and press on the remote control.
2. Use to move to "AV 1 or 2".
If S-Video has been connected, select "S-Video".
If HDMI has been connected, select "HDMI".
3. Turn on the cable broadcasting receiver and select the channel you wish to view.
Connect the LCD TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the
Composite cable. (Make sure the color of the terminals and the color of cable are the same)
In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate receiver(Set-Top-Box)
Connection terminals of other equipments differ by manufacturer and model.
Use the S-Video cable for higher picture quality.
Composite Cable
S-Video Cable
HDMI Cable
(R) (L)
(R) (L)
< Cable broadcasting receiver >
< Cable broadcasting receiver >
Connecting to the Composite terminal
Connecting to the HDMI terminal
Connecting to S-Video terminal
Watching Cable TV
To Next Page
