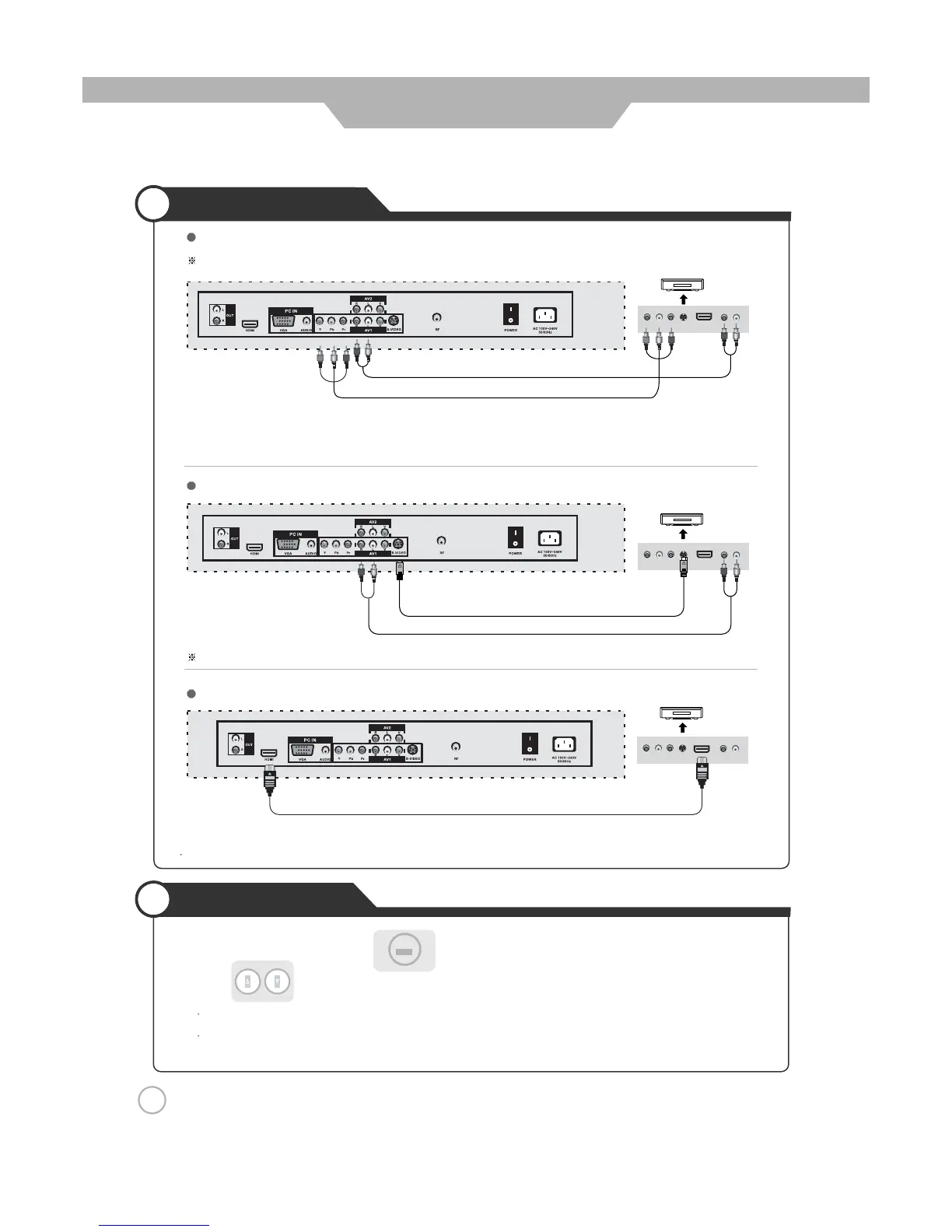

DVD Connections
18
Connection
Connection terminals of other equipments differ by manufacturer and model.
Component connection cable
Component Audio cable
S-Video Cable
1. Connect LCD TV's Y, Pb, Pr terminal to DVD's Video Out terminal using the external cable.
2. Connect LCD TV's Audio terminals (left & right) in AV 1 to DVD's Audio Out terminal using the Audio cable.
3. It must match the component connection cable Y, Pb, Pr between the LCD TV and DVD Player.
Connecting from HDMI terminal to HDMI terminal.
S-Video cable can be used if there is an S-Video terminal.
Connecting to the component terminal
Connecting to the S-Video terminal
Connecting to the HDMI terminal
(R)
(L)
< DVD >
PrPbY
(R)
(L)
< DVD >
PrPbY
HDMI connecting cable
(R)
(L)
< DVD >
PrPbY
Playing the DVD
1. Turn on the LCD TV and press on the remote control.
2. Use to move to "YPbPr".
If S-Video has been connected, select "S-Video".
If HDMI has been connected, select "HDMI".
3. Turn on the DVD, insert the DVD disc and press Play button.
To Next Page
