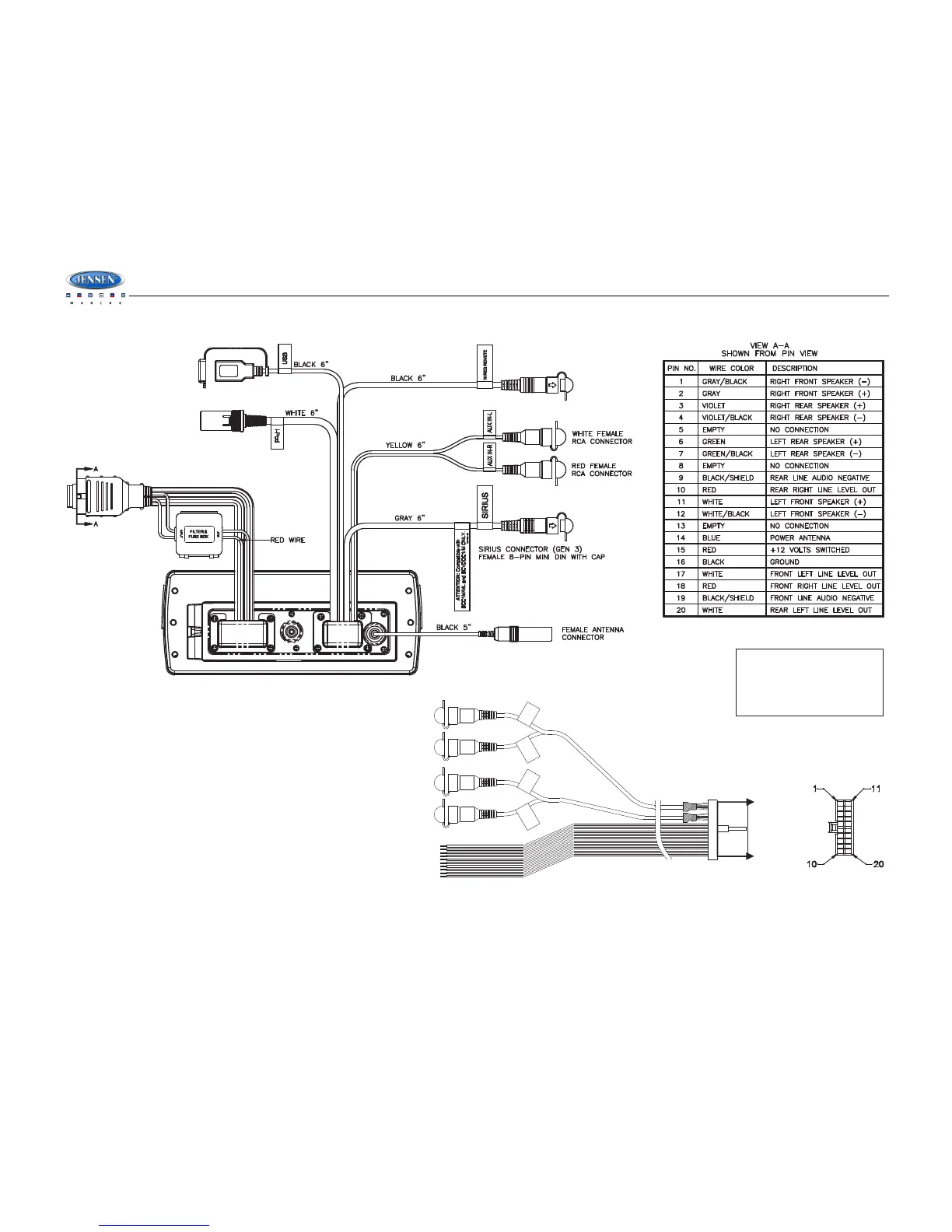

Jensen JMS7010 - Wiring Diagram and Connections; Wiring Diagram and Pinout

JMS7010
4
WIRING
10.22 inches
10.22 inches
LINE OUT
RED
WHITE
RED
WHITE
GRAY
GRAY
BROWN
BROWN
(REAR)
(FRONT)
LINE OUT
20 PIN AUDIO OUTPUT WIRE
MALE
A
A
WARNING!
Do not connect the RED +DC
wire to the battery. This wire
MUST be connected to a +12
volts switched power source.
