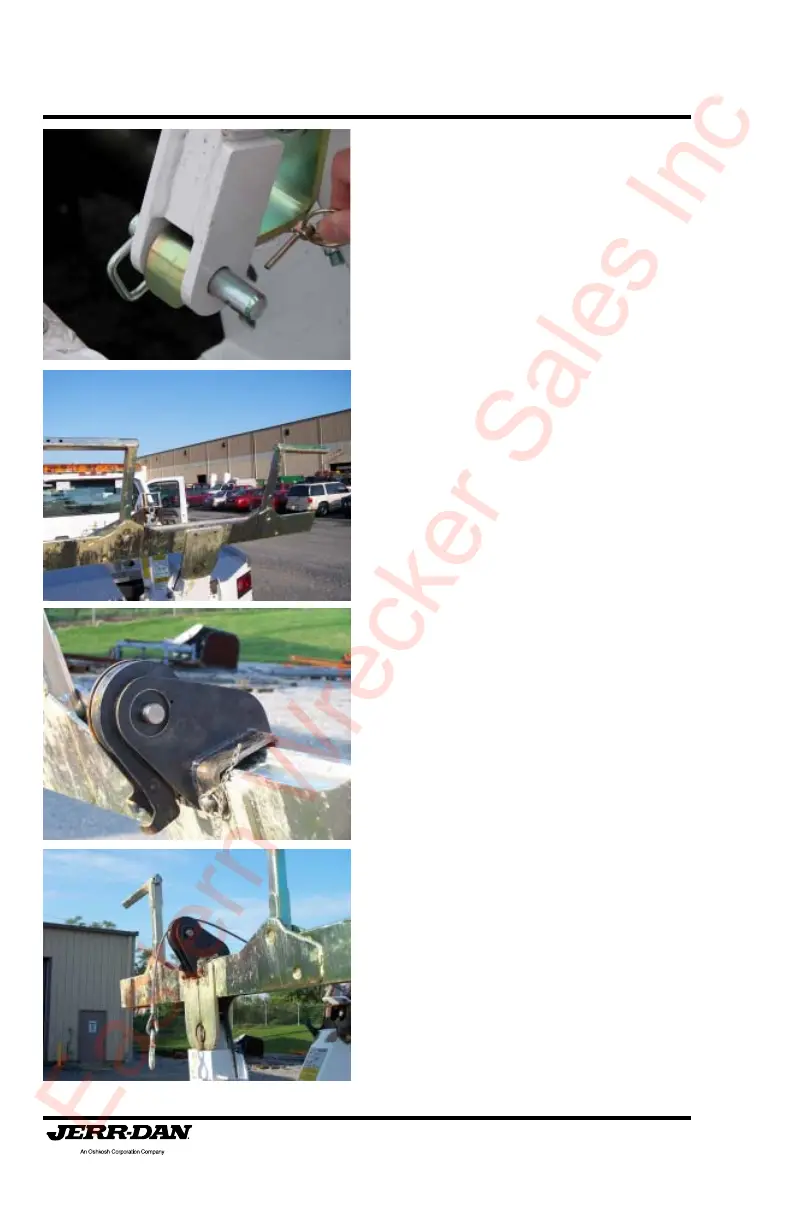

3. Remove the tow sling hold back
bar retaining pins allowing the hold
back bars to swing out of its re-
taining brackets on the sides of
the boom.
4. Lift the anchor assembly out of
the cradle bracket and set it aside.
5. Fold the underlift up a few feet and
open the underlift grid fully.
6. Take the underlift sheave assem-
bly from the toolbox and install it
onto the underlift crossbar using
the pins provided.
7. Route the winch wire rope/cable
over the sheave and install the
guide pin in the outer most hole
to retain the cable.
