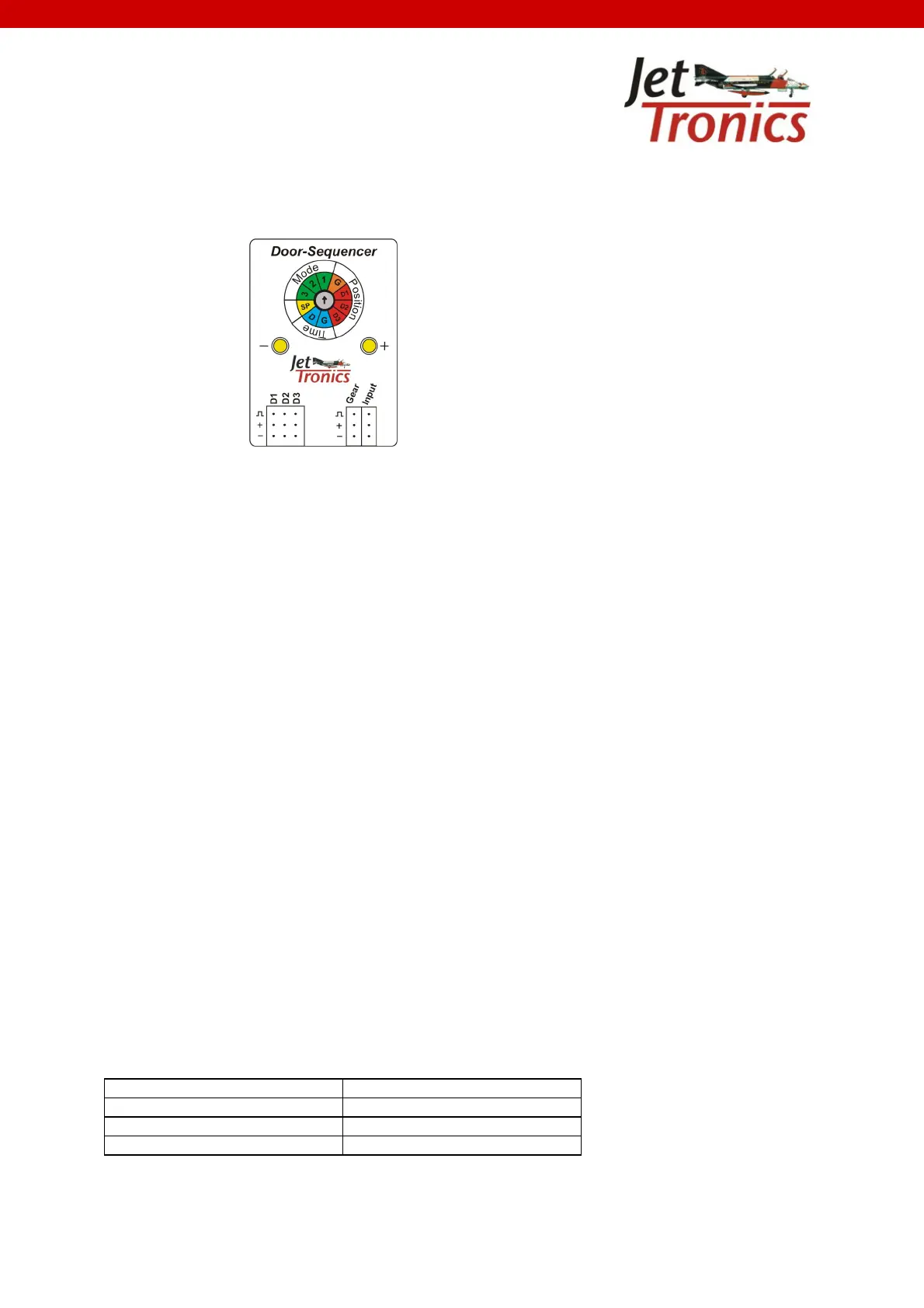

Door - Sequencer
The Door-Sequencer just needs 1 function to control one gear servo and 3 door-servos respectively pneumatic
valves.
There are 3 modes of operation available:
Mode 1:
Doors open, undercarriage lowered, doors close.
Doors open, undercarriage raised, doors close.
Mode 2:
Doors open up, undercarriage lowered, doors stay open.
Undercarriage raised, doors close.
Mode 3
Doors open, undercarriage lowered, 2 doors close, 1 door stays open.
2 doors open, undercarriage raised, 3 doors close.
The Door-Sequencer has following qualities:
- No V-Cables necessary because of 3 door outputs and output for undercarriage.
- Easy programming with help of 2 buttons and a coding switch.
- Switching point adjustable, making multiple uses on one channel possible.
- All four outputs (Gear, 3 Doors)are separately adjustable over the whole servo range.
- Delay time from opening doors to lowering or raising the undercarriage can be adjusted up to 3 sec.
- Delay time of closing doors adjustable from 4 to 40 sec.
- The last switch position of transmitter is saved.
Technical data
Supply voltage 4.0V..8,40V
Current consumption < 10mA
Dimensions 50x39x15 mm L/B/H
Weight 27 gr
