On/Off button (C, Fig. 4) turns the unit on and off.
There is also a manual on/off button (B, Fig. 5) on
the backside of the unit. Pressing this button will
turn the machine on Low.
Fuse switch (C, Fig. 5) will pop out in the case of
overload. Wait 3-5 minutes and push the fuse in.
Changing the Filters
To reduce the risk of injury,
disconnect the air cleaner from the power
source (unplug) before servicing or changing
filters. Failure to comply may cause serious
injury!
There are two filters that need to be changed. The
outer filter can easily be removed by disengaging
the two clips (A, Fig. 7).
Now you can simply pull the filter out, or use a
screwdriver to pop the filter out.
The inner filter (A, Fig. 7) can now be pulled out of
the unit. The inner filter can be blown out with
compressed air.
The filters should be replaced depending on the
amount of usage and the environment of your
shop. Clogged filters will reduce the amount of air
circulation. There is an arrow indicating the air
flow direction on the outer filter. Make sure the
filter is inserted facing the proper direction.
Replacement Filters
708731 electrostatic outer filter
708732 washable electrostatic outer filter
708733 inner filter
708734 charcoal filter

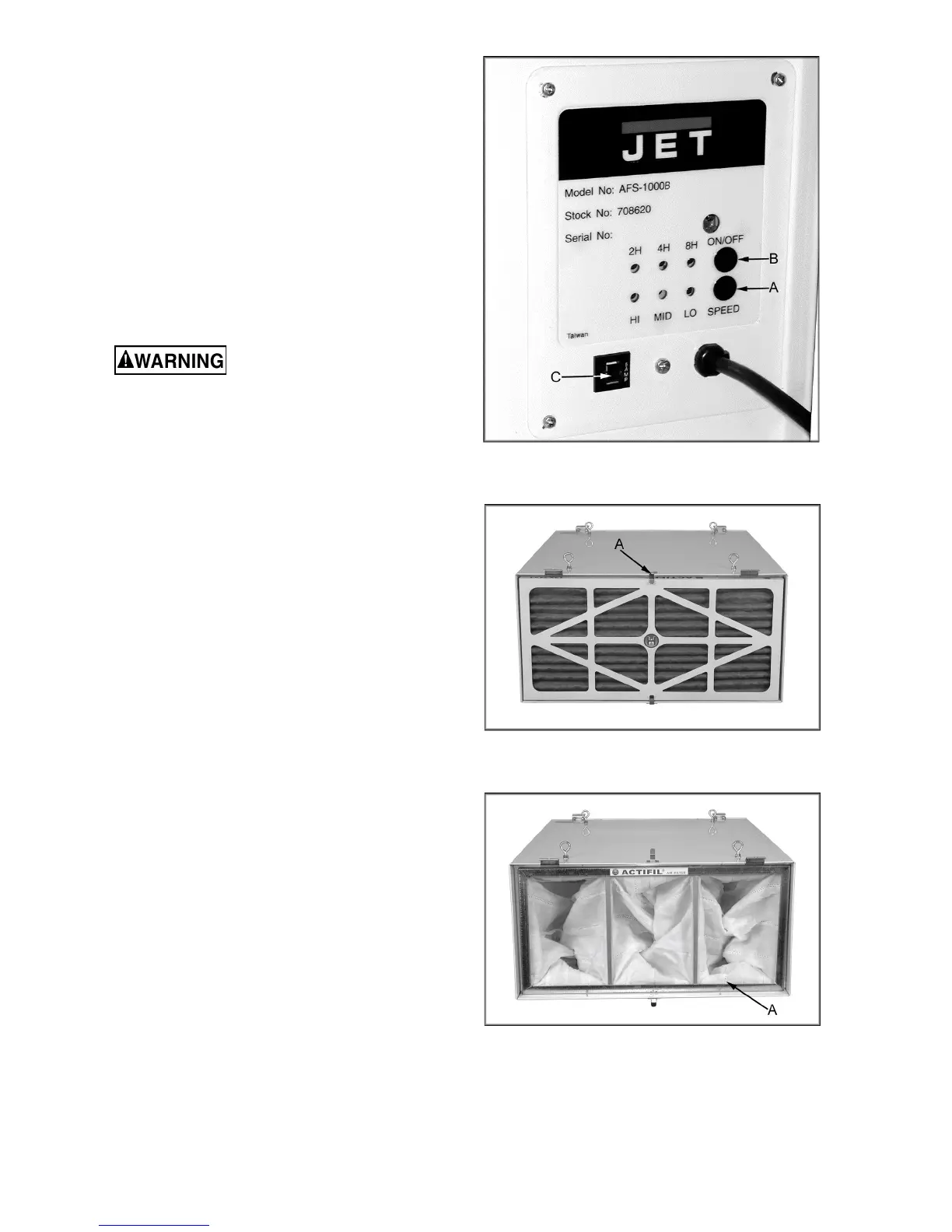

Figure 5
Figure 6
Figure 7
