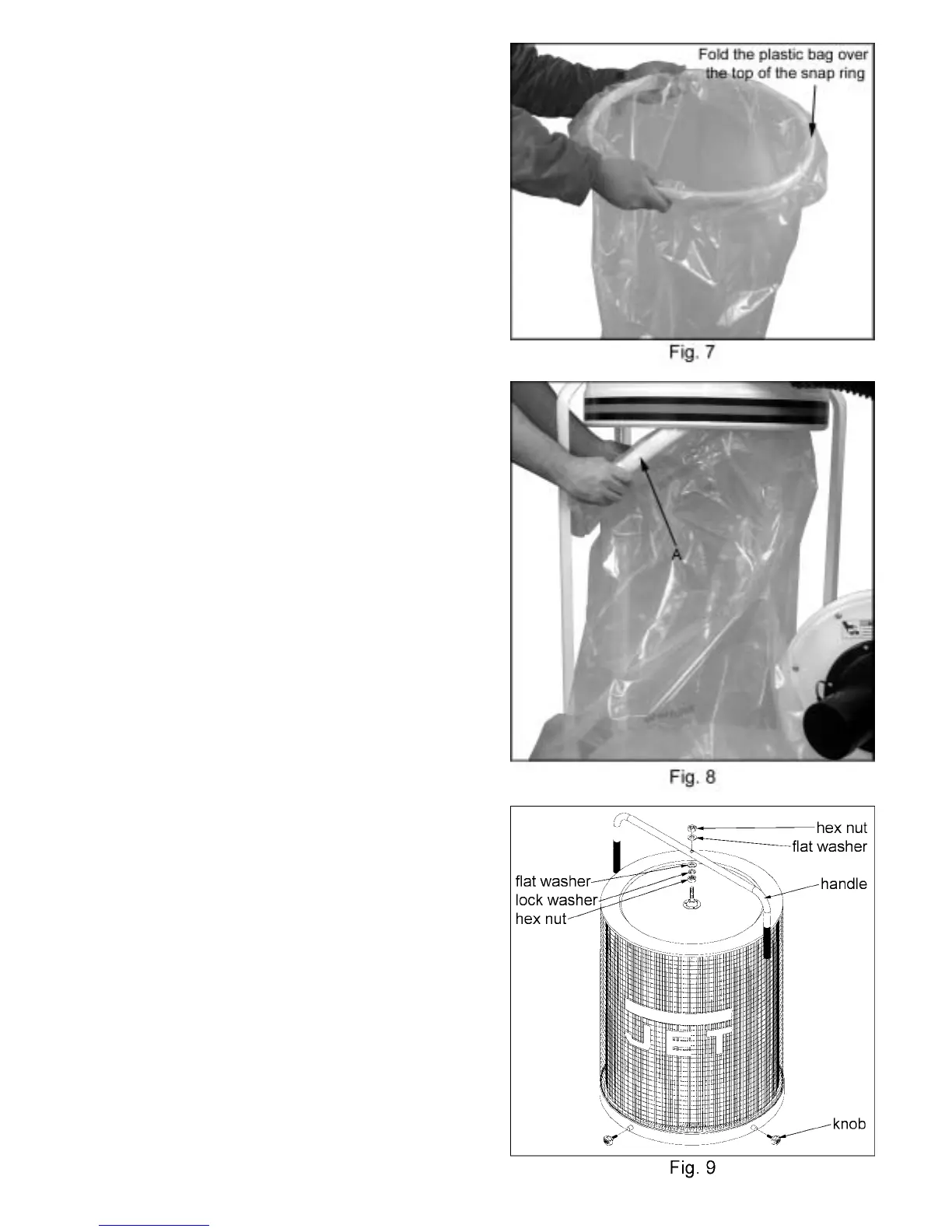

7. Place the ring over the top of the plastic bag
and fold over the bag approximately three
inches, Figure 7.
8. Insert the snap ring (A, Fig. 8) of the
collector bag into the bottom of the housing
at an angle.
9. Pull down on the ring to make sure it “seats”
in the housing.
Note: make sure the snap ring “snaps” into
place in the housing, and also that the
plastic bag hangs down approximately 3” so
that there are no air leaks.
10. Mount the handle onto the canister filter with
two M10 hex nuts, two M10 flat washers,
and a M10 lock washer, see Figure 9.
