6. Install the housing (A, Fig. 5) to two support
legs (B, Fig. 5) using four M8 x 16 hex cap bolts,
eight M8 flat washers, and four M8 hex nuts (C,
Fig. 5). Be sure hose opening faces fan housing.
Note: For filter bag models only – Before attaching
third support bracket place the hanger bracket (D,
Fig.5) between the support bracket and the
housing. This action is not necessary for canister
filter units.
7. Tighten all nuts and bolts at this time with a 13mm
wrench.
Cone Assembly
Referring to Figure 6:
8. Mount the cone support bracket (E) to the housing
with four M6x12 hex cap screws (F), and tighten
from beneath with four M6 hex nuts (G).
9. Install the cone (H) from beneath using the M8x16
hex cap screw (J), M8 flat washer (K), and M8 hex
nut (L), and tighten.
Hose
Referring to Figure 7:
10. Attach the hose (B) between the collector housing
(A) and the impeller housing (D) with two clamps
(C). Tighten the clamps to secure the hose.
This completes the Base Unit assembly. If you
purchased the DC-1100VX-BK or DC-1100VX-5M
Dust Collector (filter bag versions), continue on the
following page. If you purchased the DC-1100VX-CK
Dust Collector (canister filter version), proceed to
Canister Kit Assembly section on page 12.

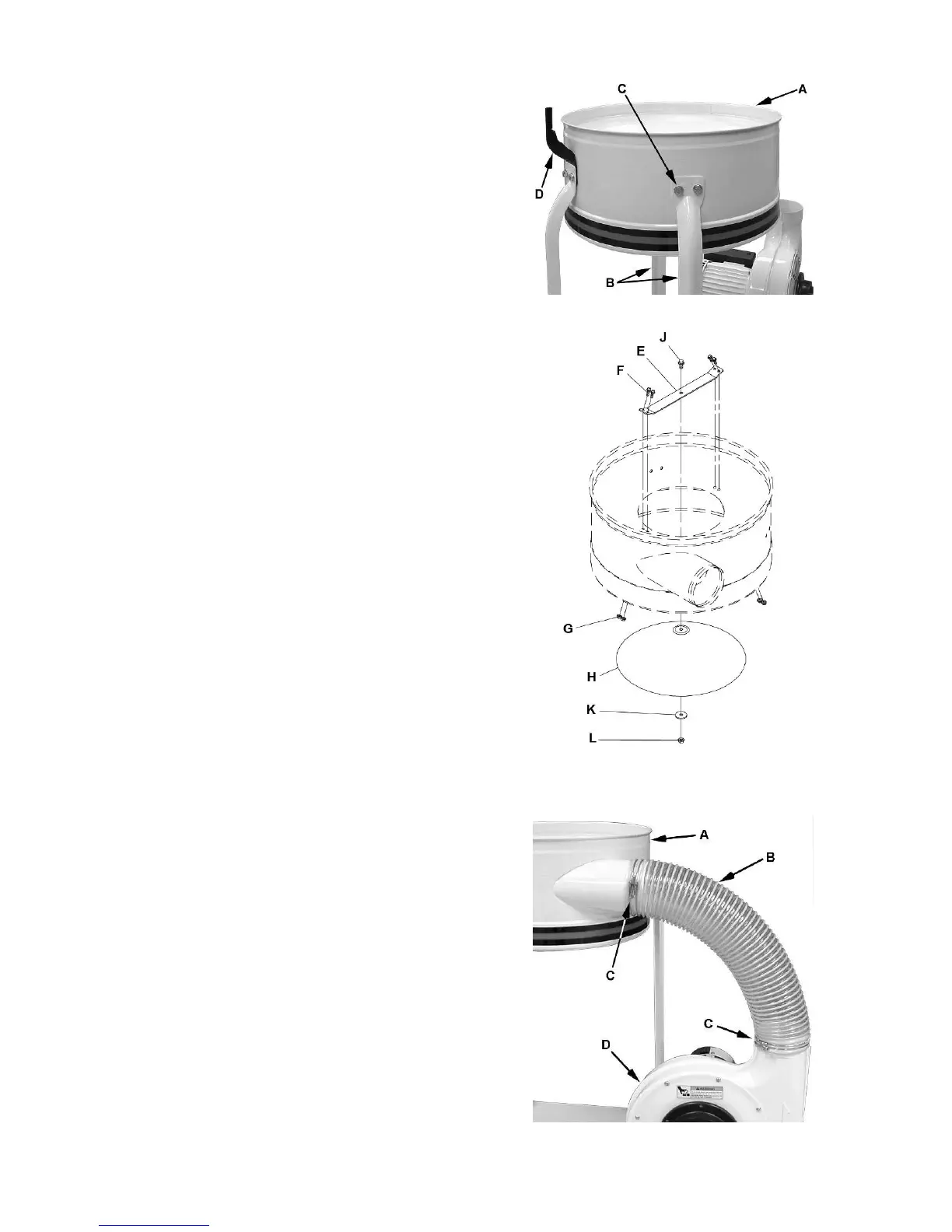

Figure 5
Figure 6
Figure 7
To Next Page
