Unpacking
The table below lists the shipping cartons that are
included with the models of the DC-1100VX Dust
Collector.
1. Locate your particular model and verify that you
have received all of the correct cartons.
2. Check contents of each carton against the ship-
ping content listings on this and the following
page.
3. Report any damage to your distributor.
4. Do not discard any shipping material until after
the dust collector has been assembled and is
running properly.
Base Unit
(SN 708657)
30M Filter Bag Kit
(SN 708636F)
5M Filter Bag Kit
(SN 708636MF)
Canister Filter Kit
(SN 708639B)
DC-1100VX-BK
x x
DC-1100VX-CK
x
x
DC-1100VX-5M
x
x
Table – DC-1100VX Dust Collector cartons
Hardware Bag for Base Unit
(SN DC1100-HP)
16 – M8 x 16 Hex Cap Screws (K)
22 – M8 Flat Washers (L)
08 – M6 x 12 Pan Head Flange Screws (M)
06 – M8 Hex Nuts (N)
Base Unit Hardware
Hardware Bag for Cone Assembly
(SN DC1100-HP2)
1 – M8 x 16 Hex Cap Screw (O)
1 – M8 Flat Washer (P)
1 – M8 Hex Nut (R)
4 – M6 x 12 Hex Cap Screws (S)
4 – M6 Hex Nuts (T)
Cone Assembly Hardware
Shipping Content
Base Unit
(SN 708657)
1 – Housing (A)
2 – Hose Clamps (B)
1 – Hose (C)
1 – Impeller (Motor/Fan Assembly) (D)
1 – Inlet Port (E)
1 – Impeller Cover (F)
3 – Support Legs (G)
1 – Base (H)
4 – Casters (J)
1 – Cone (K)
1 – Support Bracket (L)
1 – Owner's Manual (not shown)
1 – Warranty Card (not shown)
1 – Hardware Bag, Base Unit (SN DC1100-HP)
1 – Hardware Bag, Cone Assly. (SN DC1100-HP2)

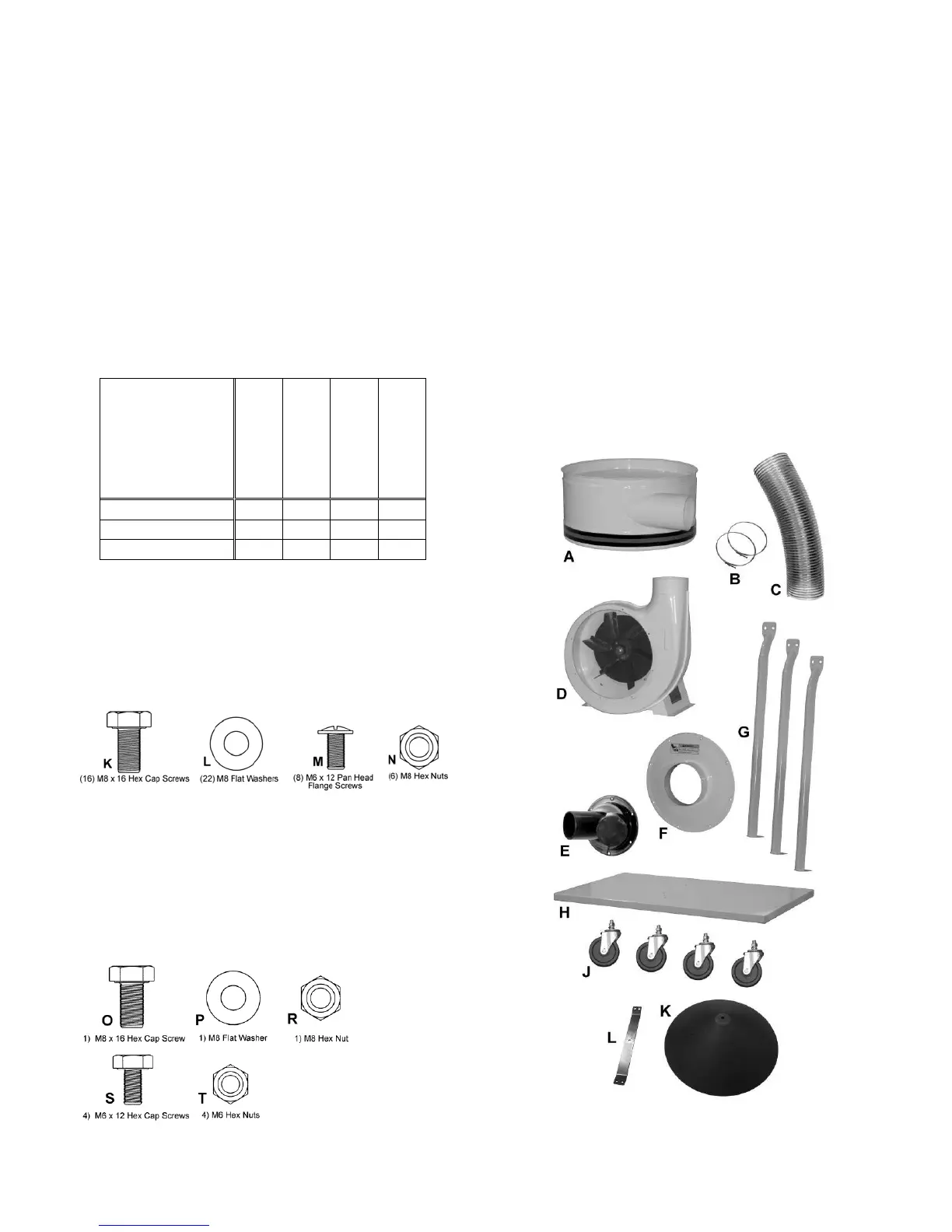

Base Machine Shipping Contents
