12
Canister Kit Assembly
If you purchased Model DC-1200VX-CK1 or DC-1200VX-
CK3 Dust Collector, this section describes the assembly
and installation of the contents of the Canister Kit
(SN 708636F).

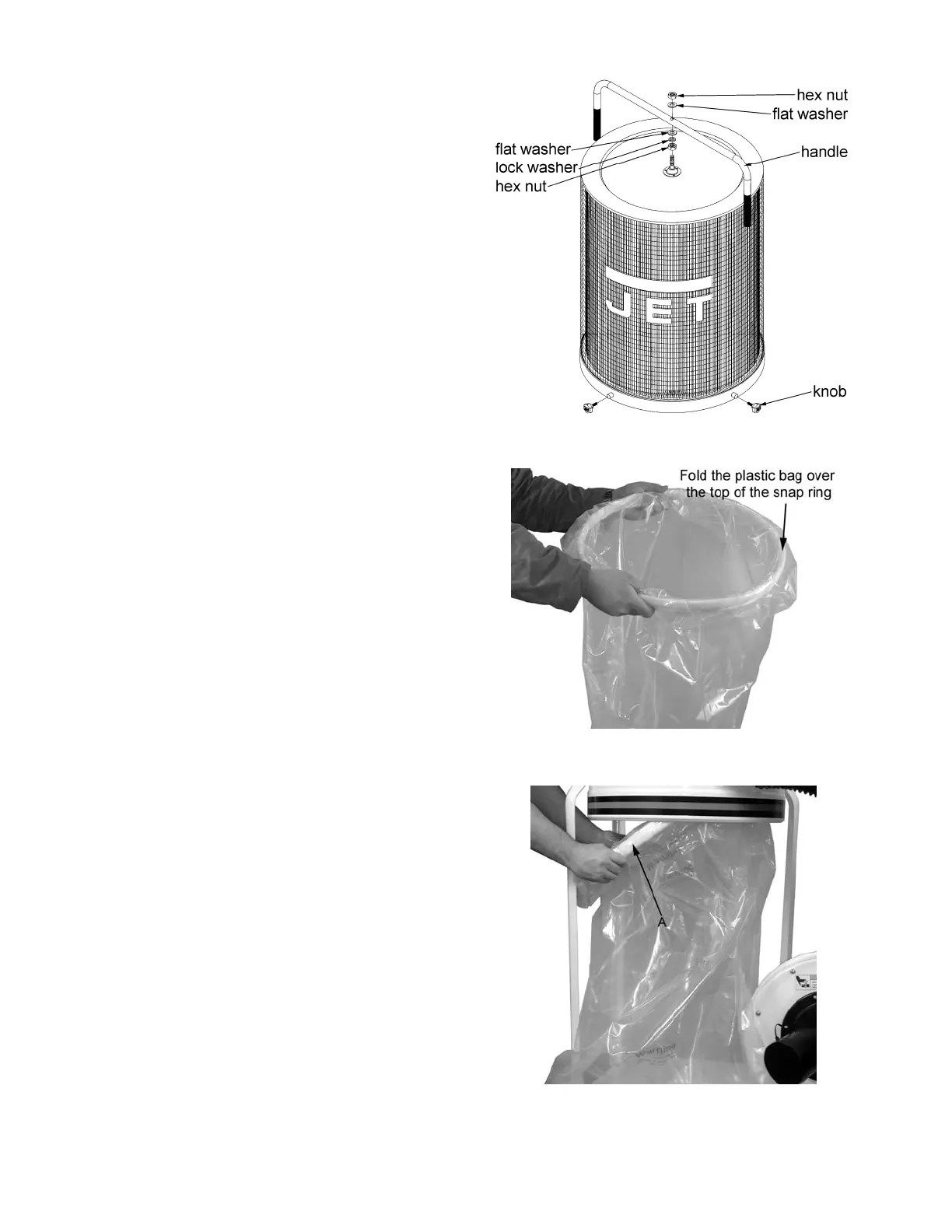

Canister Filter
1. Mount the handle onto the canister filter with two
M10 hex nuts, two M10 flat washers, and a M10 lock
washer (Figure 10).
2. Mount the canister filter on top of the collector
housing (A, Fig. 5) and tighten the knobs on the
canister filter (Figure 10).
Collector Bag
3. Place the ring over the top of the plastic bag and fold
over the bag approximately three inches, Figure 11.
4. Insert the snap ring (A, Fig. 12) of the collector bag
into the bottom of the housing at an angle.
5. Pull down on the ring to make sure it “seats” in the
housing.
Note: make sure the snap ring “snaps” into place
in the housing, and also that the plastic bag hangs
down approximately 3” so that there are no air
leaks.
Figure 10
Figure 11
Figure 12
