7
Unpacking
The table below lists the shipping cartons that are
included with the various models of the DC-1200 Dust
Collector.
1. Locate your particular model and verify that you
have received the all the correct cartons.
2. Check contents of each carton against the ship-ping
content listings on this and the following page.
3. Report any damage to your distributor.
4. Do not discard any shipping material until after the
dust collector has been assembled and is running
properly.
Base Unit
(SN 710701)
Base Unit
(SN 710703)
30M Filter Bag
Kit (SN
708636F)
Canister Filter
Kit (708639B)
DC-1200VX-BK1
x x
DC-1200VX-CK1
x x
DC-1200VX-BK3
x x
DC-1200VX-CK3
x x
Table – DC-1200VX Dust Collector cartons

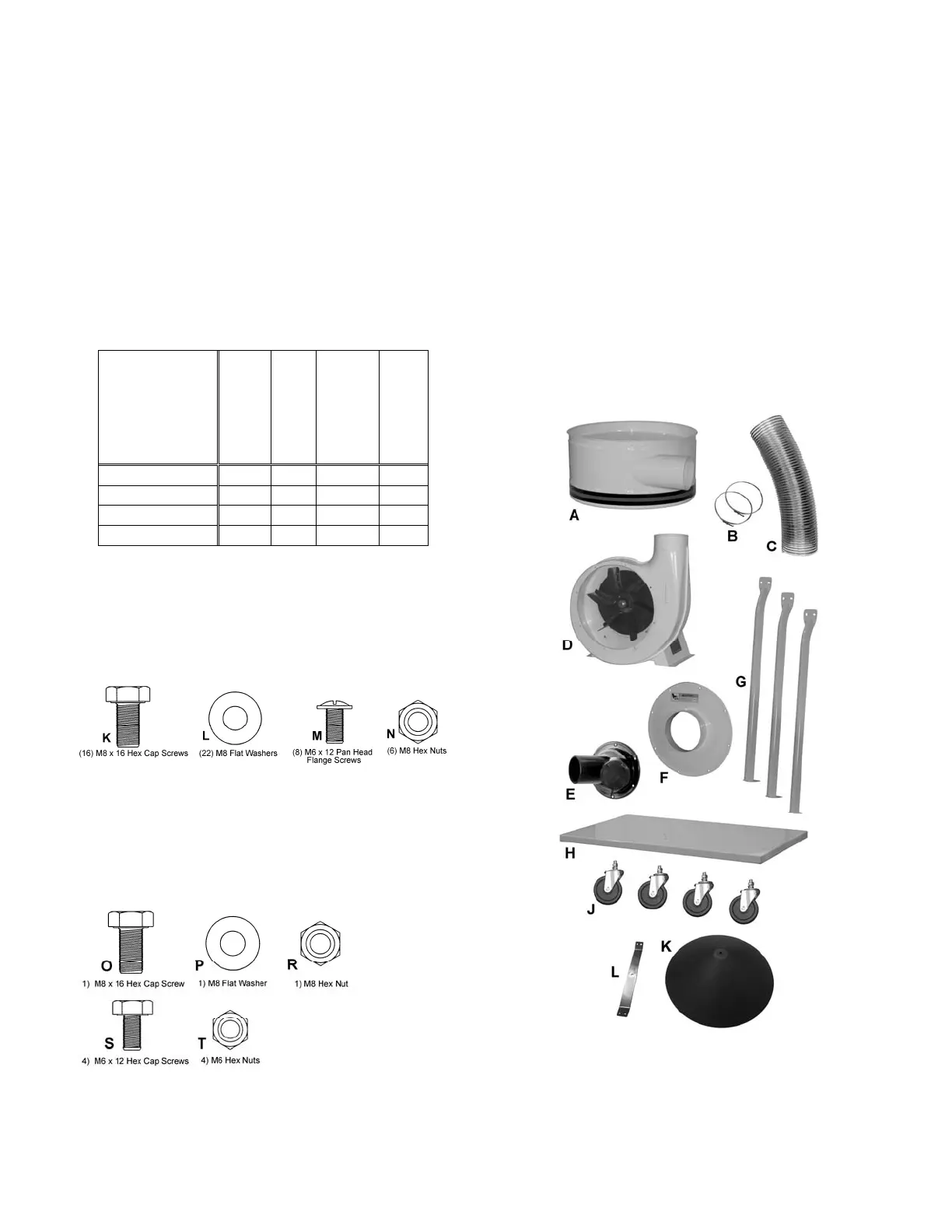

Hardware Bag for Base Unit (SN DC1100-HP)
16 – M8 x 16 Hex Cap Screws (K)
22 – M8 Flat Washers (L)
08 – M6 x 12 Pan Head Flange Screws (M)
06 – M8 Hex Nuts (N)
Base Assembly Hardware
Hardware Bag for Cone Assembly
(SN DC1100-HP2)
1 – M8 x 16 Hex Cap Screw (O)
1 – M8 Flat Washer (P)
1 – M8 Hex Nut (R)
4 – M6 x 12 Hex Cap Screws (S)
4 – M6 Hex Nuts (T)
Cone Assembly Hardware
Shipping Content
Base Units
(SN 710701 and 710703)
1 – Housing (A)
2 – Hose Clamps (B)
1 – Hose (C)
1 – Impeller (Motor/Fan Assembly) (D)
1 – Inlet Port (E)
1 – Impeller Cover (F)
3 – Support Legs (G)
1 – Base (H)
4 – Casters (J)
1 – Owner's Manual (not shown)
1 – Warranty Card (not shown)
1 – Hardware Bag Base Assly. (SN DC1100-HP)
1 – Hardware Bag, Cone Assly. (SN DC1100-HP2)
Base Machine Shipping Contents
To Next Page
