5

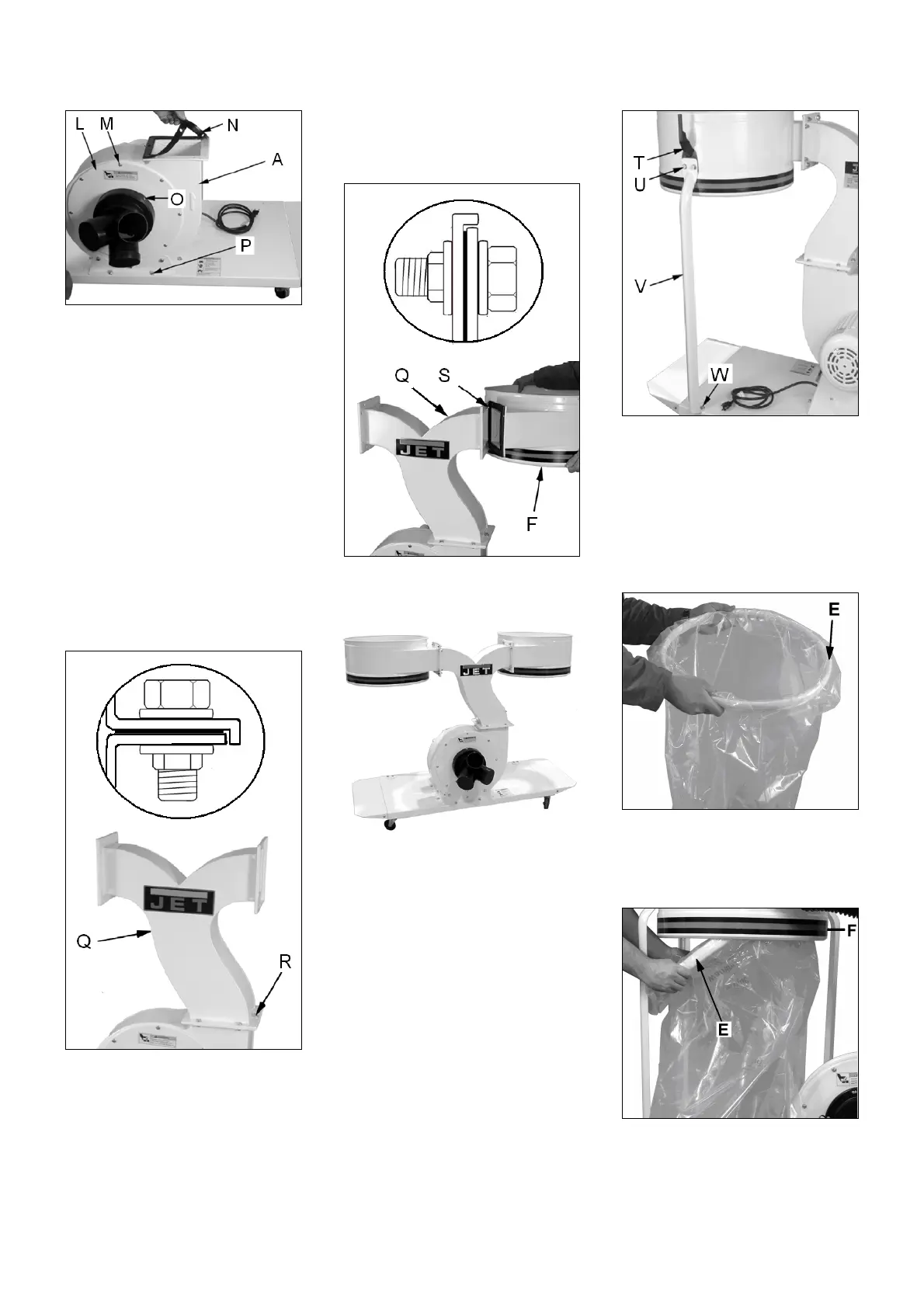

Fig 3
Attach inlet guard (L) to fan housing
using 8 pan head screws (M).
Press the inlet port and secure with
provided screw (O).
Place the lower gasket (N) on the fan
housing.
Attention:
To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.
Connector Tube:
Place the connector tube (Q, Fig 4) on
the fan housing and attache with 6 hex
screws, washers and nuts (R).
Fig 4
Connector Housing:
Place an upper gasket (S, Fig 5) and
attach bag housing (F) with hex cap
screws, washers and nuts.
Fig 5
Refere to Fig 6 for correct assembly.
Fig 6
Support bracket:
Attach support bracket (V, Fig 7) to
the base with 2 hex head screws (W)
and washers.
Fig 7
Insert bag hanger bracket (T) and
attach with 2 hex head screws (U) and
washers.
Collector bag:
Fold the plastic bag over the top of the
snap ring (E, Fig 8).
Fig 8
Insert the snap ring (E) of the collector
bag into the bottom of the housing at
an angle. Pull down until it engages in
the grove (F, Fig 9)
Fig 9
