9

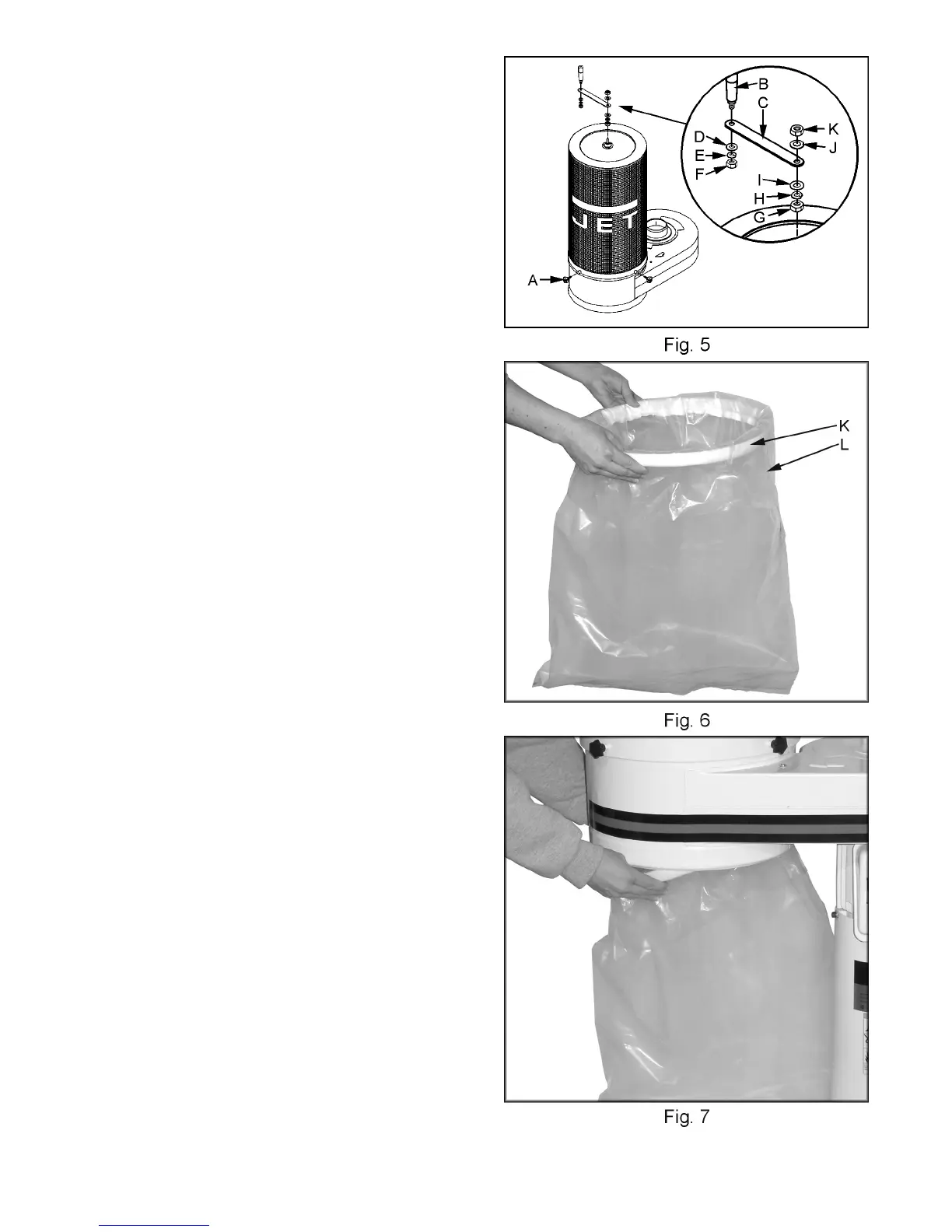

7. Place the canister filter so that it fits snugly
over the housing and tighten the four knobs
(A, Fig. 5).
8. Mount handle (B, Fig. 5) to the arm (C, Fig.
5) with a M8 flat washer (D, Fig. 5), M8 lock
washer (E, Fig. 5), and a M8 hex nut (F, Fig.
5).
9. Thread a M10 hex nut (G, Fig. 5) onto the
threaded rod found on top of the canister
filter followed by a M10 lock washer (H, Fig.
5), and M10 flat washer (I, Fig. 5).
10. Mount the arm (C, Fig. 5) to the threaded
rod on top of canister with one M10 flat
washer (J, Fig. 5), and a M10 hex nut (K,
Fig.5).
11. Place snap ring (K, Fig. 6) over the top of
plastic bag (L, Fig. 6) and fold over the bag
approximately three inches.
12. Insert the snap ring of the collector bag into
the bottom of the housing at an angle, see
Figure 7.
13. Pull down on the ring to make sure it “seats”
in the housing.
Note: make sure the snap ring “snaps” into
place in the housing, and also that the
plastic bag hangs down approximately 3” so
that there are no air leaks.
