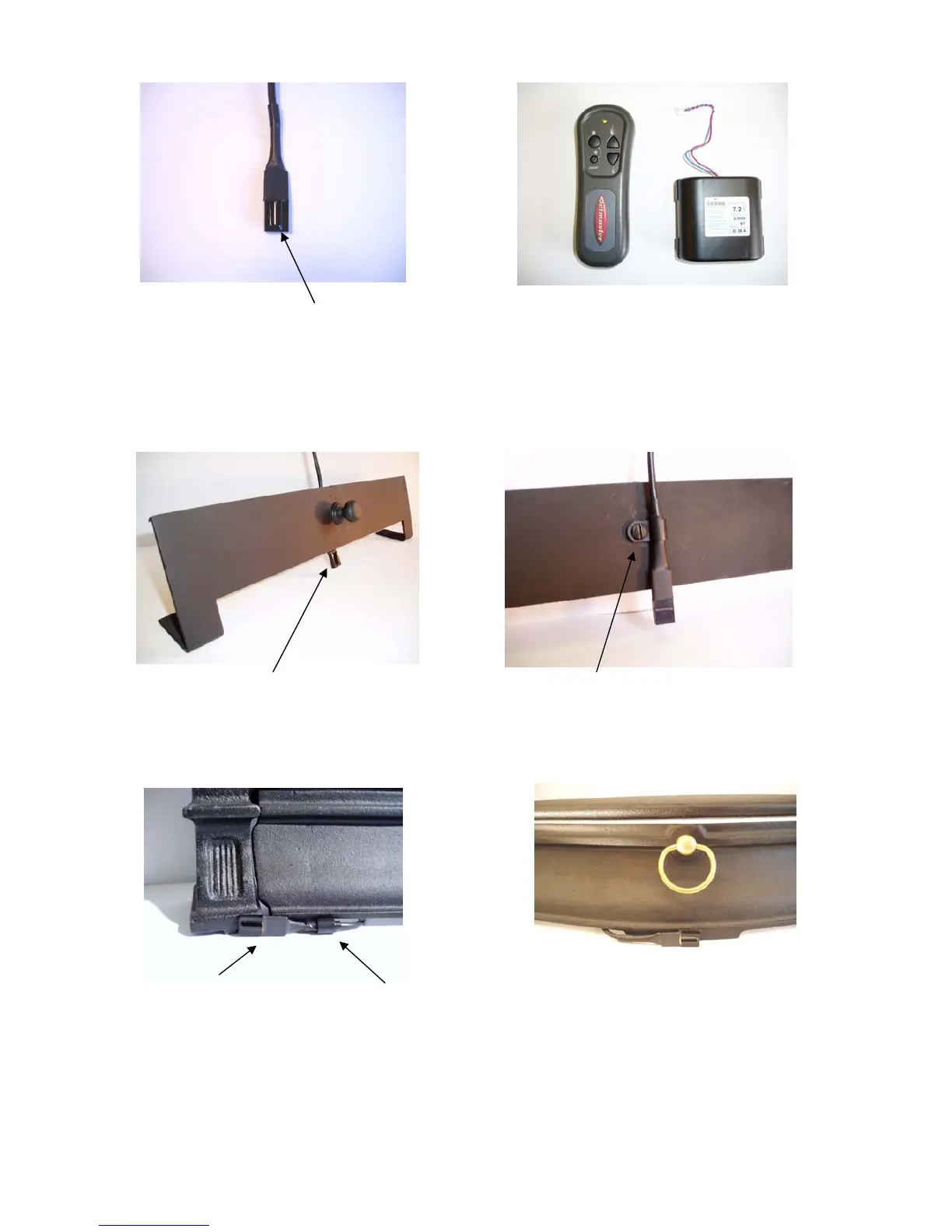

The “Shiny bulb shaped surface” Fig. 8 must face forward as this is the surface that picks up the in-

frared signal.

“shiny bulbous surface” must face forward

Fig. 8

Fig. 9a

Sensor mounted to Regency Front

using double sided tape

Remote Control Handset

and Fire Battery

Fig. 11b

P Clip Sensor

P clip can be attached to rear of ash pan

cover using ash pan knob screw

Sensor hangs down from back of ash pan

cover (shiny side must face forward)

Fig. 11a

Sensor mounted to hearth with P clip which is

hidden by ash pan cover. Alternatively sensor can

be mounted to front leg using double sided tape.

Fig. 10a

Fig. 10b
