18
THIS BURNER MUST BE SECURELY FIXED TO THE FIREBOX THROUGH THE FRONT LEGS.
NOTE :- For clarity of the coal lay diagrams the fronts are not shown fitted to the burner.
The diagrams shown are of the manual controlled burner.

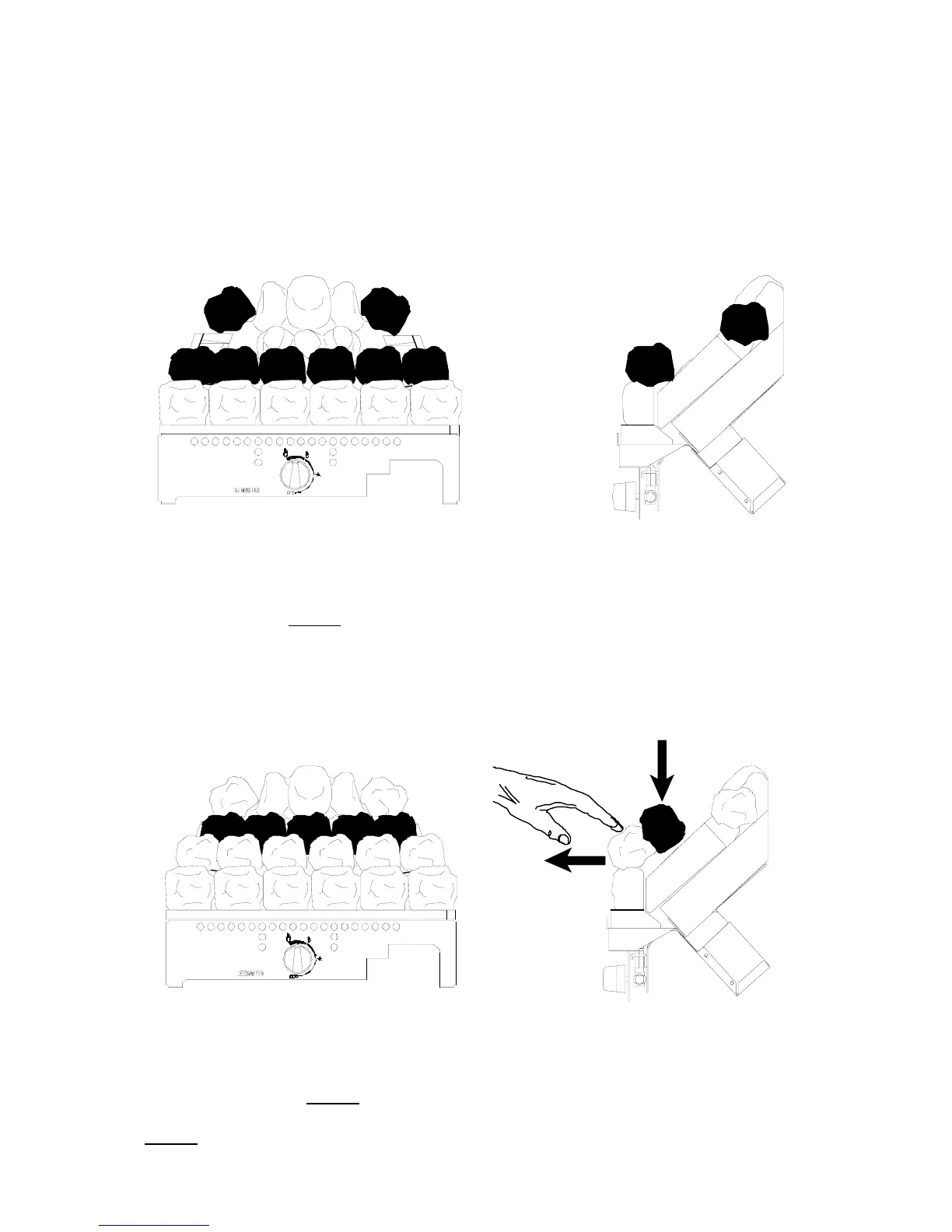

Lay a first row of :-
16” - 6 coals + 2 in recess 18” - 7 coals + 2 in recess
Position these coals behind the front row of coals attached to the front coal bed. These coals should
bridge between the front row of coals and the rear coal bed. Then, place 1 coal each side in the
recess at the top of each side support.
Lay a second row of :-
16” - 5 coals 18” - 6 coals
This row of coals must lie behind the first row of coals previously laid and rest on the rear coal bed.
To achieve this it will be necessary to hold the first row of coals forward. When the second row of
coals are in place the first row of coals should now bridge between the front row of coals attached to
the front coal bed and this second row of coals. The first row of coals must not be pushed too far
forward so as to touch the rear of the fire front.
Lay a final row of :-
16” - 4 coals 18” - 4 coals
This row of coals should lay behind the second row of coals previously laid. To achieve this it will be
necessary to hold the second row of coals forward so as this final row of coals can locate in the
valleys behind the second row of coals.
