Jetmaster Universal 500 - Page 11

Note: Adjacent combustible side walls must be located a minimum of 300mm from the fireplace opening.
min 300
100
min
100
min
max. recess = 100mm
45°
Surround Leg
Jetmaster Firebox

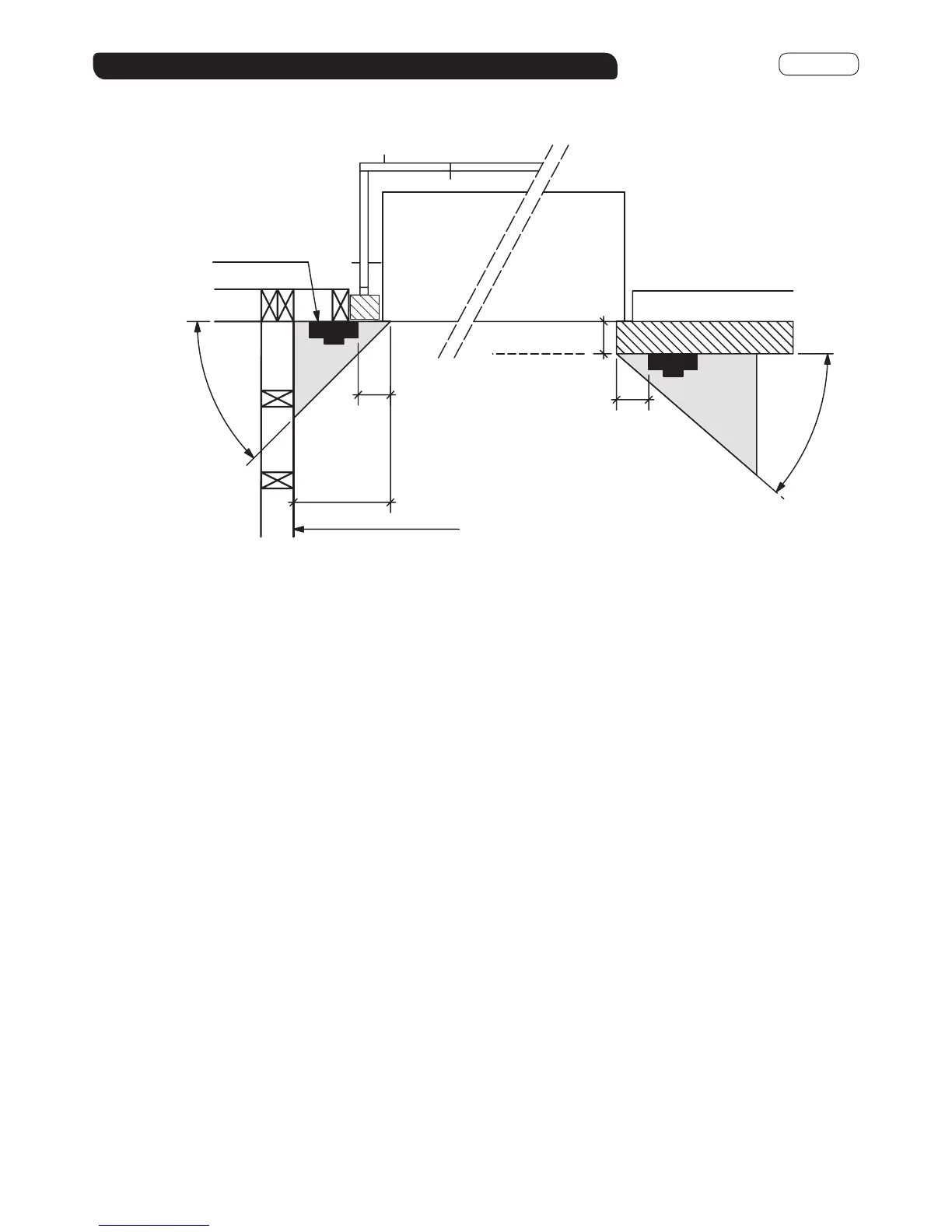

Fig. 22
Drawing Not To Scale
Combustible Side Wall
40°
CLEARANCE TO COMBUSTIBLE MANTELS (cont.)
5.TW.1K
