Jets GWT800PL - Dimension Drawings

Grey Water Interface Unit 12L
Tel. +47 70 03 91 00
www.jetsgroup.com
Product No. GWT800PL
Doc. Rev.: 2 (2019-06-17)
2

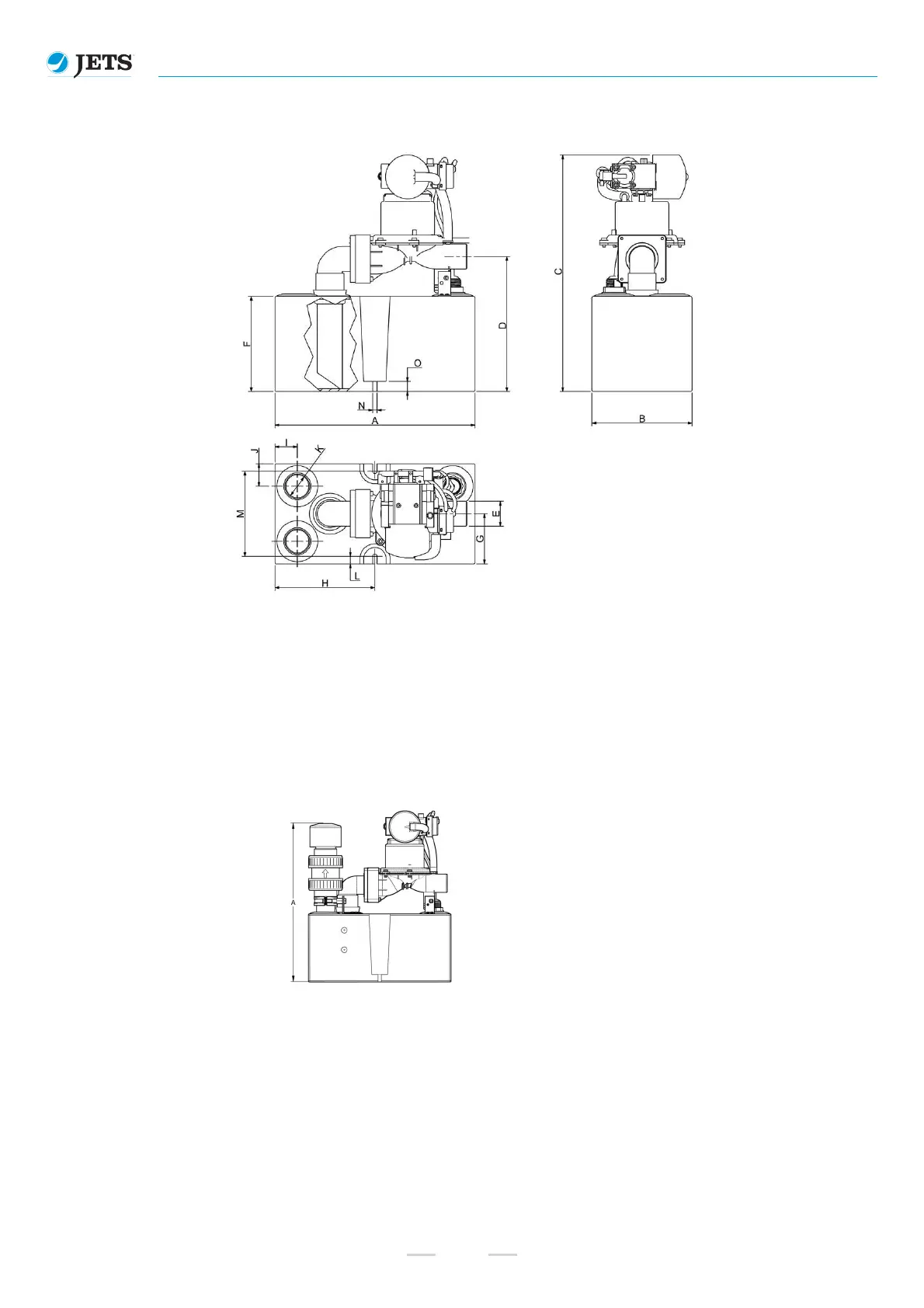

Dimension Drawings
A
.............................................................................................
400mm
B
.............................................................................................
200mm
C
.............................................................................................
473mm
D
.............................................................................................
270mm
E
..................................................................................................
Ø50
F
.............................................................................................
190mm
G
.............................................................................................
100mm
H
.............................................................................................
200mm
I
.................................................................................................
45mm
J
................................................................................................
45mm
K
..................................................................................................
Ø50
L
................................................................................................
15mm
M
.............................................................................................
170mm
N
.................................................................................................
9mm
O
...............................................................................................
20mm
A
.............................................................................................
470mm
Note: Installation is to occur within the water barrier in line with local/industry requirements and in compliance with all local, state and federal wet
room requirements.
Note: the Air/Overflow Valve shown in the dimension drawing may not be included in the tank delivery, but may be purchased as an accessory.
