Jets VFD Valve - Dimension Drawings; Key Dimensional Labels

VFD Valve, Piston Complete
Tel. +47 70 03 91 00
www.jetsgroup.com
Product No. 054100973
Doc. Rev.: 8 (2022-03-04)
2

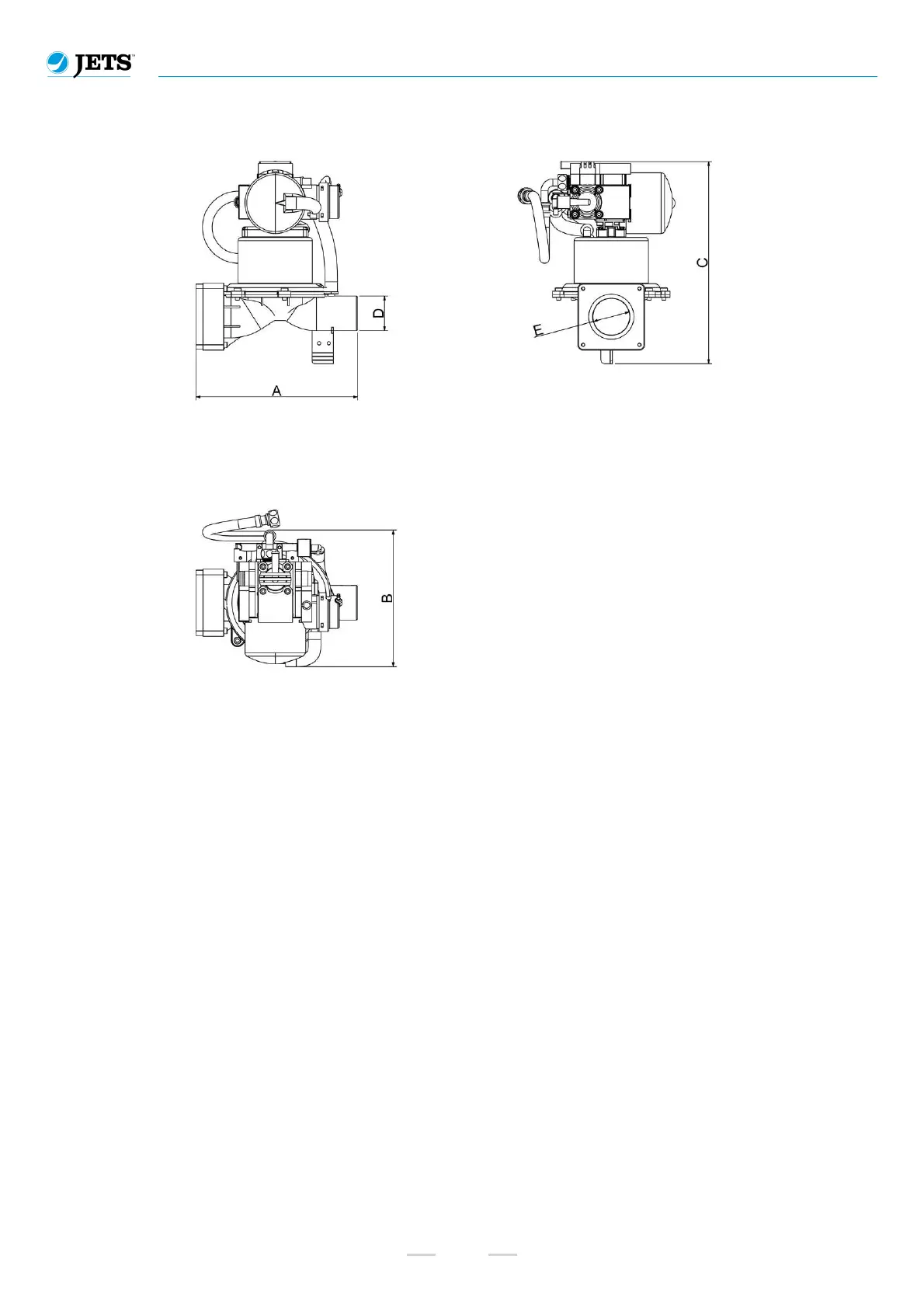

Dimension Drawings
A
.............................................................................................
235mm
B
.............................................................................................
195mm
C
.............................................................................................
290mm
D
...............................................................................................
50mm
E
..................................................................................................
Ø60
